page 16 Setup and starting up

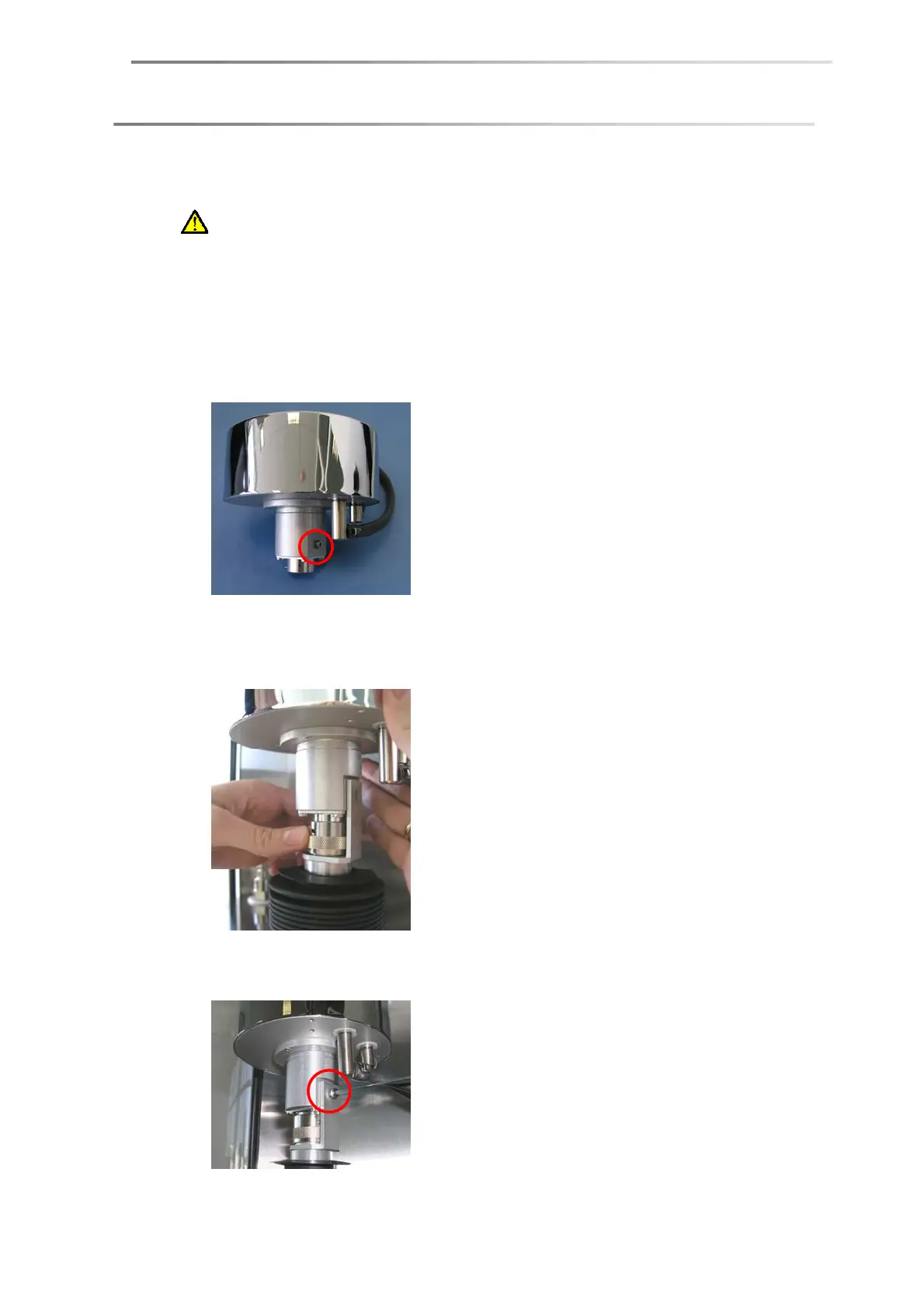

3.5 Assembling a thermostat jacket (optional)
Unplug the K11 from the mains before assembly.
1. If you have ordered the optional TP0512 external temperature sensor: Attach the
temperature sensor bracket to the thermostat jacket before fitting the vessel
(
Ö p. 18).
2. Remove the screw fitted to the shaft of the thermostat jacket (2.5 mm hexagon
socket wrench).
3. Plug the multi-pin plug on the bottom of the thermostat jacket into the socket on the
sample platform. Hold the thermostat jacket firmly and turn the coupling ring
anticlockwise as far as the stop.
4. Fix the shaft of the thermostat jacket to the angle bracket with the help of the
previously removed screw.
