16 ENGINE 160
305582-11
–

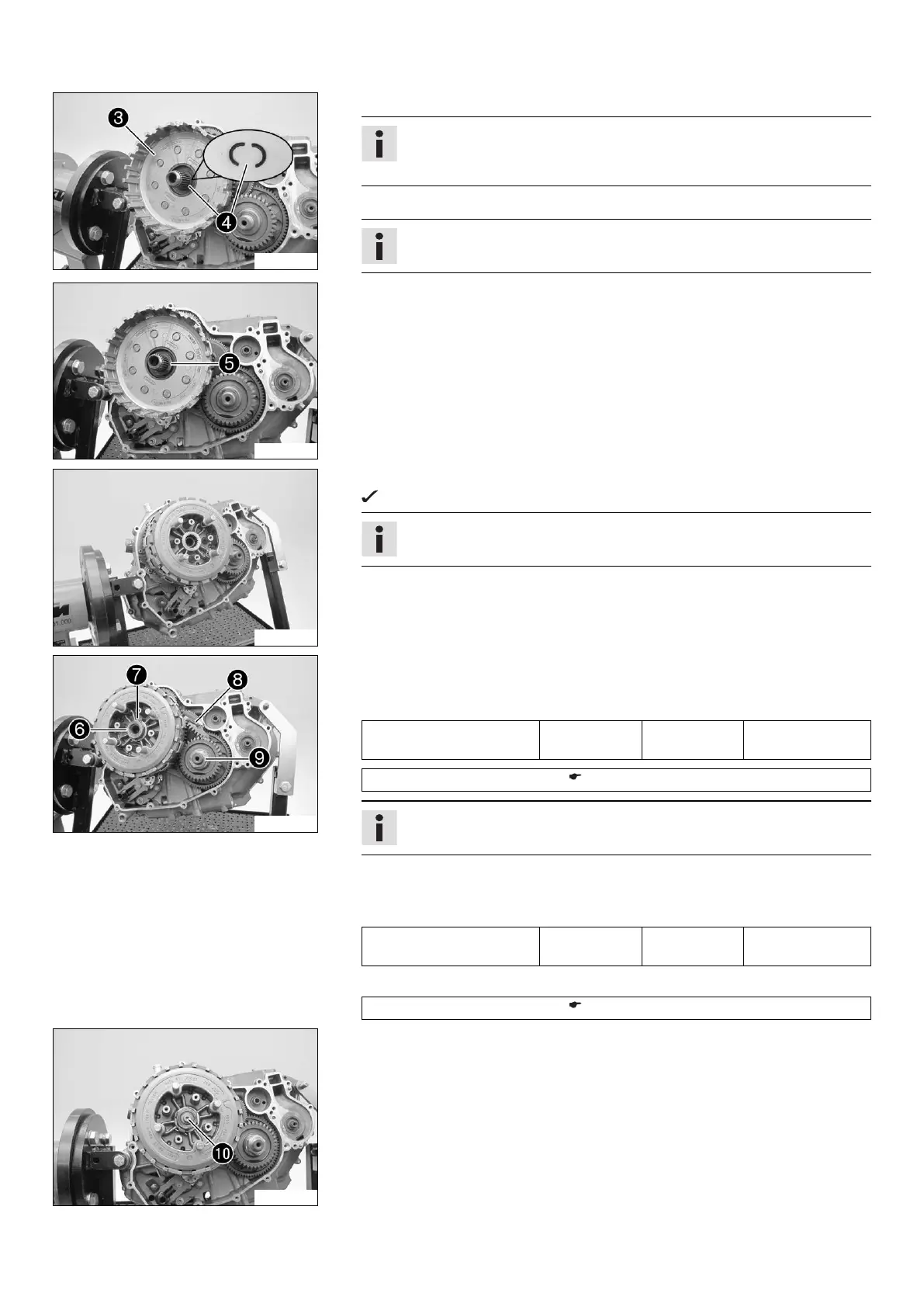

Mount clutch basket
.
Info
Turn the clutch basket and oil pump gear wheels backwards and forwards
slightly to help them mesh more easily.
–
Mount half washers
with the sharp edge facing outward.
Info
Grease the half washers to ease assembly.
305581-11
–
Position stepped washer
with the recesses toward the half washers.
305580-10
– Insert the antihopping clutch in the clutch basket.
The uppermost clutch facing disc is offset by one tooth.
Info
If necessary, turn the main shaft a little to ease access.
305584-10
–
Mount the new lock washer
with nut
.
–
Lock the clutch basket and primary gear using special tool
and tighten the nut.
Guideline
Nut, inner clutch hub M20x1.5 100 Nm
(73.8 lbf ft)
Loctite
®
243™
Gear segment (75029081000) ( p. 236)
Info
Make sure that the crankshaft is not blocked.
– Secure the nut with the lock washer.
–
Mount and tighten nut
.
Guideline
Nut, primary gear M20LHx1.5 90 Nm
(66.4 lbf ft)
Loctite
®
243™
– Remove the special tool.
Gear segment (75029081000) ( p. 236)
305578-11
–
Mount pressure piece
.
