16 ENGINE 165
302601-10

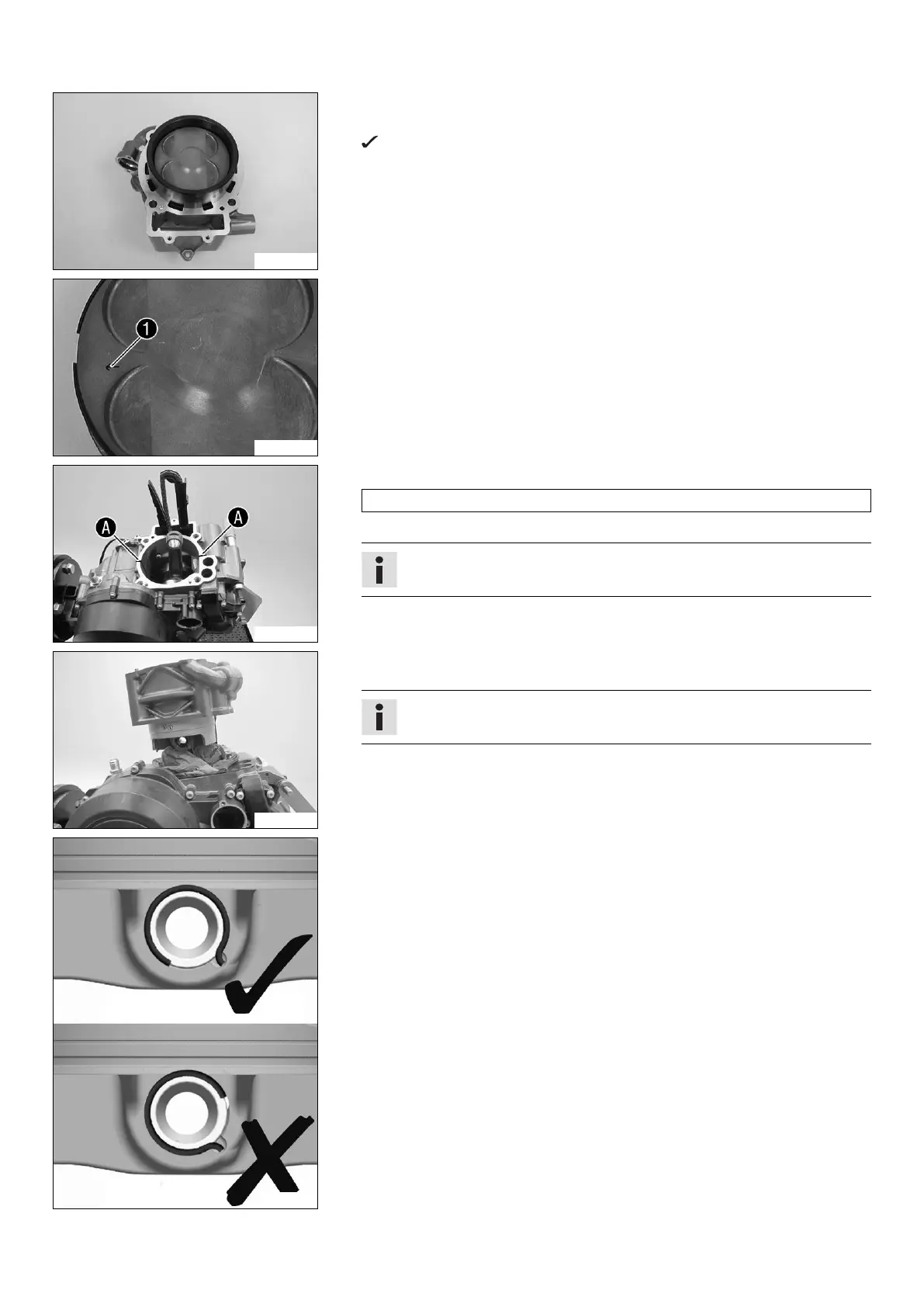

– Position the piston on the cylinder using the special tool.
– Push the piston carefully into the cylinder from above.
The piston rings should not become caught; otherwise, they may be damaged.
302599-10
–
Ensure that piston marking
faces the outfeed side.
305553-10
–
Apply a thin layer of sealing compound in area
.
Loctite
®
5910
– Place the cylinder base gasket on.
Info
Make sure the grooved pins are seated correctly.
305554-10
– Cover the engine case opening with a cloth. Thread the timing chain through the
chain shaft. Mount the piston pin.
Info
For clarity, the following steps are illustrated using a disassembled piston.
400366-10
– Position the piston pin retainer.
