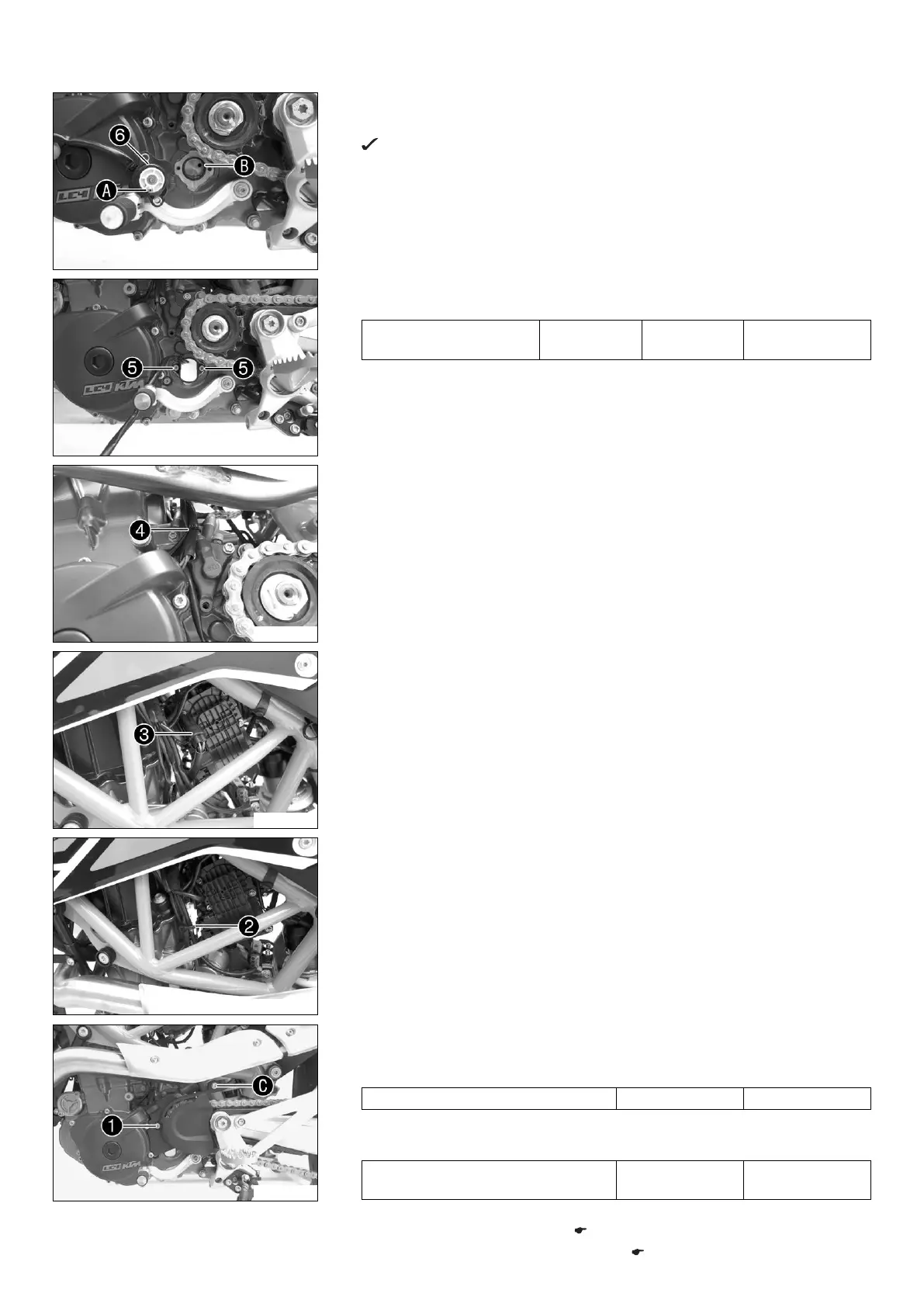

18 SHIFT MECHANISM 176

G00777-10

–

Lubricate O-ring



of the new gear position sensor.

– Position the gear position sensor.



engages in drill hole



G00776-10

–

Mount and tighten screws



Guideline

Screw, gear position sen-

sor

M5x16 5 Nm

(3.7 lbf ft)

Loctite

243™

G00775-10

–

Secure the wiring harness with cable binder



G00774-10

–

Connect plug-in connector



– Route the cable without tension.

G00773-10

–

Secure the connector with cable binder



G00772-11

– Position the engine sprocket cover.

–

Mount and tighten screw



Guideline

Remaining screws, chassis M6 10 Nm (7.4 lbf ft)

–

Mount and tighten screw



Guideline

Remaining screws, chassis M8 25 Nm

(18.4 lbf ft)

Finishing work

– Program the gear position sensor. ( p. 177)

– Remove the motorcycle from the lift stand. ( p. 11)
