6 FORK, TRIPLE CLAMP 20
202315-10

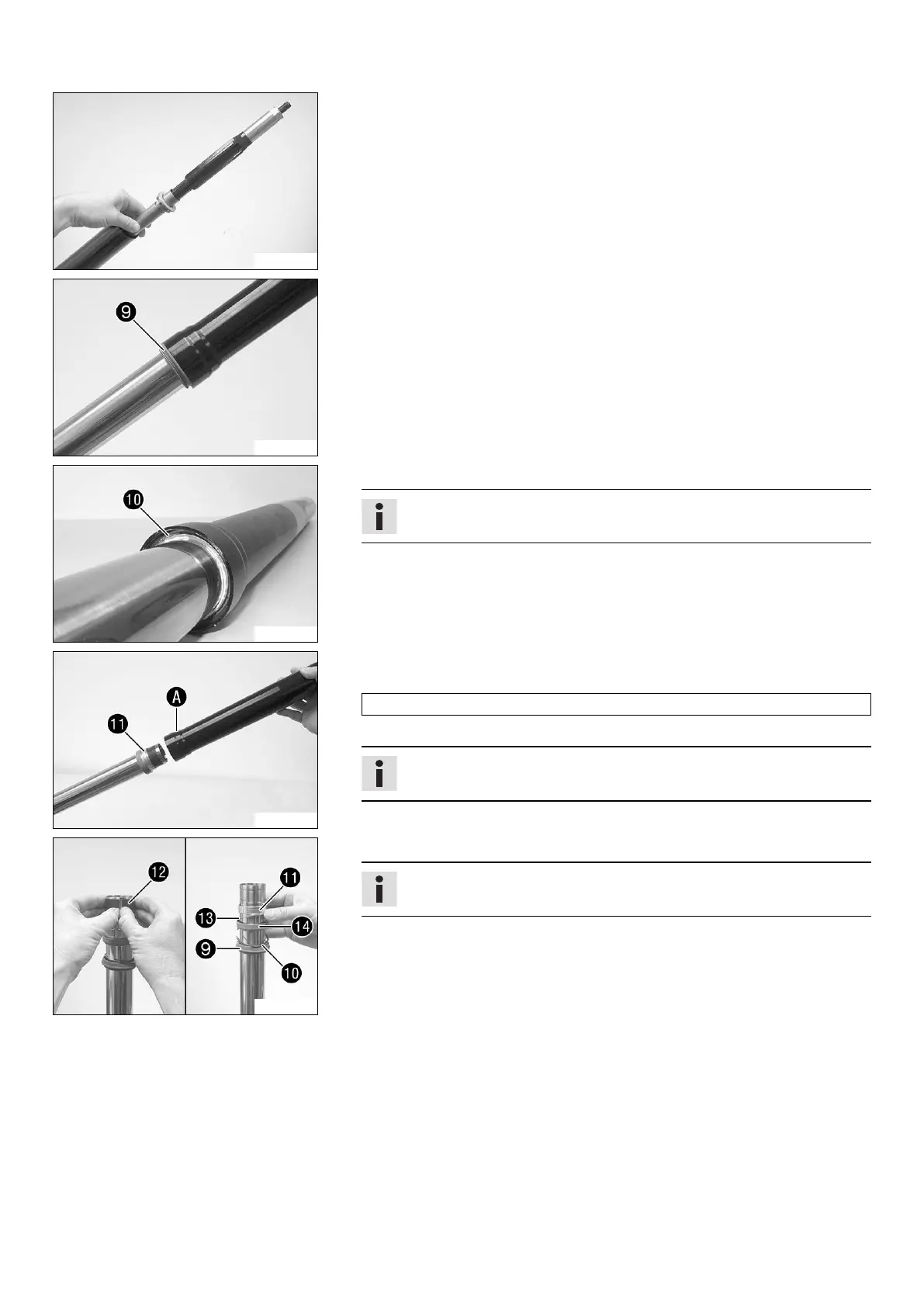

– Remove the cartridge.
202115-13
–
Remove dust boot
.
202005-12
–
Remove lock ring
.
Info
The lock ring has a beveled end where a screwdriver can be applied.
202016-12
–
Heat up the outer tube in area
of the lower sliding bushing.
Guideline
50 °C (122 °F)
– Pull the outer tube from the inner tube with a jerk.
Info
The lower sliding bushing
must be pulled from its bearing seat.
202104-12
–
Remove the upper sliding bushing
.
Info
Without using a tool, carefully pull the stack apart by hand.
–
Take off the lower sliding bushing
.
–
Take off support ring
.
–
Take off seal ring
.
–
Take off lock ring
.
–
Take off dust boot
.
– Unclamp the fork leg.
