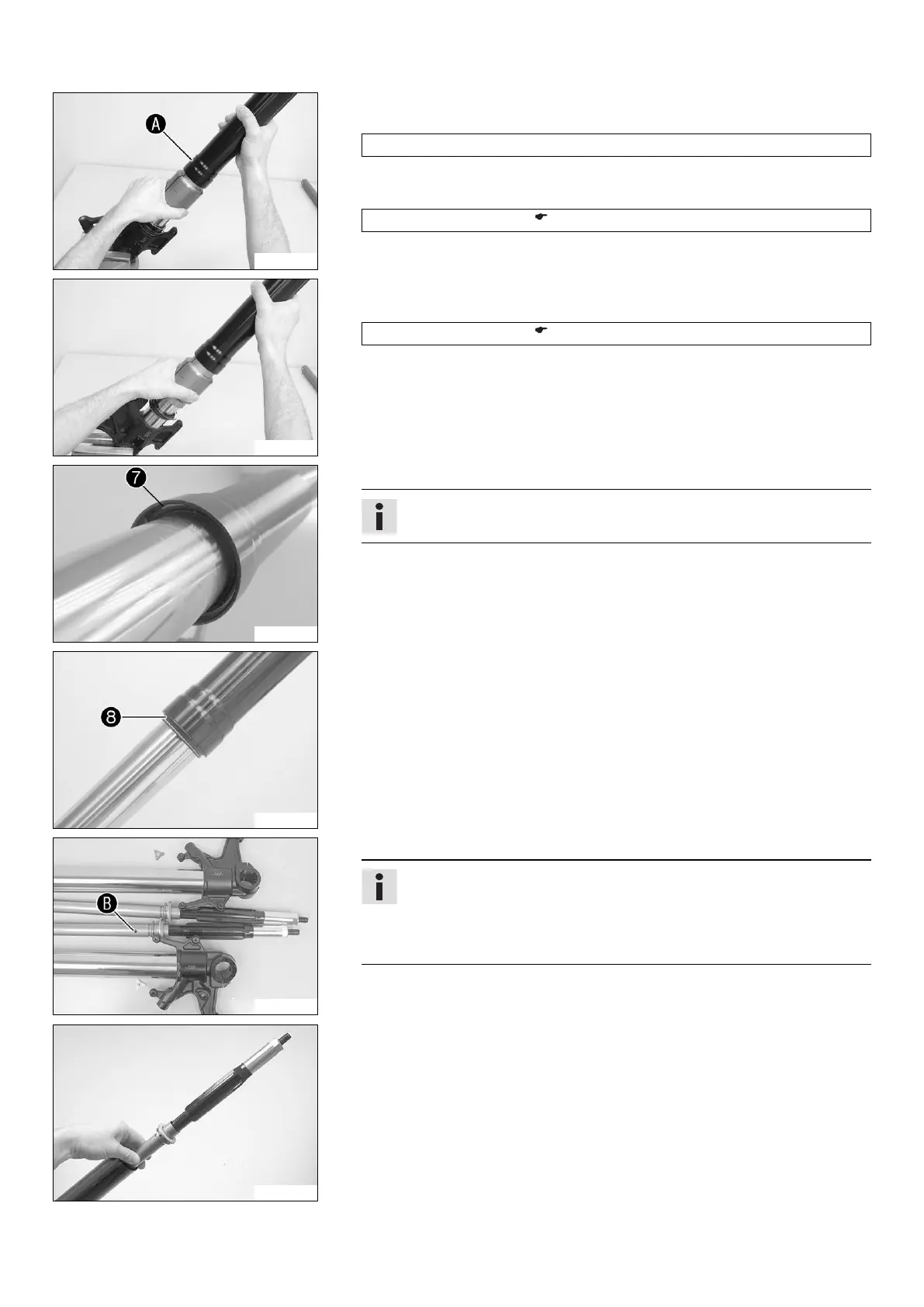

6 FORK, TRIPLE CLAMP 23
201324-10
–
Heat up the outer tube in area
of the lower sliding bushing.
Guideline
50 °C (122 °F)
– Slide the outer tube onto the inner tube.
– Hold the lower sliding bushing with the longer side of the special tool.
Mounting tool (T14040S) ( p. 240)
– Push the sliding bushing all the way into the outer tube.
201325-10
– Position the support ring.
– Hold the seal ring with the shorter side of the special tool.
Mounting tool (T14040S) ( p. 240)
– Push the seal ring and support ring all the way into the outer tube.
200656-13
–
Mount lock ring
.
Info
The lock ring must engage audibly.
200655-13
–
Install dust boot
.
202316-10
– Assemble related individual components accordingly.
Info
Compression damping side: cartridge with additional oil holes
, white
adjuster, axle clamp marked L.
Rebound damping side: cartridge without additional oil holes, red adjuster,
axle clamp marked R.
202315-10
– Mount cartridge.
