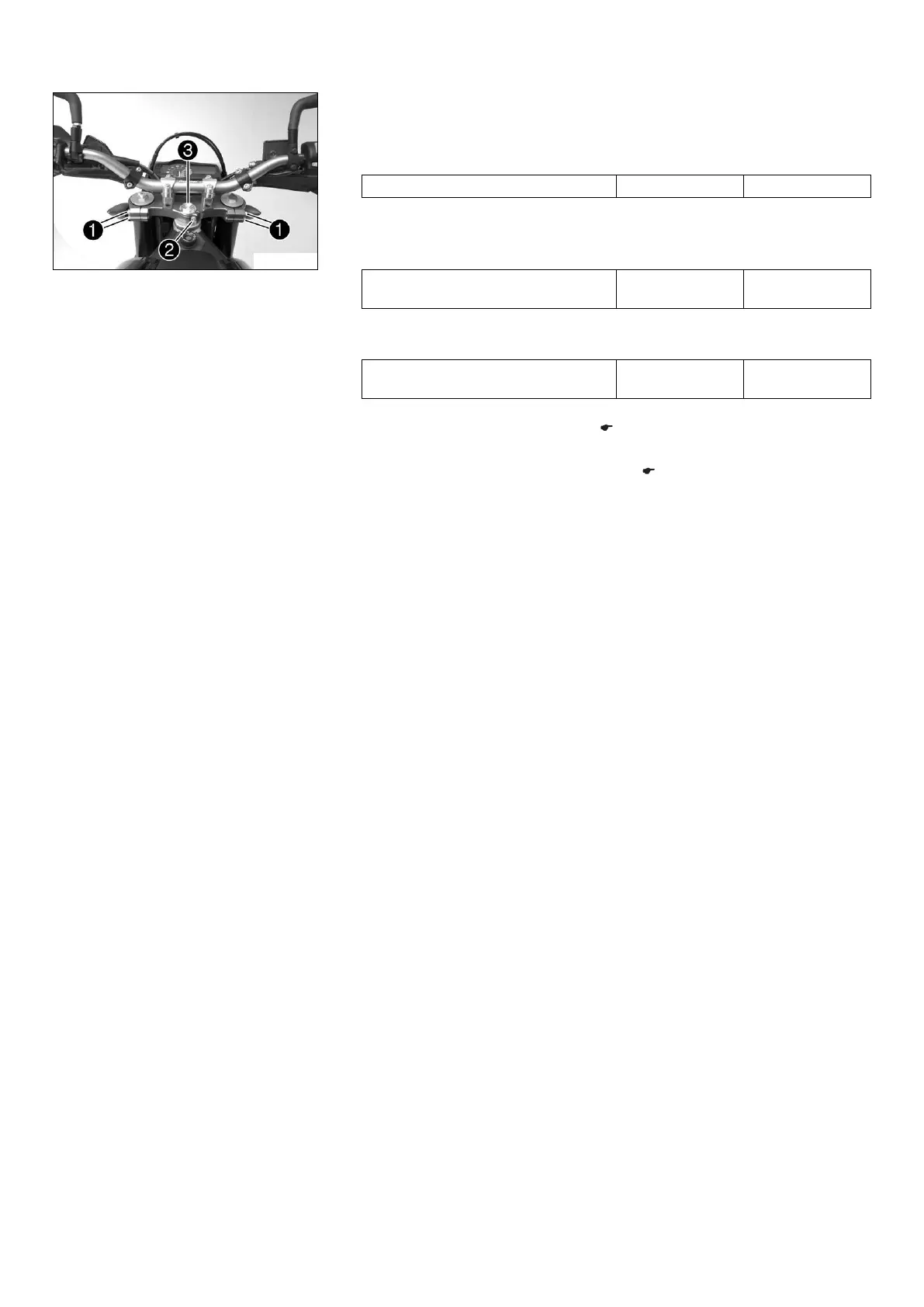

6 FORK, TRIPLE CLAMP 27
G00790-10
Main work
Loosen screws
. Remove screw
.
Loosen and retighten screw
.
Guideline
Screw, top steering head M20x1.5 12 Nm (8.9 lbf ft)
Using a plastic hammer, tap lightly on the upper triple clamp to avoid strains.
Fully tighten screw
.
Guideline
Screw, top triple clamp M8 17 Nm
(12.5 lbf ft)
Mount and tighten screw
.
Guideline
Screw, steering stem M8 20 Nm
(14.8 lbf ft)
Finishing work
Check the steering head bearing play. ( p. 26)
Release the rear of the vehicle.
Remove the motorcycle from the work stand. ( p. 12)
