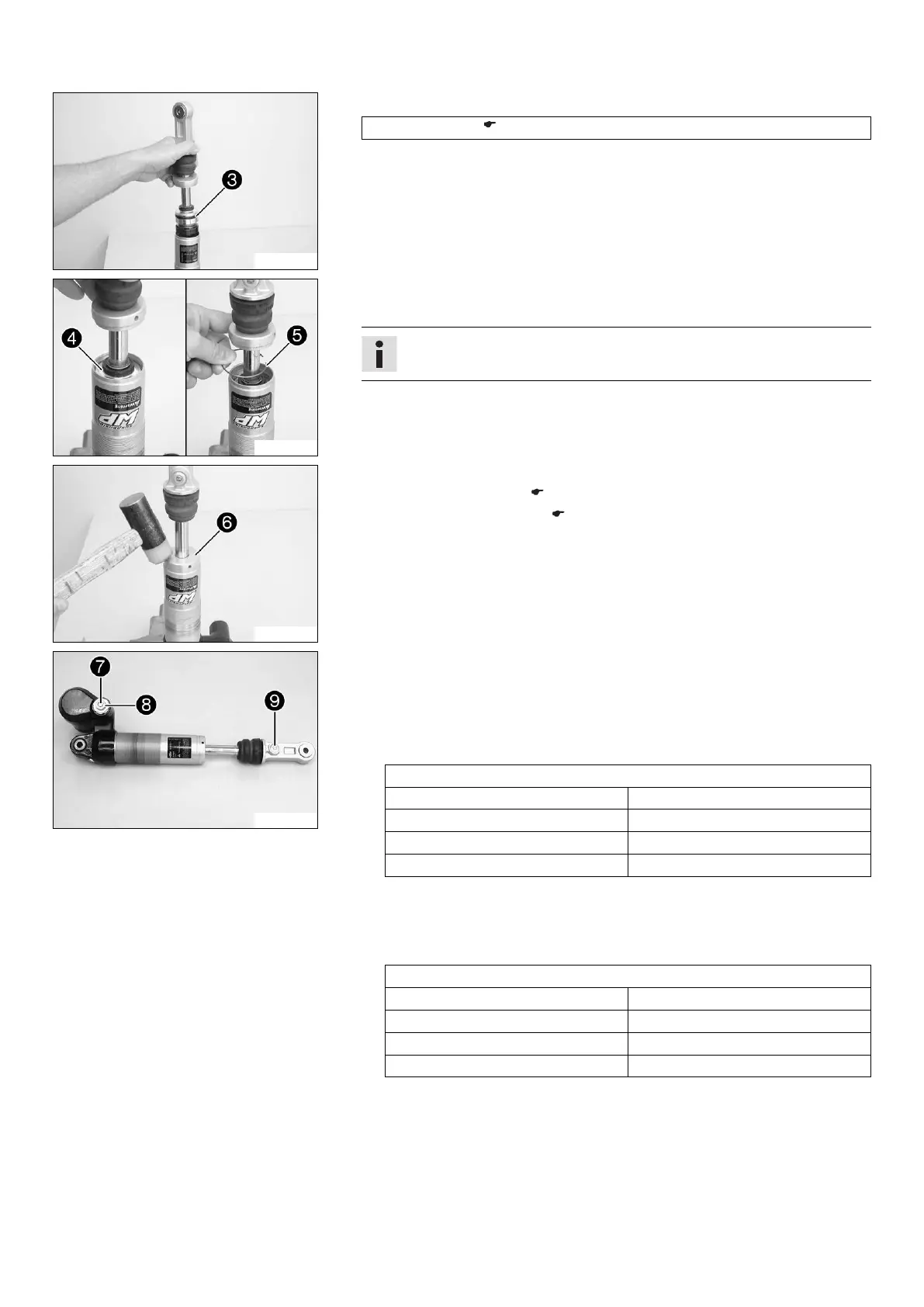

8 SHOCK ABSORBER, SWINGARM 47
201278-11
–
Grease O-ring
of the seal ring retainer.
Lubricant (T158) ( p. 226)
– Mount the piston rod carefully.
201276-10
–
Install the seal ring bearer
and push it under the ring groove.
–
Mount lock ring
.
Info
Do not scratch the inner surface.
– Pull out the piston rod so that the seal ring retainer rests against the lock ring.
201275-10
–
Mount locking cap
of the damper cartridge.
– Bleed and fill the damper. ( p. 48)
– Fill the damper with nitrogen. ( p. 50)
201287-10
Alternative 1
–
Turn adjusting screw
clockwise with a screwdriver up to the last perceptible
click.
– Turn back counterclockwise by the number of clicks corresponding to the shock
absorber type.
Guideline
Compression damping, low-speed
Comfort 25 clicks
Standard 20 clicks
Sport 15 clicks
Full load capacity 15 clicks
–
Turn adjusting screw
all the way clockwise using a socket wrench.
– Turn back counterclockwise the number of turns corresponding to the shock
absorber type.
Guideline
Compression damping, high-speed
Comfort 2 turns
Standard 1.5 turns
Sport 1 turn
Full payload 1 turn
–
Turn adjusting screw
clockwise up to the last perceptible click.
– Turn back counterclockwise by the number of clicks corresponding to the shock
absorber type.
