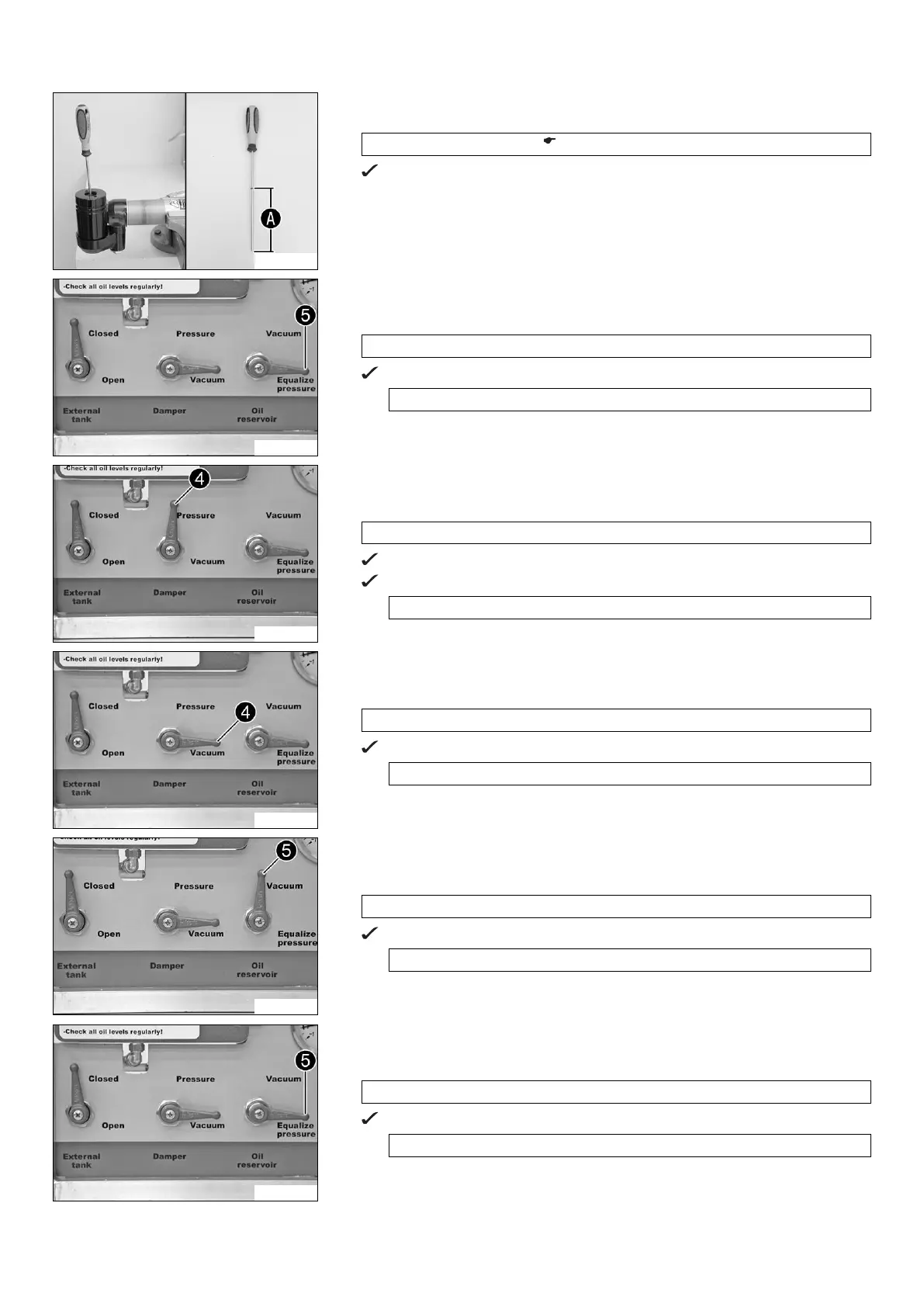

8 SHOCK ABSORBER, SWINGARM 49
201285-10
–
Measure distance

between the floating piston and reservoir hole with the spe-
cial tool.
Depth micrometer (T107S) ( p. 238)
The floating piston is positioned all the way at the bottom.
200267-10
– When the vacuum pressure gauge reaches the specified value, turn the Oil reser-
voir control lever

to Equalize pressure.
Guideline
4 mbar
The pressure gauge rises to the specified value.
0 bar
200268-10
– When the pressure gauge reaches the specified value, turn the Damper control
lever

to Pressure.
Guideline
0 bar
Oil is pumped into the damper.
The pressure gauge rises to the specified value.
3 bar
200269-10
–
When the pressure gauge reaches the specified value, turn the Damper

control
lever to Vacuum.
Guideline
3 bar
The pressure gauge falls to the specified value.
0 bar
200270-10
–
When the pressure gauge reaches the specified value, turn the Oil reservoir

con-
trol lever to Vacuum.
Guideline
0 bar
The vacuum gauge falls to the specified value.
4 mbar
200267-10
– When the vacuum pressure gauge reaches the specified value, turn the Oil reser-
voir control lever

to Equalize Pressure.
Guideline
4 mbar
The pressure gauge falls to the specified value.
0 bar
