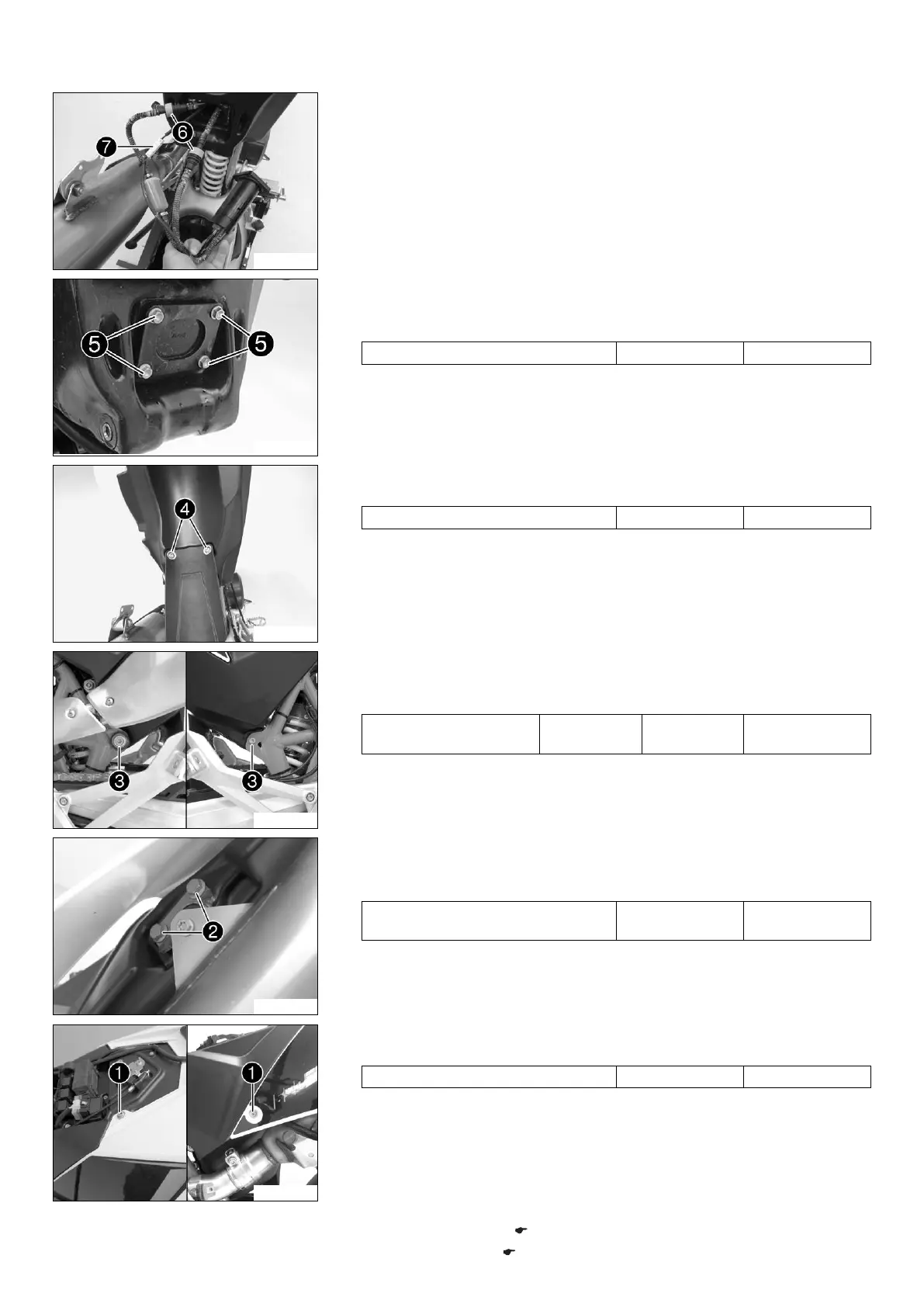

11 FUEL TANK, SEAT, TRIM 66
G00820-10
–
Connect both fuel hose connections
.
–
Attach connector
.
S00113-10
– Position the fuel pump.
–
Mount and tighten screws
.
Guideline
Screw, fuel pump M5 4 Nm (3 lbf ft)
G00819-10
–
Position the splash protector. Mount and tighten screws
.
Guideline
Remaining screws, chassis M5 4 Nm (3 lbf ft)
G00818-10
– Position the rear end.
–
Mount and tighten screw
on both sides.
Guideline
Screw, fuel tank, bottom M8 25 Nm
(18.4 lbf ft)
Loctite
®
243™
G00817-12
– Lift the rear fairing.
–
Mount and tighten screws
.
Guideline
Screw, main silencer holder on fuel
tank
M8 25 Nm
(18.4 lbf ft)
G00816-12
–
Mount and tighten screws
.
Guideline
Screw, side cover M6 5 Nm (3.7 lbf ft)
Finishing work
– Install the air filter box. ( p. 59)
– Mount the side cover. ( p. 62)
