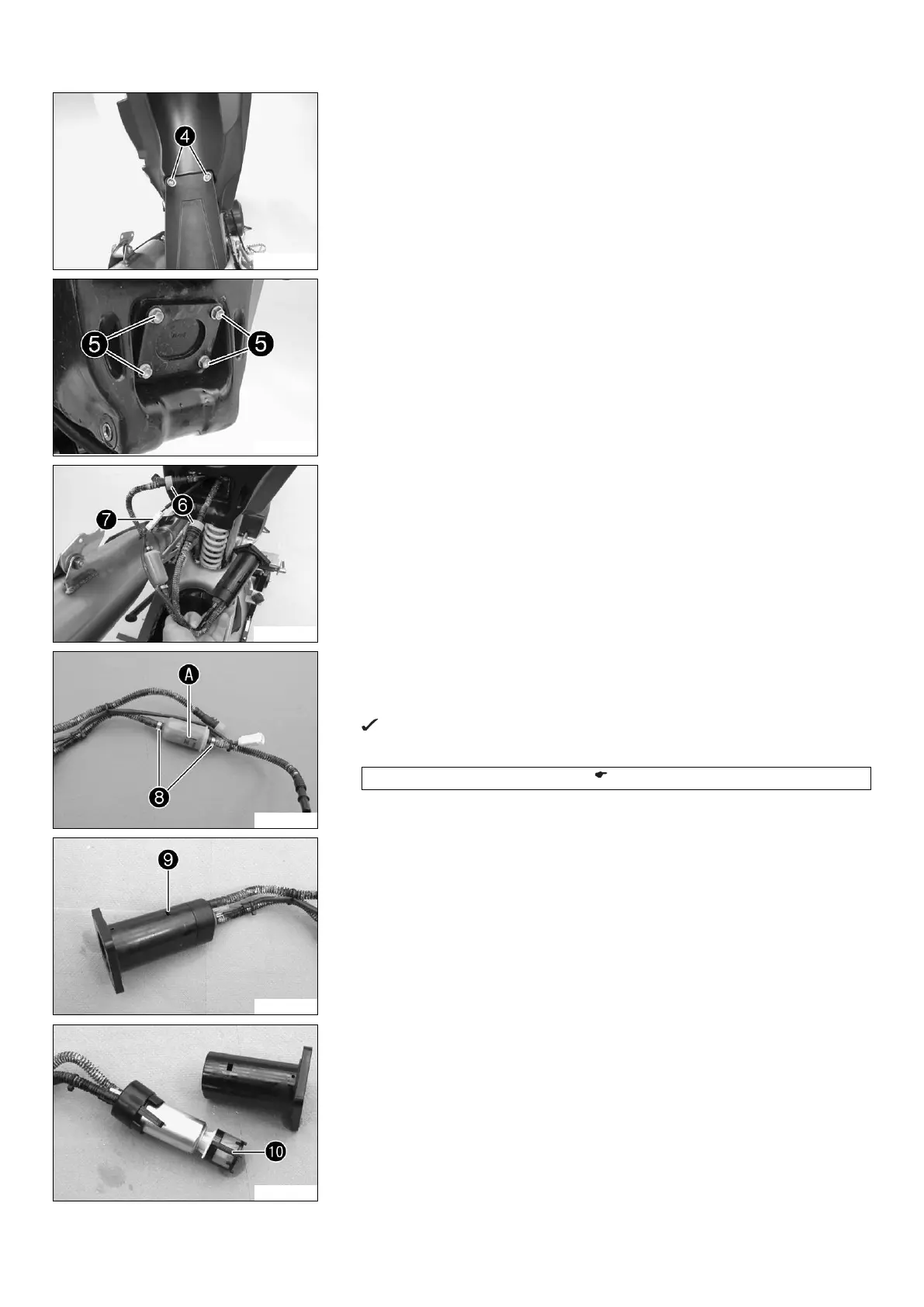

11 FUEL TANK, SEAT, TRIM 65
G00819-10
–
Remove screws
and the splash protector.
S00113-10
–
Remove screws
.
– Pull out the fuel pump.
G00820-10
–
Disconnect both fuel hose connections
.
–
Unplug connector
. Remove the fuel pump.
202049-10
–
Remove hose clamps
.
– Remove fuel filter.
– Mount the new fuel filter.
Arrow
points away from the fuel pump.
–
Mount hose clamps
.
Hose clamp pliers (60029057000) ( p. 230)
202050-10
–
Press locking mechanism
on both sides.
– Pull off the fuel pump housing.
202051-10
–
Change fuel screen
.
– Mount the fuel pump housing.
