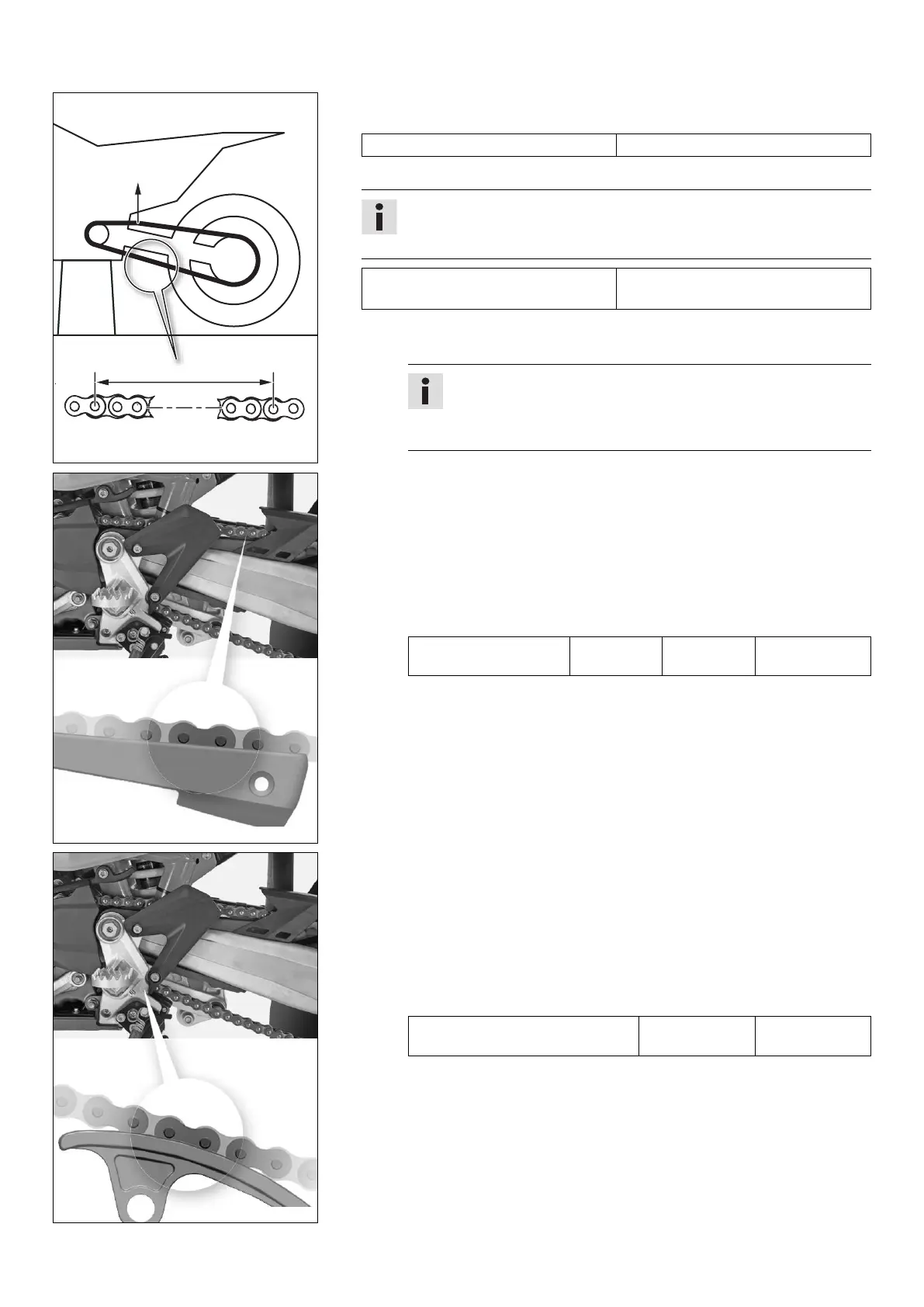

12 WHEELS 79
400987-10
–
Pull on the upper section of the chain with the specified weight
.
Guideline
Weight of chain wear measurement 15 kg (33 lb.)
–
Measure distance
of 18 chain links in the lower chain section.
Info
Chain wear is not always even, so you should repeat this measurement at
different chain positions.
Maximum distance
at the longest
chain section
272 mm (10.71 in)
»
If the distance
is greater than the specified measurement:
– Replace the chain.
Info
When the chain is replaced, the rear sprocket and engine sprocket
should also be changed.
New chains wear out faster on old, worn sprockets.
401170-01
– Check the chain sliding guard for wear.
» If the lower edge of the chain pins is in line with or below the chain sliding
guard:
– Replace the chain sliding guard.
– Check that the chain sliding guard is firmly seated.
» If the chain sliding guard is loose:
– Tighten the chain sliding guard.
Guideline
Screw, chain sliding
guard
M6 8 Nm
(5.9 lbf ft)
Loctite
®
243™
401171-01
– Check the chain sliding piece for wear.
» If the lower edge of the chain pins is in line with or below the chain sliding
piece:
– Change the chain sliding piece.
– Check that the chain sliding piece is firmly seated.
» If the chain sliding piece is loose:
– Tighten the chain sliding piece.
Guideline
Screw, chain sliding piece M8 15 Nm
(11.1 lbf ft)
