14 BRAKE SYSTEM 94
Warning
Danger of accidents Reduced braking efficiency due to use of non-approved brake linings.
– Brake linings available from accessory suppliers are often not tested and approved for use on KTM vehicles. The construc-
tion and friction factor of the brake linings and therefore the brake power can differ considerably from the original KTM
brake linings. If brake linings are used that differ from the originals, there is no guarantee that they comply with the origi-
nal license. The vehicle no longer corresponds to the condition at delivery, and the warranty is no longer valid.
Warning
Environmental hazard Hazardous substances cause environmental damage.
– Oil, grease, filters, fuel, cleaners, brake fluid, etc., should be disposed of as stipulated in applicable regulations.
Info
Never use DOT 5 brake fluid! It is silicone-based and purple in color. Oil seals and brake lines are not designed for DOT 5
brake fluid.
Avoid contact between brake fluid and painted parts. Brake fluid attacks paint!
Use only clean brake fluid from a sealed container.

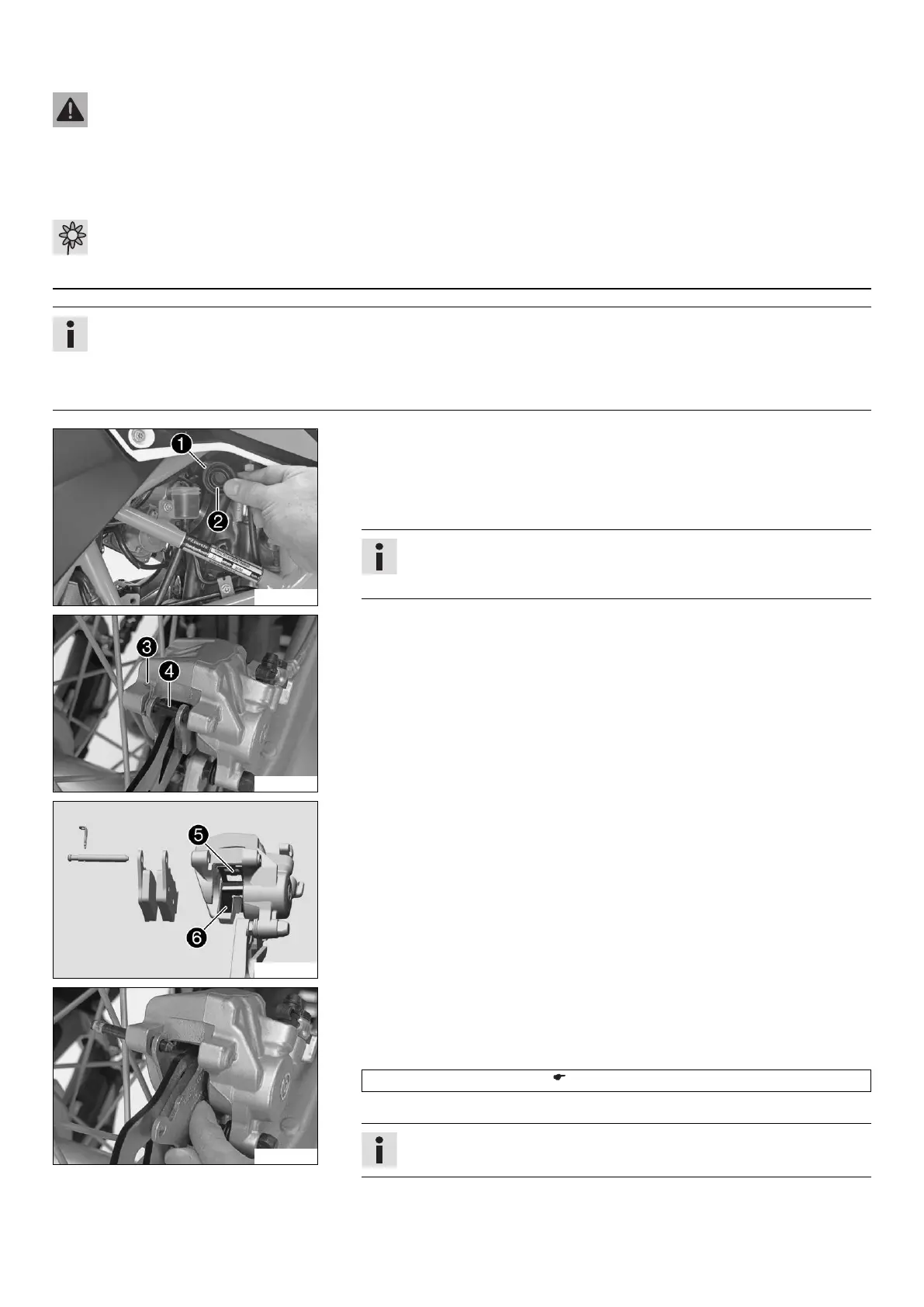

101993-10
– Stand the vehicle upright.
–
Remove screw cap
with membrane
.
– Press the brake caliper by hand onto the brake disc in order to retract the brake
piston. Ensure that brake fluid does not flow out of the brake fluid reservoir,
extracting it by suction if it does.
Info
Make sure when pushing back the brake piston that you do not press the
brake caliper against the spokes.
100288-10
–
Remove cotter pin
, remove pin
toward the left by striking it, and remove
the brake linings.
– Clean brake caliper and brake caliper support.
400419-11
–
Check that leaf spring
in the brake caliper and sliding plate
in the brake
caliper support are seated correctly.
100289-01
– Insert the brake linings, insert the pin, and mount the cotter pin.
– Operate the foot brake lever repeatedly until the brake linings are in contact with
the brake disc and there is a pressure point.
– Adjust the brake fluid level to the MAX mark.
Brake fluid DOT 4 / DOT 5.1 ( p. 224)
– Mount the screw cap with the membrane.
Info
Clean up overflowed or spilt brake fluid immediately with water.
