9. DRIVE AND DRIVEN PULLEYS
9
-
7
MX’er SYSTEM

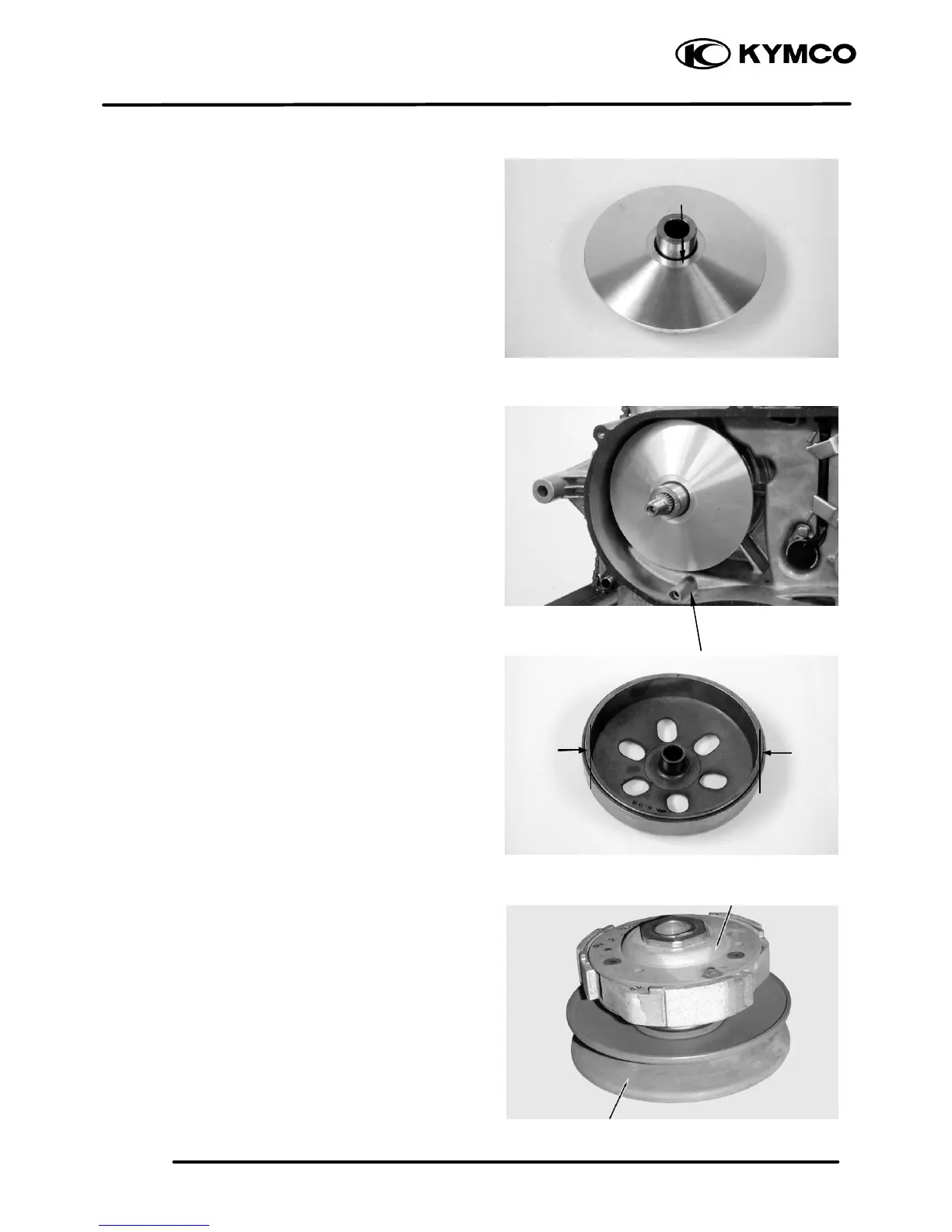

Insert the drive pulley collar into the movable
drive face.
INSTALLATION
Install the movable drive face onto the
crankshaft.
INSPECTION
Inspect the clutch outer for wear or damage.
Measure the clutch outer I.D.
Service Limit: 130.5mm replace if over
CLUTCH/DRIVEN PULLEY
DISASSEMBLY
Drive Pulley Collar
Movable Drive Face Assembly
Clutch
