12. FRONT WHEEL/FRONT BRAKE/FRONT
SUSPENSION/STEERING SYSTEM
12
-
17
MX’er SYSTEM

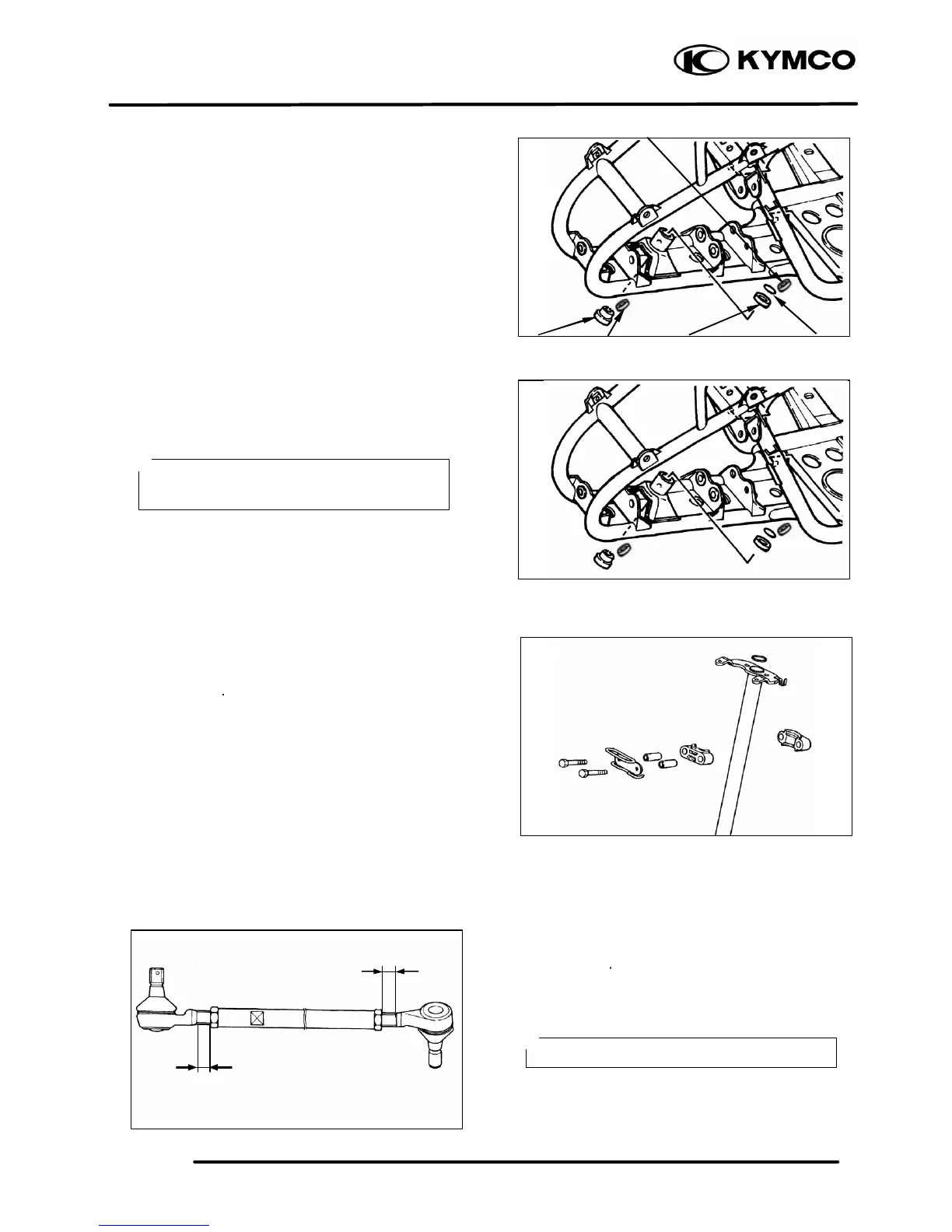

Inspect the collar, duty seal, snap ring and
bearing.
Replace if wear or damage.
INSTALLATION
Reverse the “REMOVAL” procedures.
Assembly the steering column and tighten the
two bolts.
Torque: 1.8 2.5kgf-m
Band the lock washer tabs.
Install the steering column and collar, then
tighten the nut.
Torque: 6.0 8.0kgf-m
Install the cotter pin and band ends of cotter
pin.
Apply the grease onto the collar, duty
seal, and bearing.
*
Always use a new cotter pin.
*
Collar
Snap Ring
Bearing
Dust Seal
Dust Seal
