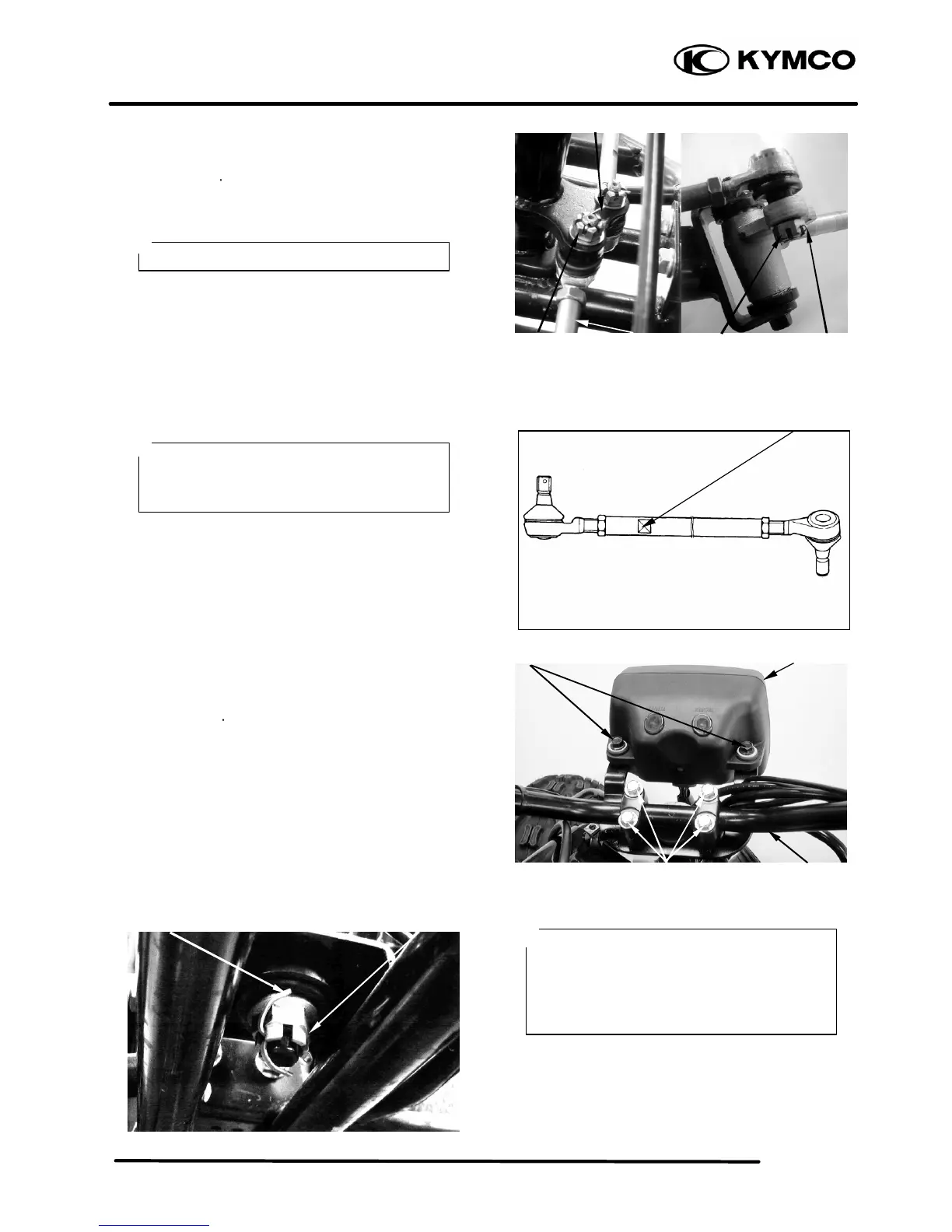

Install the tie rods and tighten the nut.
Torque: 4.0 5.0kgf-m
Install the cotter pin and band ends of cotter
pin.
Install handlebar and handlebar holder, then
tighten the four bolts.
Torque: 1.8 2.5kgf-m
Be sure that the rod
-
end on the
indentation surface side is connected to
the steering column.
*
Always use a new cotter pin.
*
• Be sure the upper handlebar holder mark
face to front.
• Fist tighten the bolts on the front side of
the handlebar holder, and then tighten the
bolts on the rear side.
*
Indentation Surface
Bolts
Headlight Unit
Bolts
Handlebar
Cotter Pin
Cotter Pin
Nut
Nut
Tie
-
rod
Cotter Pin
Nut
