13. REAR WHEEL/SWING ARM/
HYDRAULIC BRAKE
13
-
4
MX’er SYSTEM

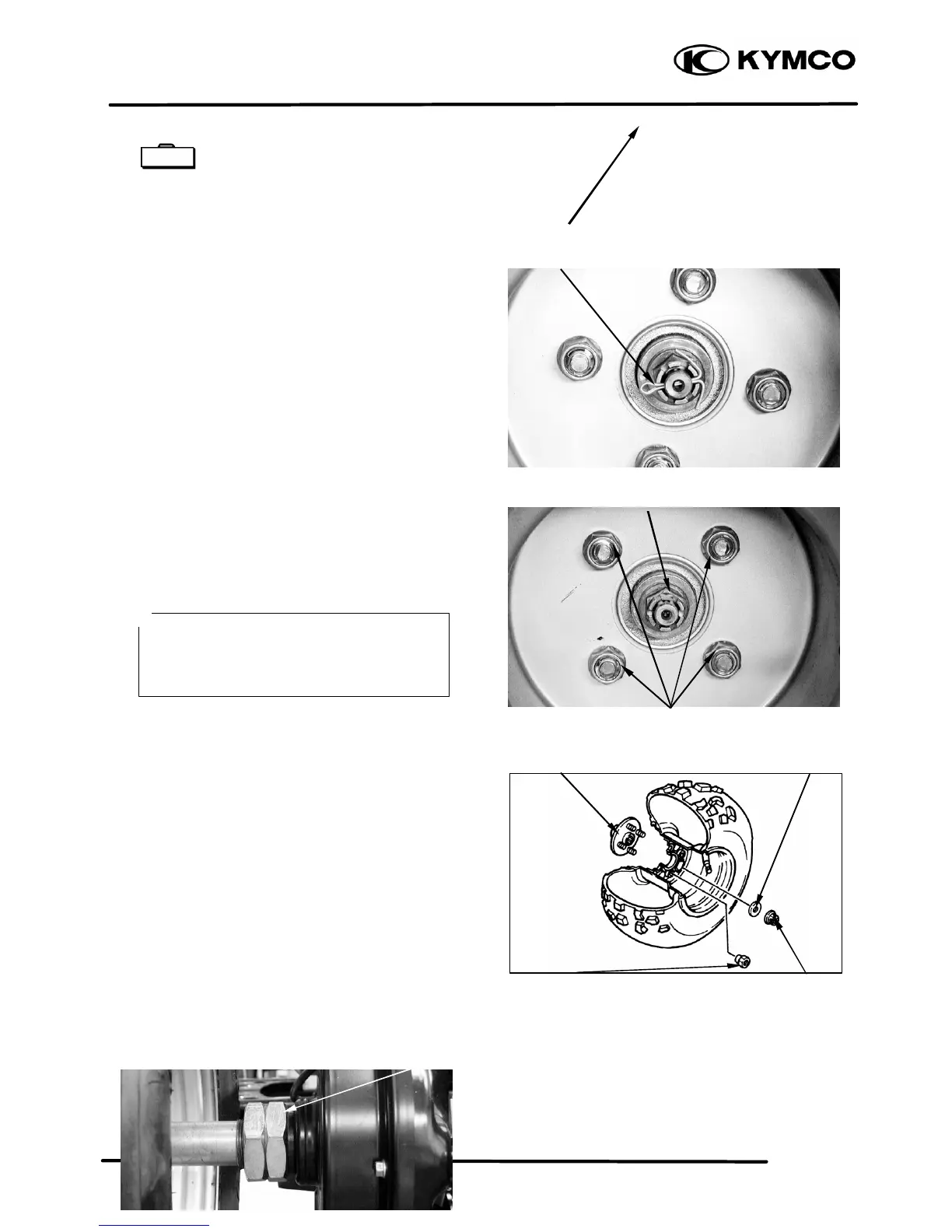

Use the nut wrench to loosen two nuts (inner
and outer) of the rear axle.
Nut wrench F010
Remove the cotter pin.
Remove four nuts attaching the wheel panel of
the both rear wheels.
Loosen nut attaching the wheel hub of the both
rear wheels.
Remove
Remove four nuts attaching the wheel panel and
rear wheel.
Remove nut attaching the wheel hub and
washer.
Remove the wheel hub.
Inspection
Measure the wheel runout.
Service Limit:
Vertical: 2.0 mm
Cotter Pin
Outer Nut
Inner Nut
Nut Attaching The Wheel Hub
Nuts Attaching The Wheel Panel
Elevate the rear wheels by placing a
suitable stand under the rear of frame.
Support the machine securely so there is no
danger of it falling over.
*
Wheel Panel Nuts
Wheel Hub Nut
Washer
Wheel Hub
Special
