Lateral: 2.0mm
Replace wheel or check bearing play if out of
specification.

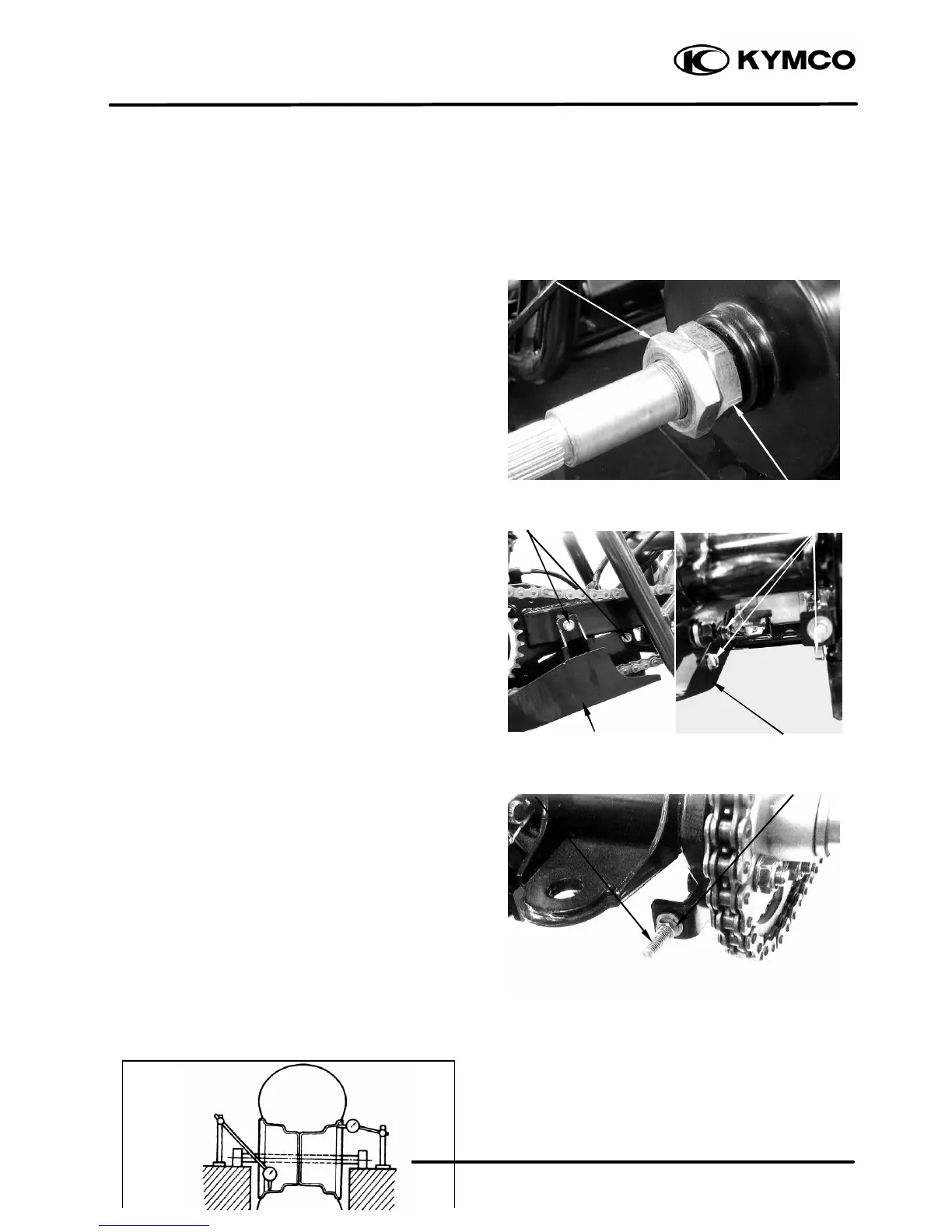

Remove two nuts of the rear axle (outer and
inner).
Remove five bolts attaching left and right lower
guard.
Loosen the lock nut for the adjuster of the drive
chain slack.
Loosen four bolts attaching rear axle hub.
Outer Nut
Inner Nut
Bolt
s
Left Lower Guard
Bolt
s
Right Lower Guard
Adjuster
Lock Nut
