13. REAR WHEEL/SWING ARM/
HYDRAULIC BRAKE
MX’er SYSTEM

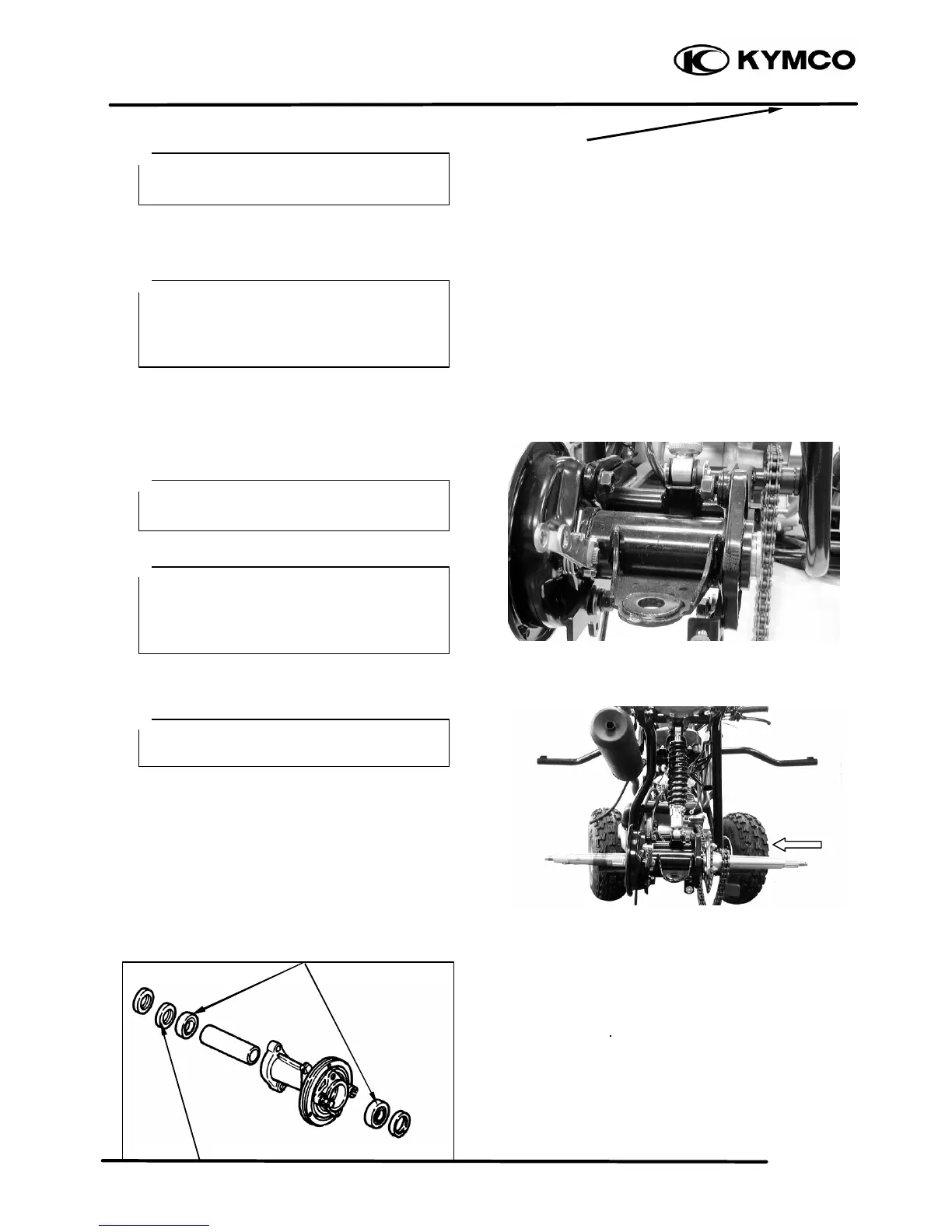

Remove the oil seal by a flat-head screw
driver.
Remove the bearing by a general bearing puller.
Install the new bearings and oils seal by
reversing the previous steps.
INSTALLATION
Reverse the “REMOVAL” procedures.
Install the rear axle hub.
Install the rear axle.
Install the brake drum.
Install the rubber spacer and brake drum
cover.
Torque: 0.8 1.2kgf-m
Place a wood block against the outer
edge to protect this edge.
Do not strike the center race or balls of
the bearing.
Contact should be made only with the
At this time, the rear axle hub should not
be tightened completely.
Final tightening is done after the chain
Apply grease onto the oil seal lips,
bearings and bushes.
Tap the axle and with a rubber hammer,
this will avoid damage the axle thread.
