13. REAR WHEEL/SWING ARM/
HYDRAULIC BRAKE
13
-
11
MX’er SYSTEM

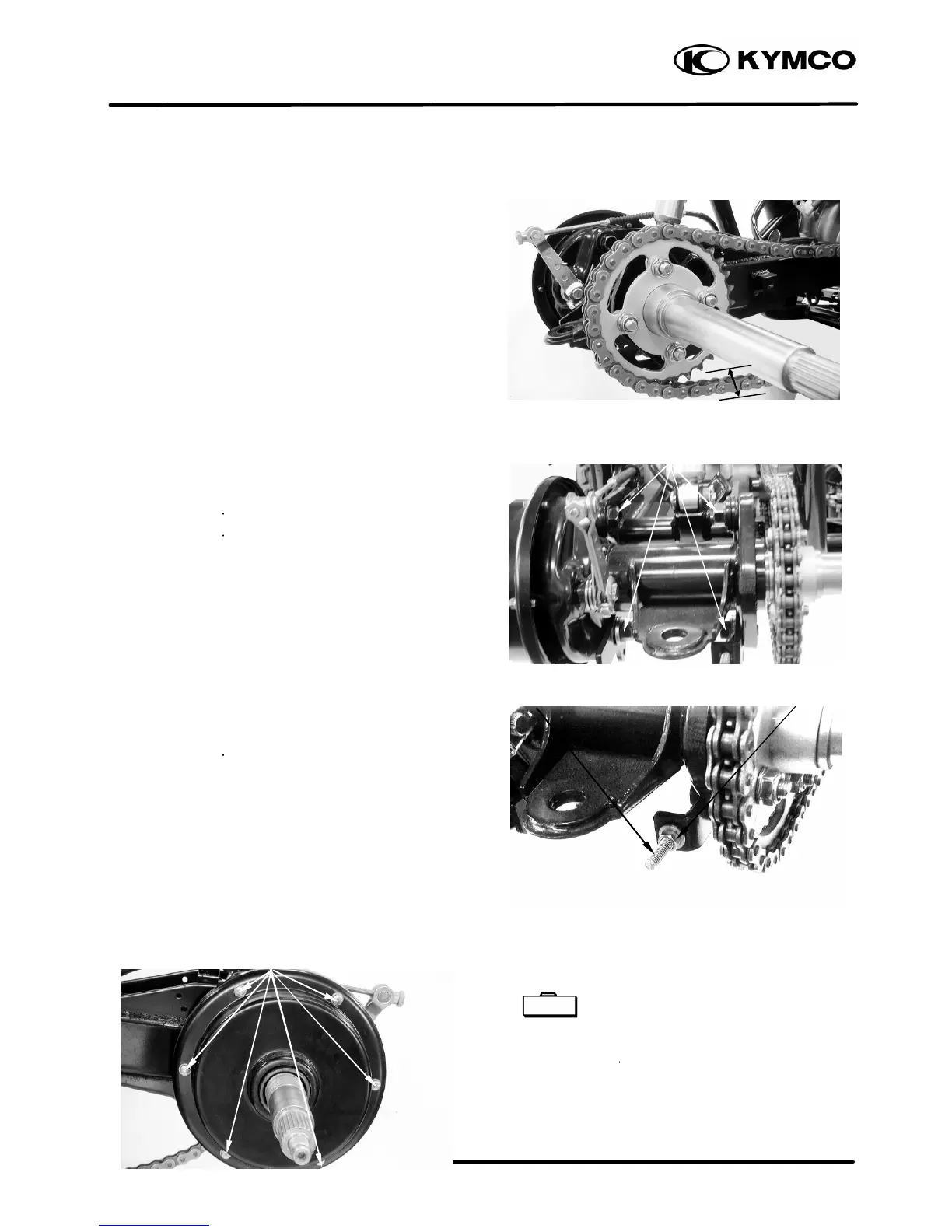

Adjust drive chain slack.
Approximately: 30 mm
Tighten the bolts.
Torque: 6.0 8.0kgf-m
Torque: 6.0 8.0kgf-m
Tighten the lock nut.
Torque: 1.8 2.5kgf-m
Tighten the two nuts with the nut wrench.
Nut wrench F010
Torque: 11.0 13.0kgf-m
Bolts
Bolts
Adjuster
Lock Nut
Special
