Installing and Setting up the Machine > Part Names (Machine Exterior)

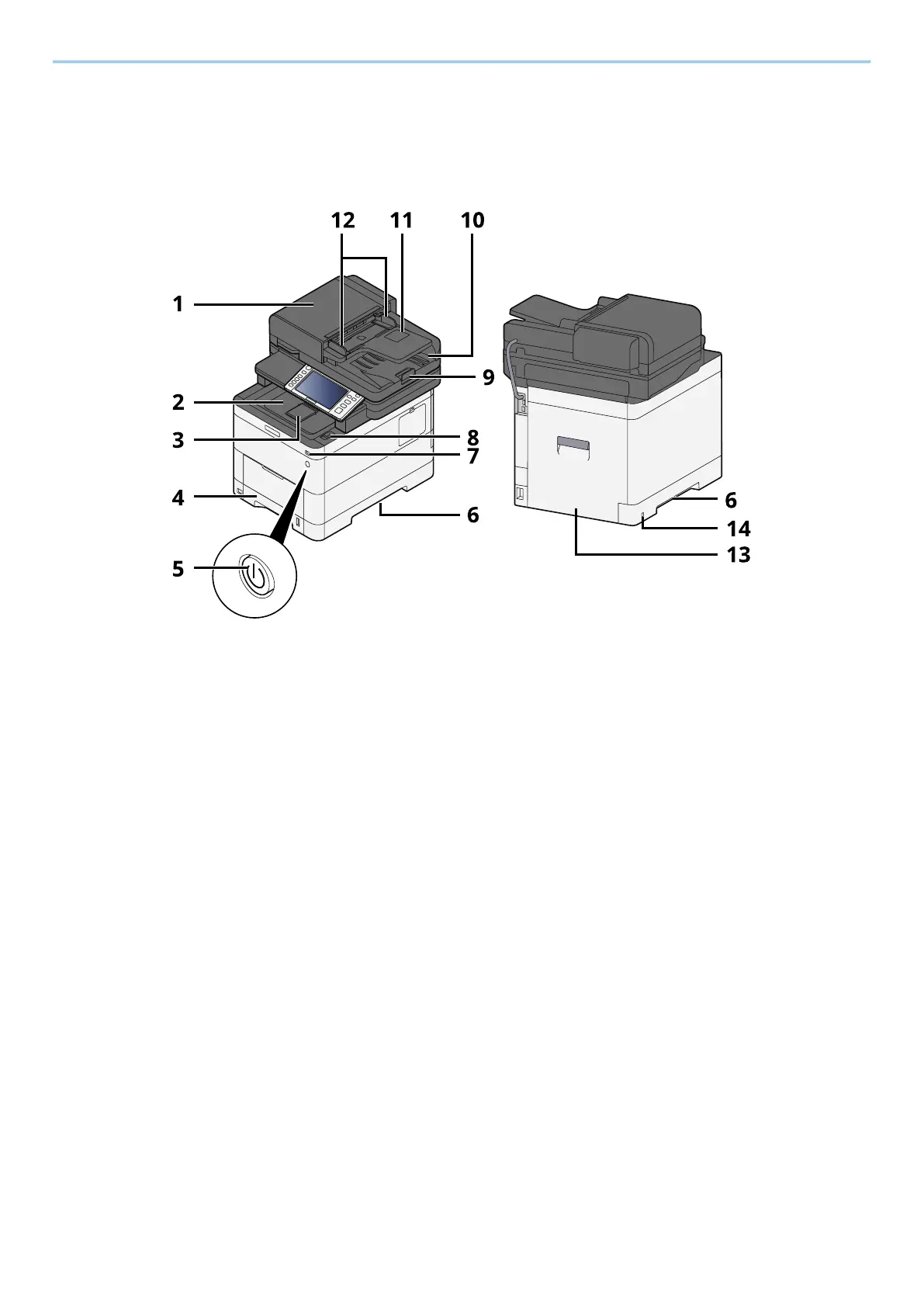

Part Names (Machine Exterior)

1 Document processor

2 Inner tray

3 Eject stopper

4 Cassette 1

5 Power Switch

6 Conveying handle

7 USB Memory slot

8 Scanner unit open lever

9 Original stopper

10 Original eject table

11 Original tray

12 Original width guide

13 Rear cover 1

14 Anti-theft slot
