Troubleshooting > Clearing Paper Jams

723

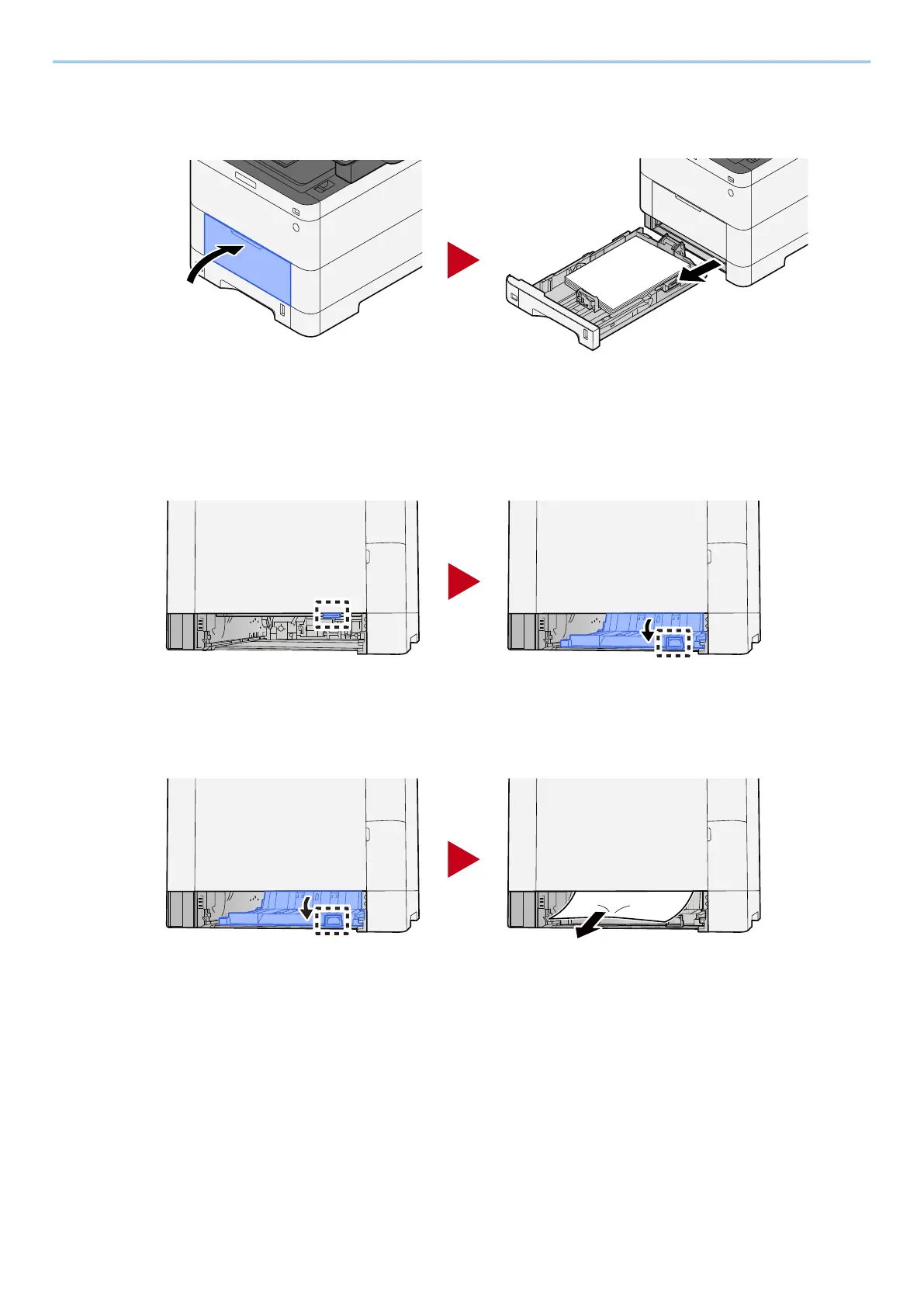

Close the multipurpose tray and pull out cassette 1.

Open the feed cover.

Remove any jammed paper.
