Troubleshooting > Clearing Paper Jams

733

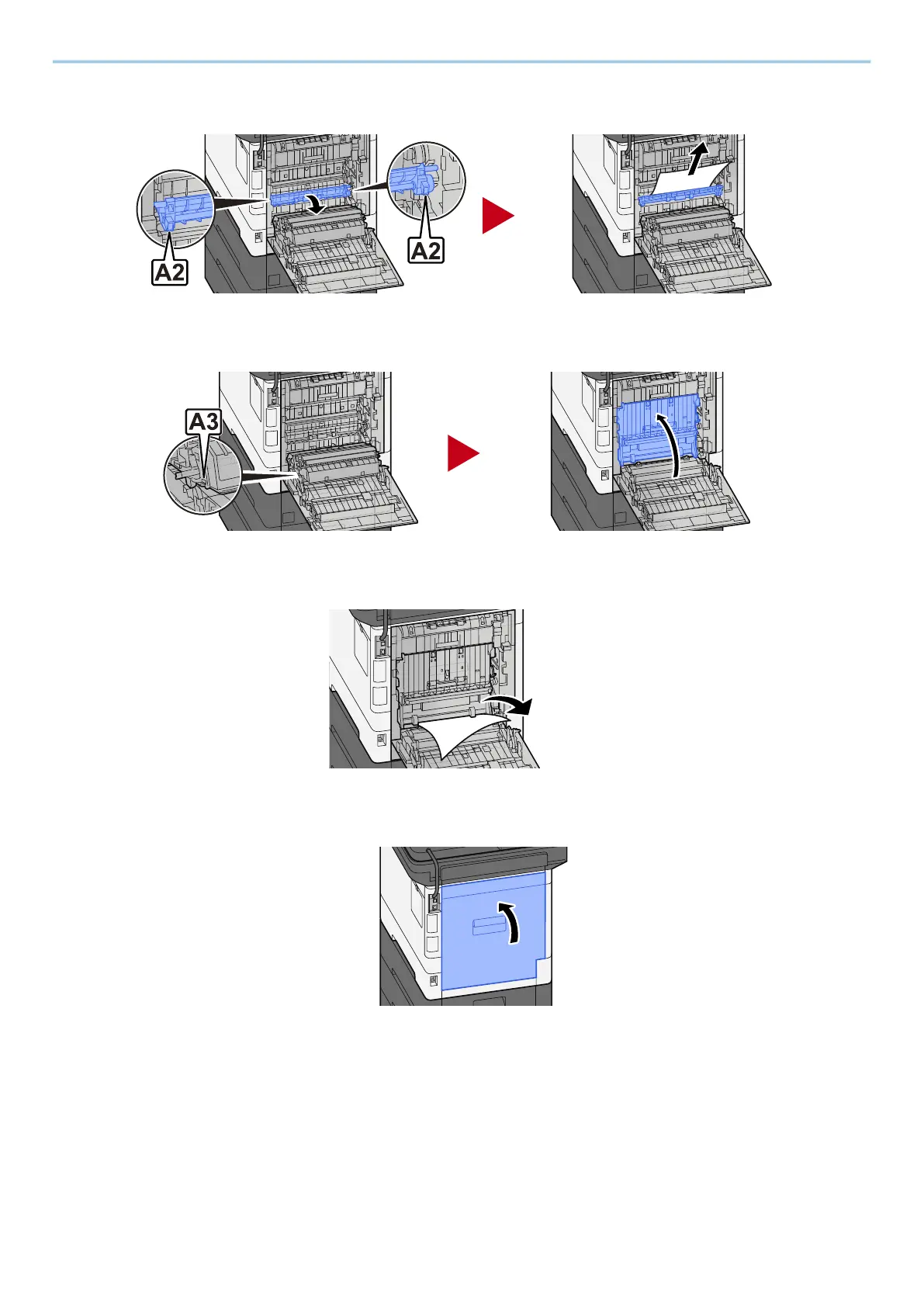

Open cover A2 and remove the jammed paper

Return the Unit A3 to the original position

Remove any jammed paper.

Return the rear cover 1 to the original position.
