For instant hard copies the 9400A’s screen dump feature sends data
directly to the DPgO01 8-pen digital plotter.
ORDERING INFORMATION
Oscilloscope and Options
Code
Description
9400A/G Digital Oscilloscope
9400AOP01 High-precision Option
9400AOP03 Printer Option for 9400A/G
9400AWP01 Waveform Processing Option
9400AWP02 FFT Processing Option (requires 9400AWP01)
9400AMS01 Mass Storage and Remote Control Package, in-
cluding an IBM lap-top controller, interface, cables
and software
9400AIM01 GPIB Interface for IBM-PCC computers
9400CS01 Calibration Software
Oscilloscope Accessories
OM9400A Operator’s Manual
SM9400A Service Manual
US SALES OFFICES
1-800-5-LeCroy
automatically connects you to your local sales office.
WORLDWIDE
Australia: Scient. Devices Pty, Ltd, (03) 579-3622
Austria: Dewetron Elektr. Messger&te GmbH, (0316) 391804
Benelux: LeCroy B.V. "31~4902-89285
Canada: Rayonics Sci. Inc., W. Ontario, (416) 736-1600
E. Ontario/Manitoba, (613) 521-8251
Quebec, (514) 335-015
W. Canada, (604) 293-1854
Denmark: Lutronic Aps, (42) 459764
Finland: Labtronic OY, (90) 847144
France: LeCroy Sad (1) 69073897
Germany: LeCroy GmbH, (06221) 49162, (North) (0405)
A wide range of oscilloscope accessories including cameras and a
scope cart (pictured) are available for the 9400A.
Oscilloscope Accessories (cont’d)
CAg001
CA9002
CS9400
DPg001
94XX-FC
OC9001
P9010
Pg010/2
P9011
P9100
RM9400
SGg001
Tcg001
TC9002
TC9003
Camera (using Polaroid film) and Hood
Camera Adapter (35mm) with Hood
Certified Calibration
Digital Plotter, 8-pen A4 size
Front Cover
Oscilloscope Cart
10:1 Oscilloscope Probe
10:1 Oscilloscope Probe with 2 m cable
10:1/1:1 Oscilloscope Probe
100:1 Oscilloscope Probe
Adapter Kit for Rack Mounting
High-voltage Protector
Transit Case
Protective Cover
Transit Case for 9400A and Mass Storage
Greece: Hellenic S/R Ltd., (01) 721 1140
India: Electronic Ent., (02) 4137096
Israel: Ammo, (03) 453157
Italy: LeCroy Srl, Roma (06) 302-9646, Milano (02) 2940-5634
Japan: Toyo Corp., (03) 279 0771
Korea: Samduk Science & Ind., Ltd., (02) 468 04914
Mexico: Nucleoelectronica SA, (905) 5693 6043
New Zealand: E.C. Gough Ltd., (03) 798-740
Norway: Avantec AS, (02) 630520
Portugal: M.T. Brandao, Lta¯, (02) 691116
Spain: Anadig Ingenieros SA, (01) 433 24
Switzerland: LeCroy SA (022) 719 21
Sweden: MSS AB, (0764) 68100
Taiwan: Topward El. Inst., Ltd., (02) 601 8801
United Kingdom: LeCroy Ltd., (0235) 33 114
LeCroy
Innovators in Instrumentation
LeCROY CORPORATE HEADQUARTERS
700 Chestnut Ridge Road
Chestnut Ridge, NY 10977-6499
Telephone: (914) 425-2000
TWX:(710) 577-2832
Fax: (914) 425-8967
LeCROY EUROPEAN HEADQUARTERS
2, rue Pr~de-la-Fontaine
P.O. Box 341
1217 Meyrin 1-Geneva, Switzerland
Telephone: (022) 719 21 11 Telex: 41 90
Fax: (022) 782 39
Copyright @ March 1990. LeCroy is the registered trademark of LeCroy Corporation. All rights reserved. Information in this publication supersedes all earlier versions. Specifications subject
to change without notice,
TDS 011/004

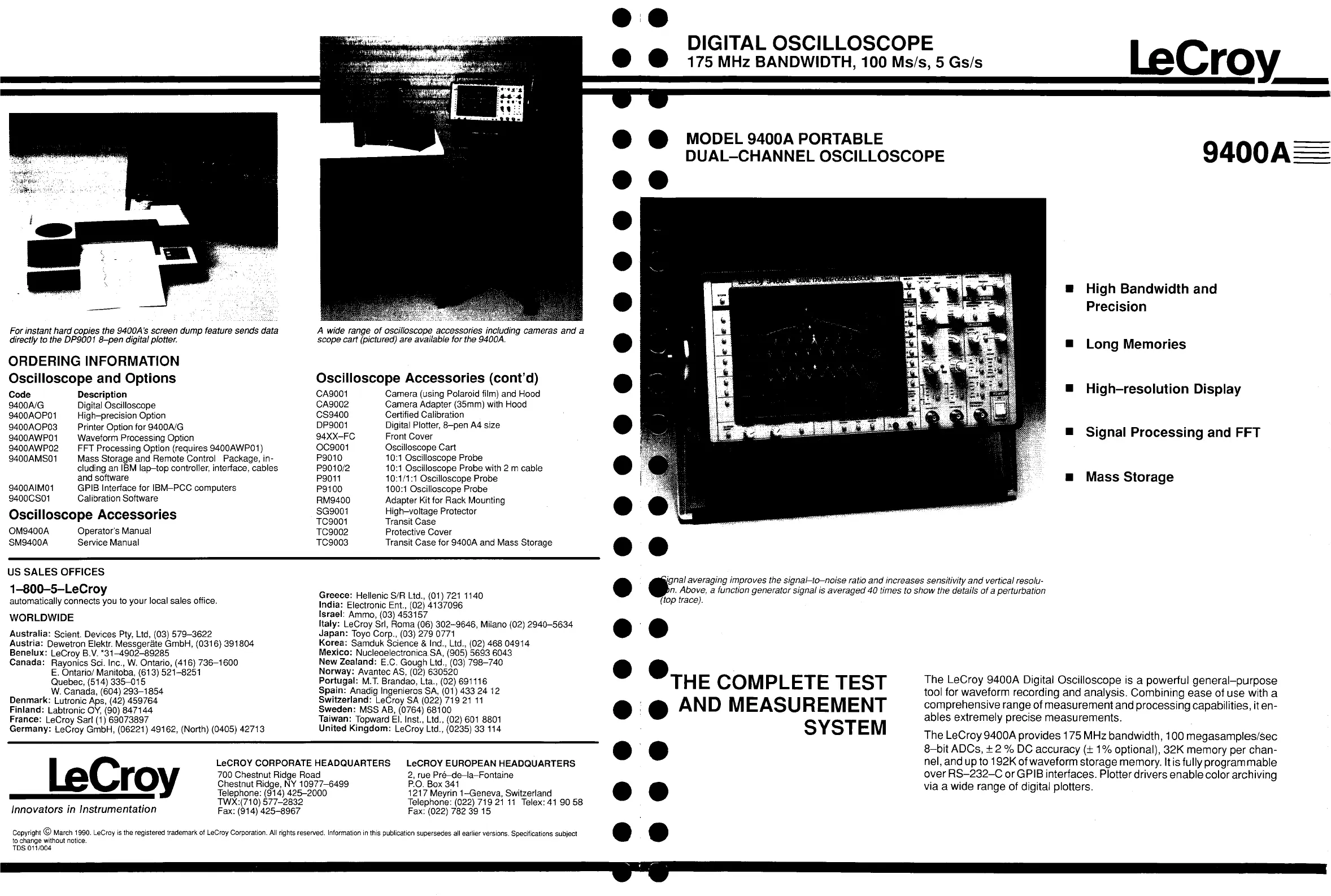

DIGITAL OSCILLOSCOPE
175 MHz BANDWIDTH, 100 Ms/s, 5 Gs/s
LeCroy
MODEL 9400A PORTABLE
DUAL-CHANNEL OSCILLOSCOPE
9400A
High Bandwidth and
Precision
¯ Long Memories
¯ High-resolution Display
¯ Signal Processing and FFT
¯ Mass Storage
~(t
gnal averaging improves the signal-to-noise ratio and increases sensitivity and vertical resolu-
¯ Above, a function generator signal is averaged 40 times to show the details of a perturbation
p trace).
QTHE COMPLETE TEST
O AND MEASUREMENT
SYSTEM
The LeCroy 9400A Digital Oscilloscope is a powerful general-purpose
tool for waveform recording and analysis. Combining ease of use with a
comprehensive range of measurement and processing capabilities, it en-
ables extremely precise measurements.
The LeCroy 9400A provides 1 75 MHz bandwidth, 100 megasamples/sec
8-bit ADCs, + 2 % DC accuracy (+ 1% optional), 32K memory per chan-
nel, and up to 192K of waveform storage memory¯ It is fully program mable
over RS-232-C or GPIB interfaces. Plotter drivers enable color archiving
via a wide range of digital plotters.
