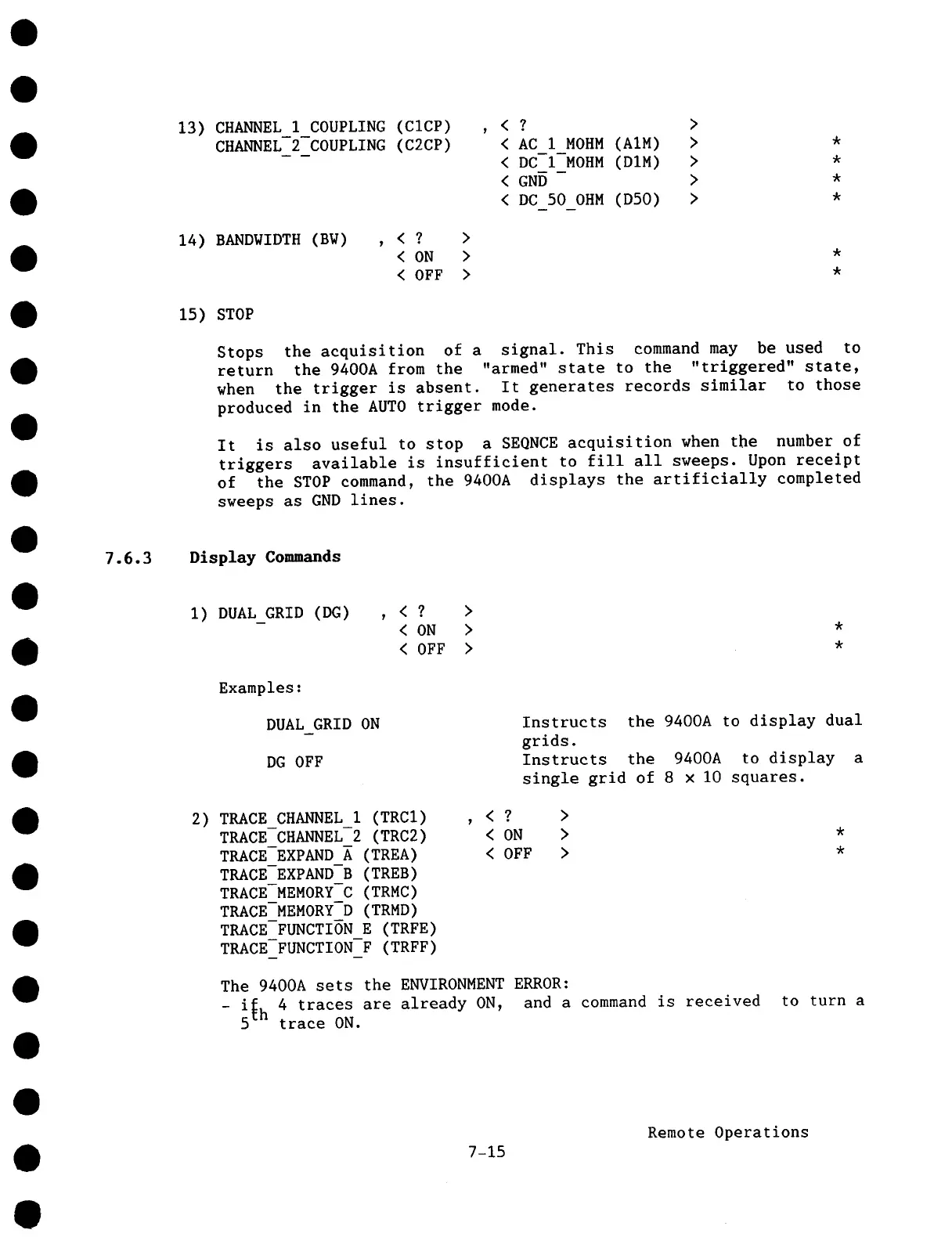

13) CHANNEL I COUPLING (CICP)
CHANNEL 2 COUPLING (C2CP)
, <? >
< AC 1 MOHM (AIM)
> *
< DC 1 MOHM (DIM)
> *
< GND
>
*
< DC 50 OHM (D50)
> *
14) BANDWIDTH (BW)
, <? >
< ON > *
< OFF > *
15) STOP
Stops the acquisition of a signal. This command may be used to
return the 9400A from the "armed" state to the "triggered" state,
when the trigger is absent. It generates records similar to those
produced in the AUTO trigger mode.
It is also useful to stop a SEQNCE acquisition when the number of
triggers available is insufficient to fill all sweeps. Upon receipt
of the STOP command, the 9400A displays the artificially completed
sweeps as GND lines.
7.6.3 Display Commands
i) DUAL GRID (DG) , <
- < ON > *
< OFF > *
Examples:
DUAL GRID ON
DG OFF
Instructs the 9400A to display dual
grids.
Instructs the 9400A to display a
single grid of 8 x i0 squares.
2)
TRACE CHANNEL I (TRCI)
TRACE-CHANNEL-2 (TRC2)
TRACE-EXPAND A (TREA)
TRACE-EXPAND-B (TREB)
TRACE-MEMORY-C (TRMC)
TRACE-MEMORY-D (TRMD)
TRACE-FUNCTION E (TREE)
TRACE-FUNCTION-E (TREE)
, <?
>
< ON > *
< OFF > *
The 9400A sets the ENVIRONMENT ERROR:
- i~h 4 traces are already ON, and a command is received
5
trace ON.
to turn a
7-15
Remote Operations
