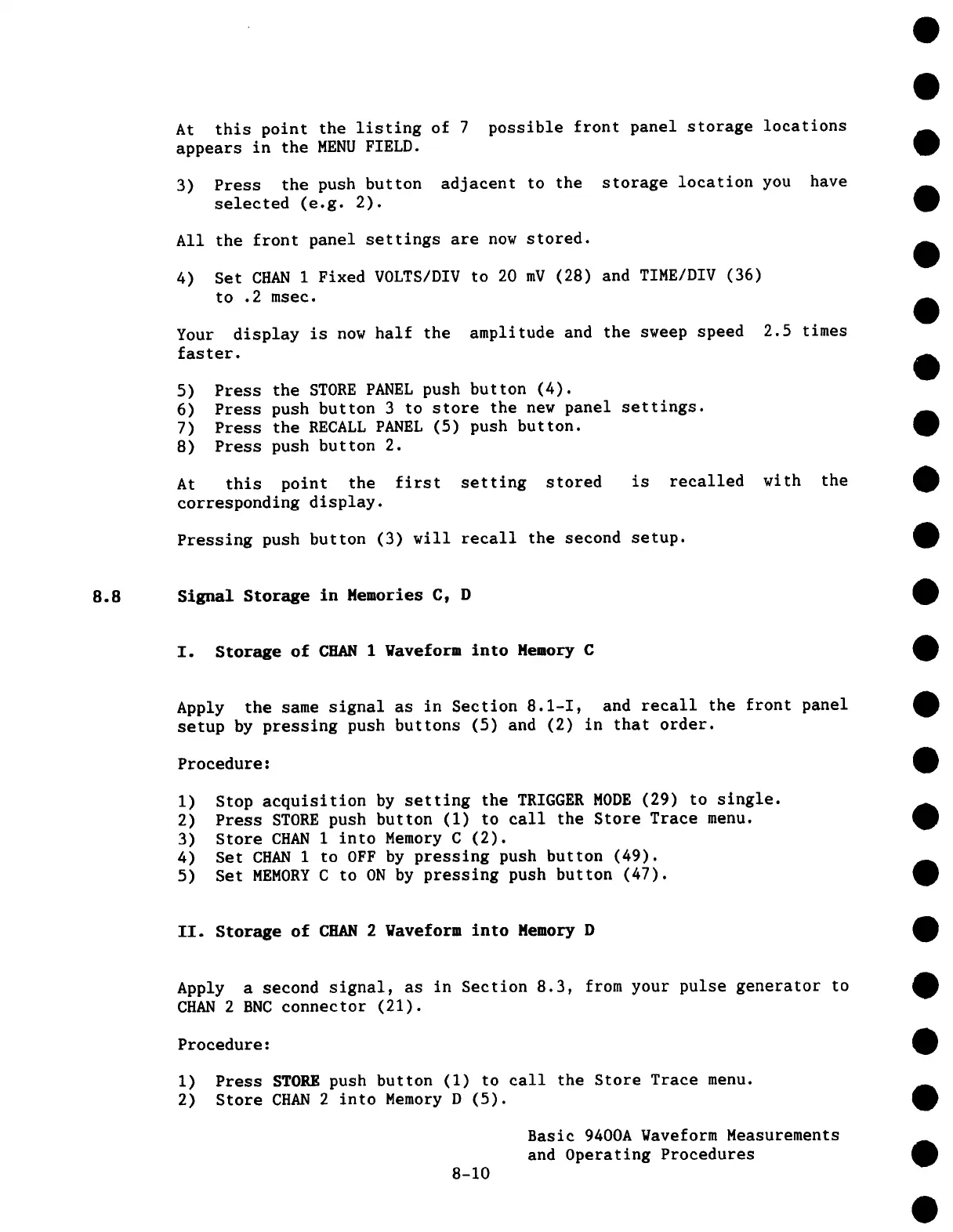

At this point the listing of 7 possible front panel storage locations
appears in the MENU FIELD.
3)
Press the push button adjacent to the storage location you have
selected (e.g. 2).
All the front panel settings are now stored.
4)
Set CHAN 1 Fixed VOLTS/DIV to 20 mV (28) and TIME/DIV (36)
to .2 msec.
Your display is now half the amplitude and the sweep speed 2.5 times
faster.
5)
Press the STORE PANEL push button (4).
6)
Press push button 3 to store the new panel settings.
7) Press the RECALL PANEL (5) push button.
8) Press push button 2.
At this point the first setting stored
corresponding display.
is recalled with the
Pressing push button (3) will recall the second setup.
8.8
Signal Storage in Memories C, D
I.
Storage of CHAN 1 gaveform into Memory C
Apply the same signal as in Section 8.1-I, and recall the front panel
setup by pressing push buttons (5) and (2) in that order.
Procedure:
i) Stop acquisition by setting the TRIGGER MODE (29) to single.
2) Press STORE push button (1) to call the Store Trace menu.
3)
Store CHAN i into Memory C (2).
4)
Set CHAN 1 to OFF by pressing push button (49).
5) Set MEMORY C to ON by pressing push button (47).
II. Storage of CHAN 2 Waveform into Memory D
Apply a second signal, as in Section 8.3, from your pulse generator to
CHAN 2 BNC connector (21).
Procedure:
I)
Press STORE push button (I) to call the Store Trace menu.
2)
Store CHAN 2 into Memory D (5).
8-10
Basic 9400A Waveform Measurements
and Operating Procedures
