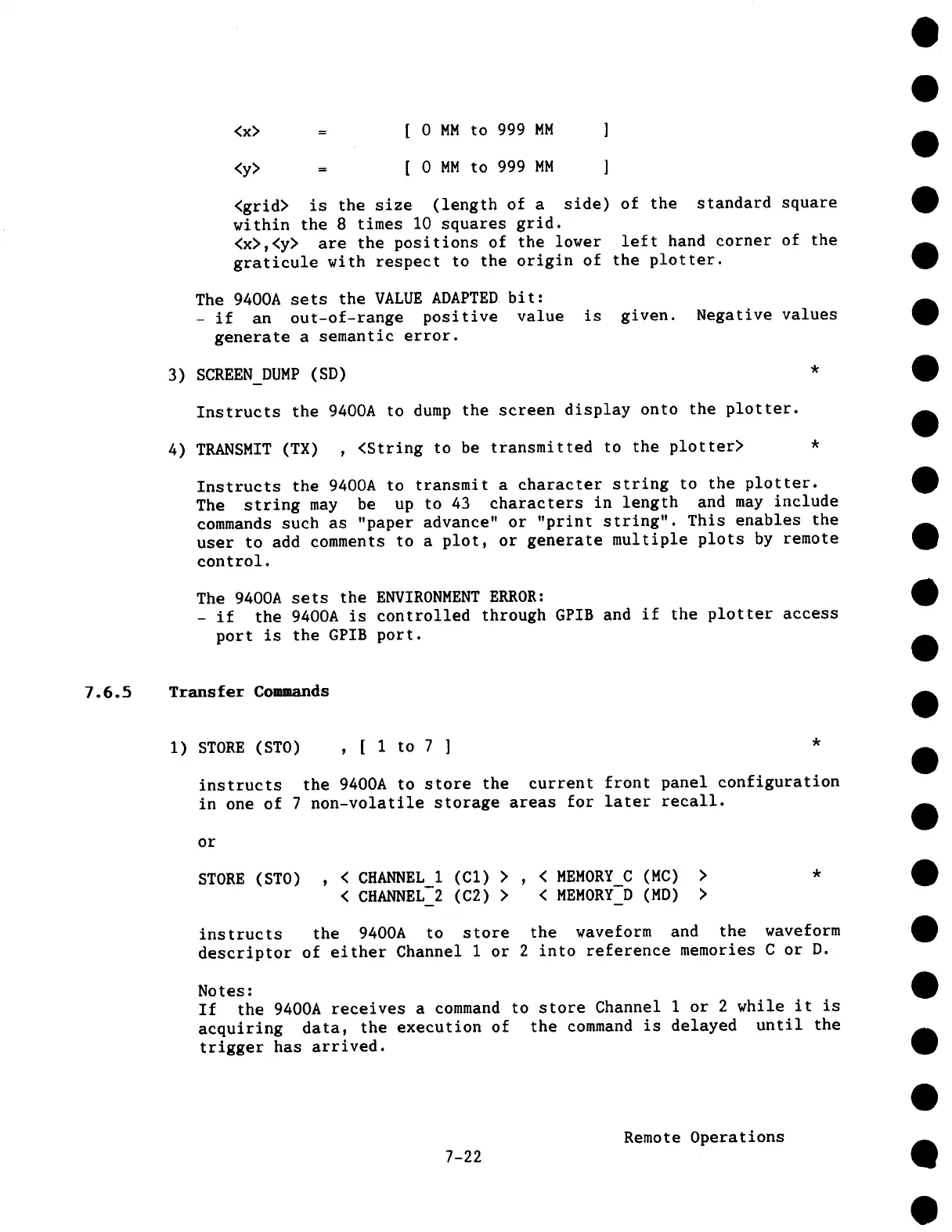

<x> = [ 0 MM to 999 MM ]
<y> [ 0 MM to 999 MM ]
<grid> is the size (length of a side) of the standard square
within the 8 times I0 squares grid.
<x>,<y> are the positions of the lower left hand corner of the
graticule with respect to the origin of the plotter.
The 9400A sets the VALUE ADAPTED bit:
- if an out-of-range positive value
generate a semantic error.
is given. Negative values
3) SCREEN DUMP (SD)
*
Instructs the 9400A to dump the screen display onto the plotter.
4) TRANSMIT (TX) , <String to be transmitted to the plotter>
Instructs the 9400A to transmit a character string to the plotter.
The string may be up to 43 characters in length and may include
commands such as "paper advance" or "print string". This enables the
user to add comments to a plot, or generate multiple plots by remote
control.
The 9400A sets the ENVIRONMENT ERROR:
- if the 9400A is controlled through GPIB and if the plotter access
port is the GPIB port.
7.6.5 Transfer Comm~,ds
i) STORE (STO) , [ 1 to
instructs the 9400A to store the current front panel configuration
in one of 7 non-volatile storage areas for later recall.
or
STORE (STO)
, < CHANNEL 1 (CI) > , < MEMORY C (MC)
< CHANNEL-2 (C2) > < MEMORY-D (MD)
instructs the 9400A to store the waveform and the waveform
descriptor of either Channel 1 or 2 into reference memories C or D.
Notes:
If the 9400A receives a command to store Channel 1 or 2 while it is
acquiring data, the execution of the command is delayed until the
trigger has arrived.
7-22
Remote Operations
