< HEWLETT PACKARD (HP) >

PHILIPS (PH)

TEKTRONIX (TEK)

<port> = < RS232 (RS)

< GPIB (SP)

<speed> < NORMAL SPEED (NS)

< LOW SPEED (LS)

<pens> = [ 1 to 9 ]

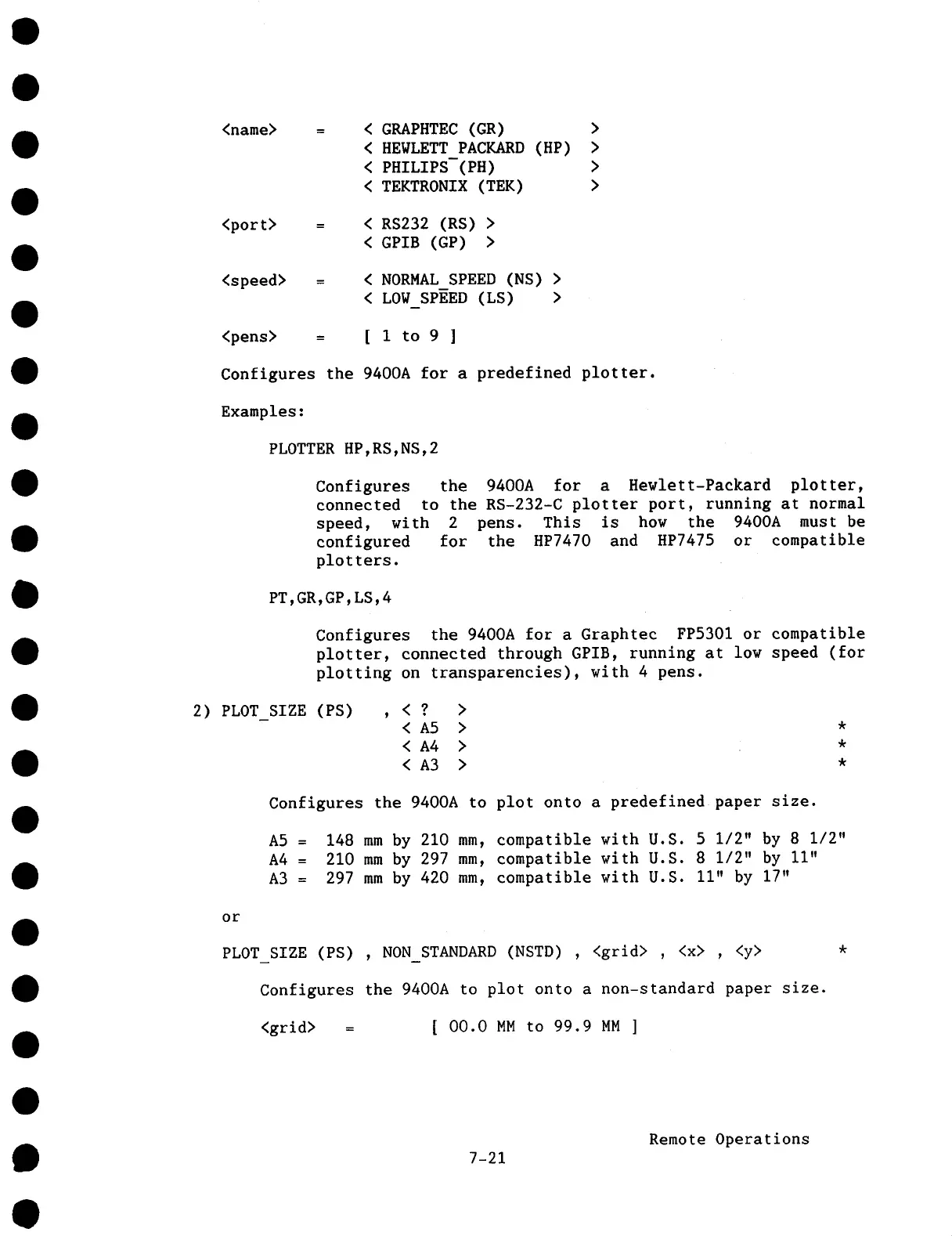

Configures the 9400A for a predefined plotter.

Examples:

PLOTTER HP,RS,NS,2

Configures the 9400A for a Hewlett-Packard plotter,

connected to the RS-232-C plotter port, running at normal

speed, with 2 pens. This is how the 9400A must be

configured for the HP7470 and HP7475 or compatible

plotters.

PT,GR,GP,LS,4

Configures the 9400A for a Graphtec FP5301 or compatible

plotter, connected through GPIB, running at low speed (for

plotting on transparencies), with 4 pens.

2) PLOT SIZE (PS) , <? >

< A5 > *

< A4 > *

< A3 > *

Configures the 9400A to plot onto a predefined paper size.

AS=

A4=

A3 =

148 mm by 210 mm, compatible with U.S. 5 1/2" by 8 1/2"

210 mm by 297 mm, compatible with U.S. 8 1/2" by II"

297 mm by 420 mm, compatible with U.S. ii" by 17"

PLOT SIZE (PS) , NON STANDARD (NSTD) , <grid> , <x> ,

Configures the 9400A to plot onto a non-standard paper size.

<grid> = [ 00.0 MM to 99.9 MM ]

7-21

Remote Operations

LeCroy 9400A User Manual
