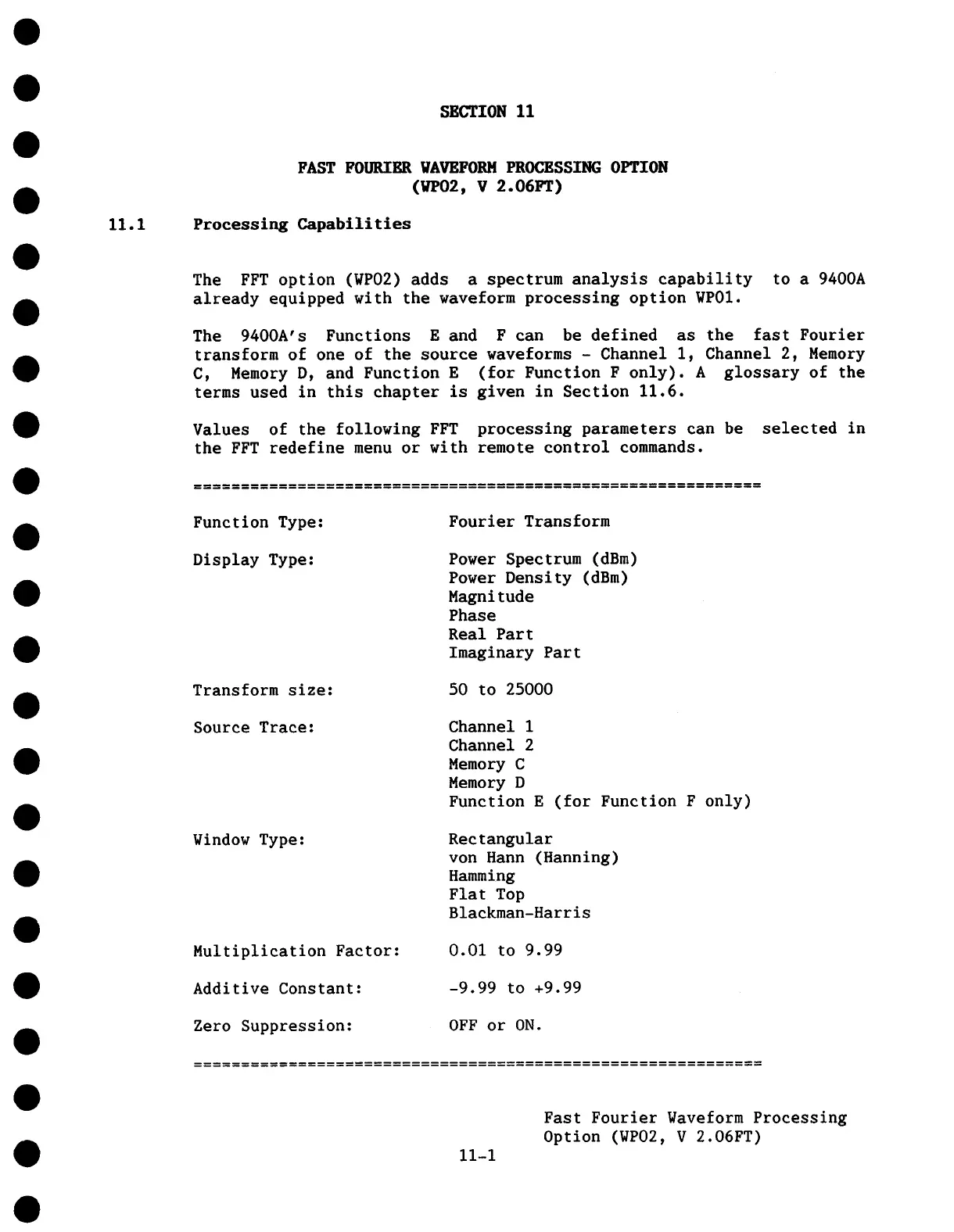

SECTION Ii
11.1
FAST FOURIER WAVEFORM PROCESSING OPTION
(WP02, V 2.06FT)
Processing Capabilities
The FFT option (WP02) adds a spectrum analysis capability to a 9400A
already equipped with the waveform processing option WP01.
The 9400A’s Functions E and F can be defined as the fast Fourier
transform of one of the source waveforms - Channel 1, Channel 2, Memory
C, Memory D, and Function E (for Function F only). A glossary of the
terms used in this chapter is given in Section 11.6.
Values of the following FFT processing parameters can be selected in
the FFT redefine menu or with remote control commands.
Function Type:
Display Type:
Transform size:
Source Trace:
Window Type:
Multiplication Factor:
Additive Constant:
Zero Suppression:
Fourier Transform
Power Spectrum (dBm)
Power Density (dBm)
Magnitude
Phase
Real Part
Imaginary Part
50 to 25000
Channel 1
Channel 2
Memory C
Memory D
Function E (for Function F only)
Rectangular
von Hann (Hanning)
Hamming
Flat Top
Blackman-Harris
0.01 to 9.99
-9.99 to +9.99
OFF or ON.
11-1
Fast Fourier Waveform Processing
Option (WP02, V 2.06FT)
