SECTION 2
PRODUCT DESCRIPTION
2.1 Introduction
The LeCroy 9400A is a high-performance digital oscilloscope suited to
research and to test and measurement applications. It is used to
capture, analyze, display and archive electrical waveforms in fields
such as electronic engineering, physics research, automated testing and
measurement, telecommunications, electromagnetic pulse and interference
measurement, LIDAR technology and ultrasonics research.
2.2 9400A Architecture
The 9400A has been built around the powerful 68000 microprocessor which
is used by the unit to perform computations and control oscilloscope
operation.
Att~uator Amplifier 5omple 4. AOC
Acqulsition Processor +
hold memory
interfaces
AC
Offsel Gain ....
r15112C
""
!

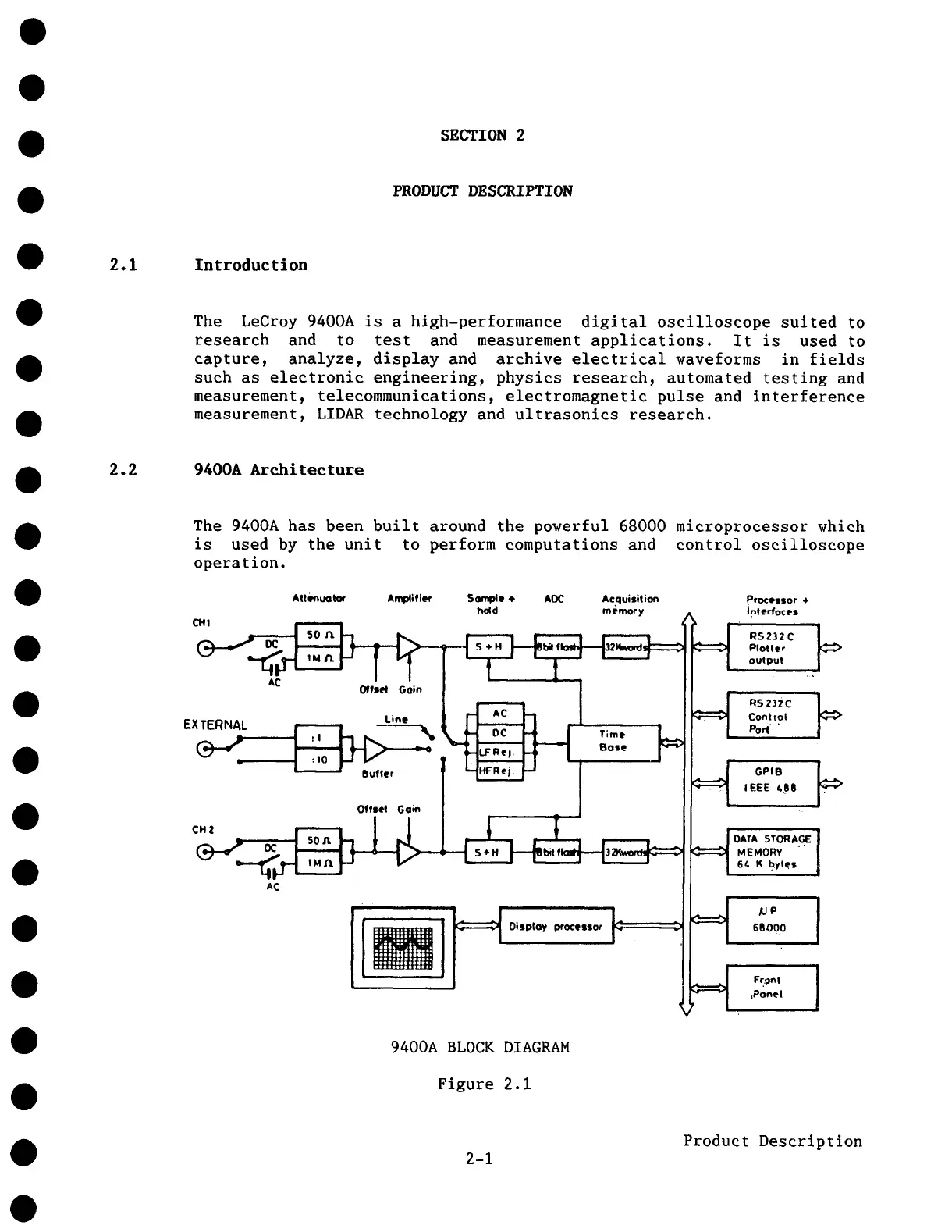

9400A BLOCK DIAGRAM
Figure 2.1
Product Description
2-1
