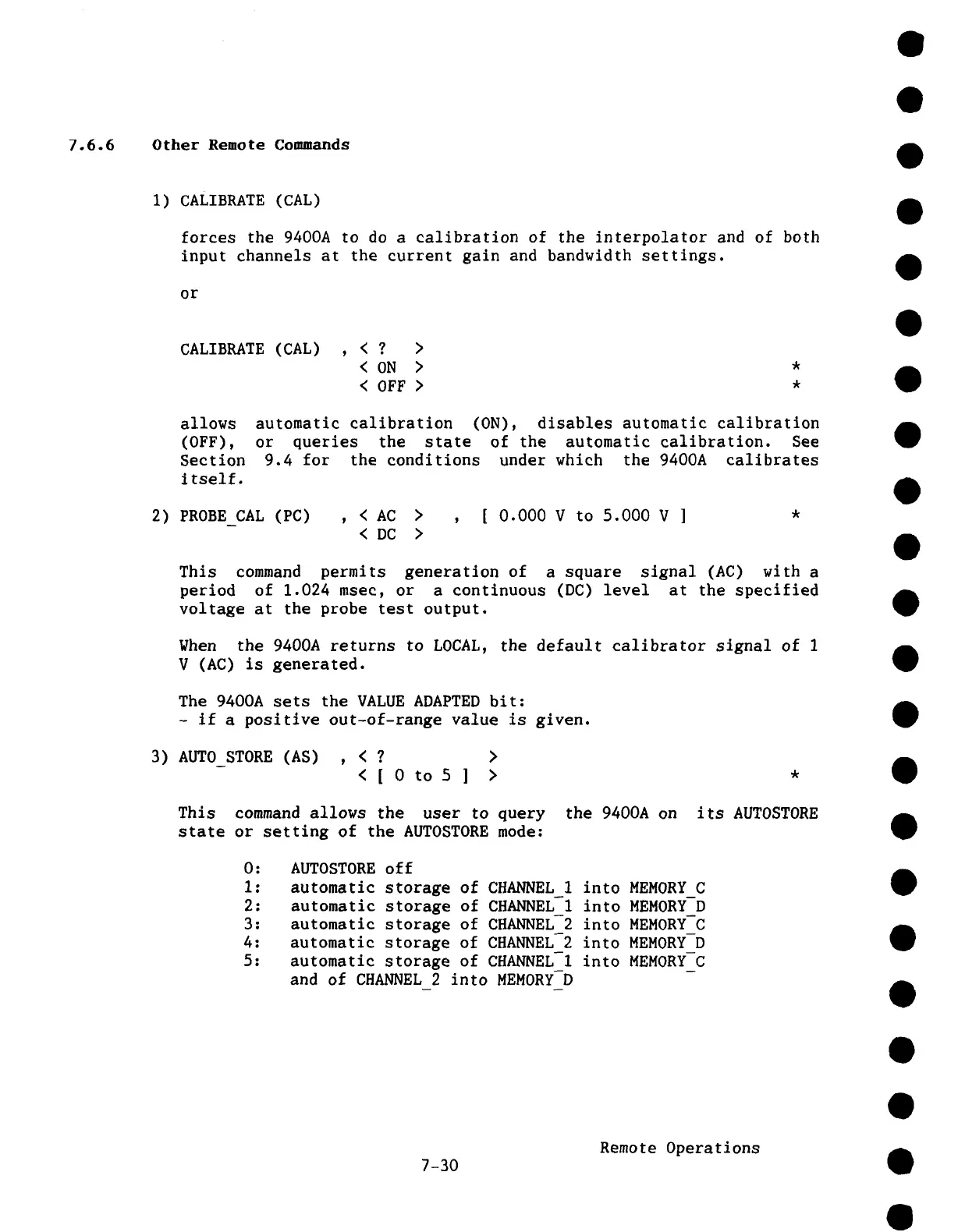

7.6.6 Other Remote Commands
1) CALIBRATE (CAL)
forces the 9400A to do a calibration of the interpolator and of both
input channels at the current gain and bandwidth settings.
or
CALIBRATE (CAL) , <? >
< ON > *
< OFF > *
allows
(OFF),
Section
itself.
automatic calibration (ON), disables automatic calibration
or queries the state of the automatic calibration. See
9.4 for the conditions under which the 9400A calibrates
2) PROBE CAL (PC) , < AC >
< DC >
, [ 0.000 V to 5.000 V ]
This command permits generation of a square signal (AC) with
period of 1.024 msec, or a continuous (DC) level at the specified
voltage at the probe test output.
When the 9400A returns to LOCAL, the default calibrator signal of 1
V (AC) is generated.
The 9400A sets the VALUE ADAPTED bit:
- if a positive out-of-range value is given.
3) AUTO STORE (AS) , ? >
<[0toS] >
This
command allows the user to query the 9400A on its AUTOSTORE
state
or setting of the AUTOSTORE mode:
O:
i:
2:
3:
4:
5:
AUTOSTORE off
automatic storage of CHANNEL 1 into MEMORY C
automatic storage of CHANNEL-1 into MEMORY-D
automatic storage of CHANNEL-2 into MEMORY-C
automatic storage of CHANNEL-2 into MEMORY-D
automatic storage of CHANNEL-1 into MEMORY-C
and of CHANNEL 2 into MEMORY-D
Remote Operations
7-30
