LeCroy 9400A

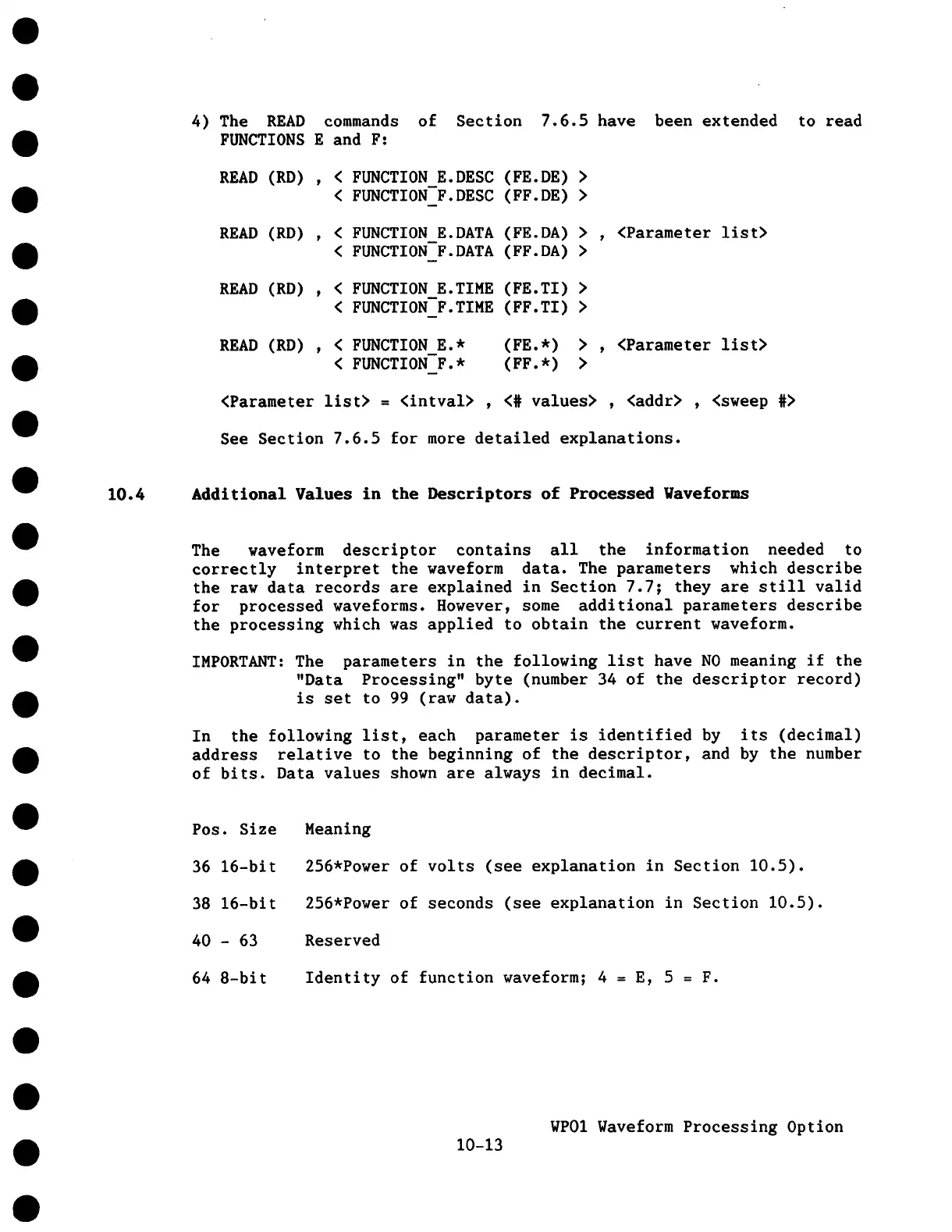

4)
The READ commands of Section 7.6.5 have been extended to read
FUNCTIONS E and F:
READ (RD)
< FUNCTION E.DESC (FE.DE)
< FUNCTION-F.DESC (FF.DE)
READ (RD) , < FUNCTION E.DATA (FE.DA) > , <Parameter list>
< FUNCTION-F.DATA (FF.DA)
READ (RD) , FUNCTION E.TIME (FE.TI) >
< FUNCTION-F.TIME (FF.TI)
READ (RD) , < FUNCTION E.*
< FUNCTION-F.*
(FE.*) > , <Parameter list>
(FF.*)
>
<Parameter list> = <intval> , <# values> , <addr> , <sweep #>
See Section 7.6.5 for more detailed explanations.
10.4 Additional Values in the Descriptors of Processed Waveforms
The waveform descriptor contains all the information needed to
correctly interpret the waveform data. The parameters which describe
the raw data records are explained in Section 7.7; they are still valid
for processed waveforms. However, some additional parameters describe
the processing which was applied to obtain the current waveform.
IMPORTANT: The parameters in the following list have NO meaning if the
"Data Processing" byte (number 34 of the descriptor record)
is set to 99 (raw data).
In the following list, each parameter is identified by its (decimal)
address relative to the beginning of the descriptor, and by the number
of bits. Data values shown are always in decimal.
Pos. Size
36 16-bit
38 16-bit
40 - 63
64 8-bit
Meaning
256*Power of volts (see explanation in Section 10.5).
256*Power of seconds (see explanation in Section 10.5).
Reserved
Identity of function waveform; 4 = E, 5 = F.
10-13
WPOI Waveform Processing Option
