4.6
Message Field (VI)
Messages appearing in field (Vl) indicate the 9400A’s current
acquisition status or report improper manipulation of the front panel
controls. The following figure illustrates a typical message displayed
in the Message field.
Channel 1
5~e 20mV
Channel 2
5~ .5 V
Ch~ 20mV
T/dlv 5~m 012 .5 V
~
Trig S.O8dtv+CHAN ~

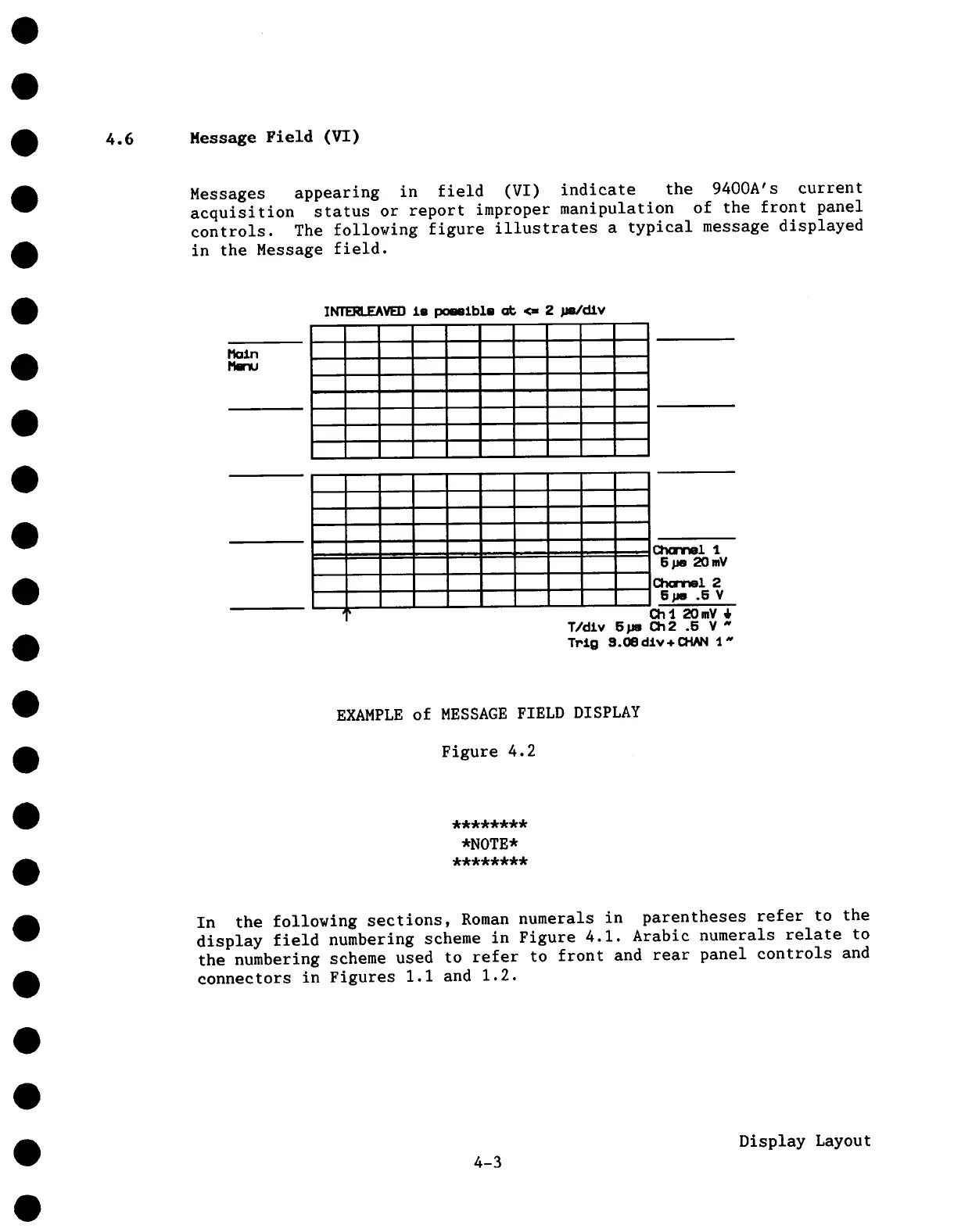

EXAMPLE of MESSAGE FIELD DISPLAY
Figure 4.2
********
*NOTE*
********
In the following sections, Roman numerals in parentheses refer to the
display field numbering scheme in Figure 4.1. Arabic numerals relate to
the numbering scheme used to refer to front and rear panel controls and
connectors in Figures i.I and 1.2.
4-3
Display Layout
