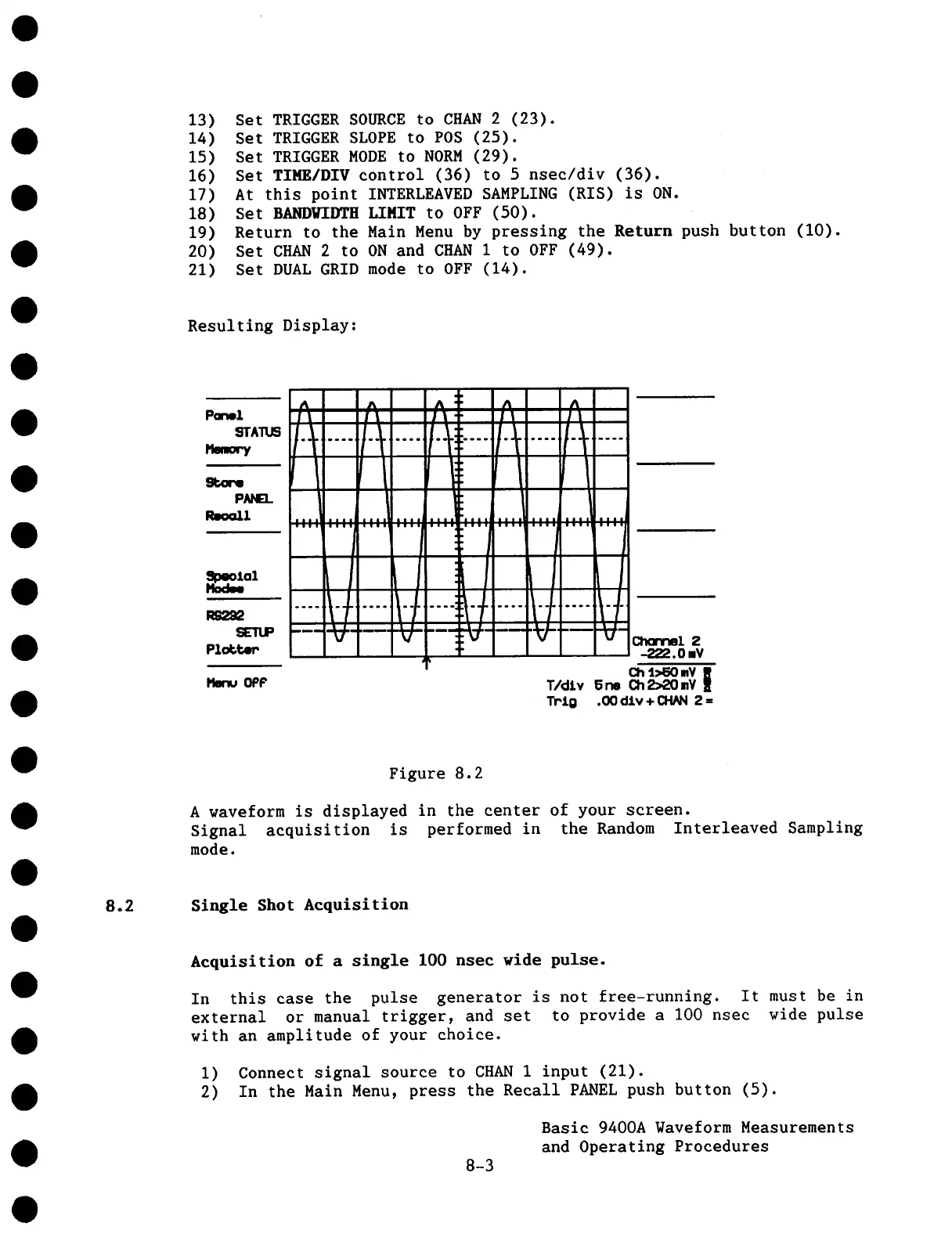

13) Set TRIGGER SOURCE to CHAN 2 (23).
14) Set TRIGGER SLOPE to POS (25).
15) Set TRIGGER MODE to NORM (29).
16) Set TIME/DIV control (36) to 5 nsec/div (36).
17) At this point INTERLEAVED SAMPLING (RIS) is ON.
18) Set BANDWIDTH LIMIT to OFF (50).
19) Return to the Main Menu by pressing the Return push button (I0).
20) Set CHAN 2 to ON and CMAN 1 to OFF (49).
21) Set DUAL GRID mode to OFF (14).
Resulting Display:
Parwl
STATUS
Store
PANEL
Reo=tl
A : ~
A
I% It II
r: .... ......
Trio
.00 dlv+ CItAN Z ffi
Figure 8.2
A waveform is displayed in the center of your screen.
Signal acquisition is performed in the Random Interleaved Sampling
mode.
8.2
Single Shot Acquisition
Acquisition of a single 100 nsec wide pulse.
In this case the pulse generator is not free-running. It must be in
external or manual trigger, and set to provide a I00 nsec wide pulse
with an amplitude of your choice.
l)
Connect signal source to CHAN 1 input (21).
2)
In the Main Menu, press the Recall PANEL push button (5).
Basic 9400A Waveform Measurements
and Operating Procedures
8-3
