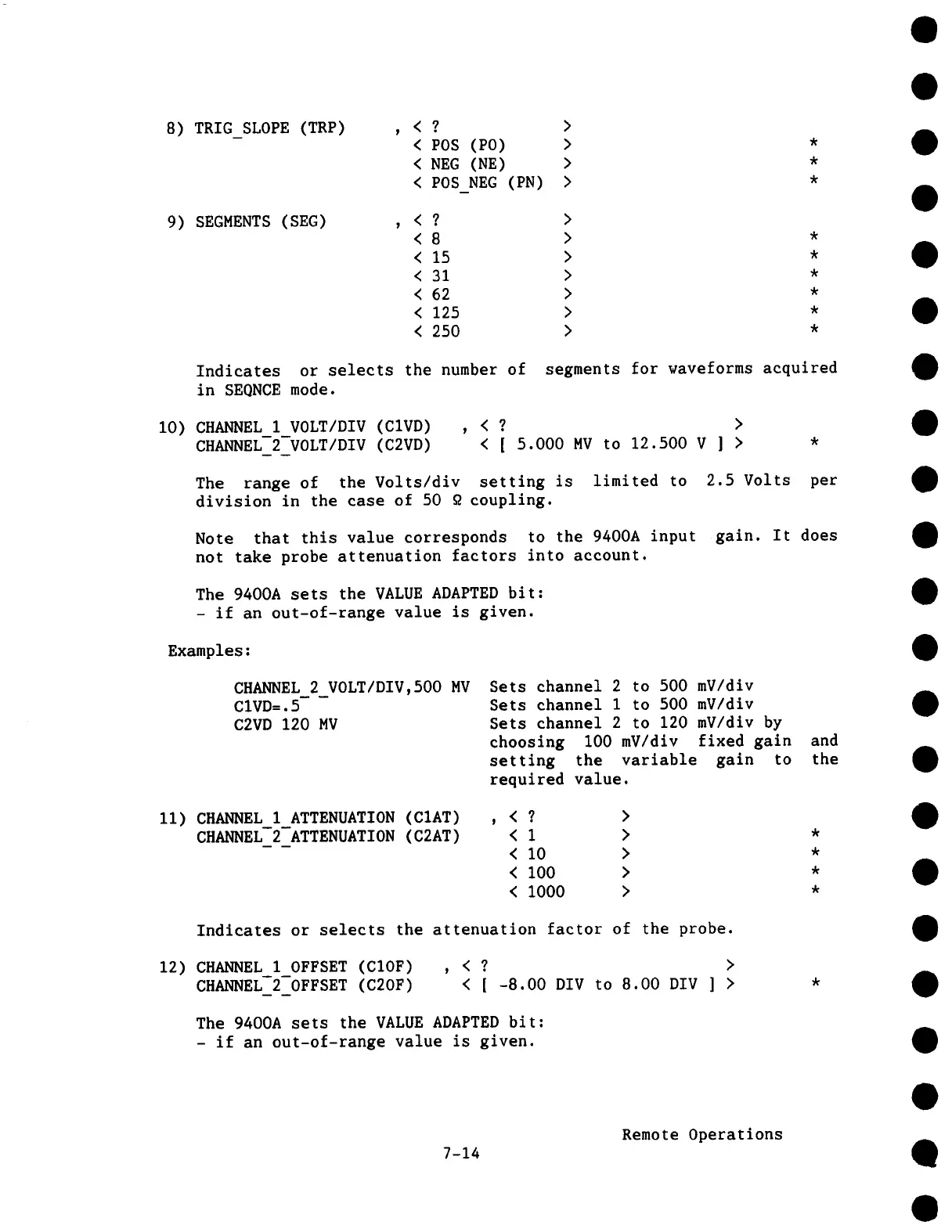

8) TRIG SLOPE (TRP)
9) SEGMENTS (SEG)
, < ?
>
< POS (P0)
>
*
< NEG (NE)
>
*
< POS NEG (PN)
*
, <?
>
<8
>
*
< 15
>
*
< 31 > *
< 62 > *
< 125 > *
< 250
>
*
Indicates or selects the number of segments for waveforms acquired
in SEONCE mode.
i0)
CHANNEL 1 VOLT/DIV (CIVD)
CHANNEL 2 VOLT/DIV (C2VD)
, <? >
< [ 5.000 MV to 12.500 V ] >
The range of the Volts/div setting is limited to 2.5 Volts per
division in the case of 50 Q coupling.
Note that this value corresponds to the 9400A input gain. It does
not take probe attenuation factors into account.
The 9400A sets the VALUE ADAPTED bit:
- if an out-of-range value is given.
Examples:
CHANNEL_2_VOLT/DIV,500 MV
CIVD=.5
C2VD 120 MV
Sets channel 2 to 500 mV/div
Sets channel 1 to 500 mV/div
Sets channel 2 to 120 mV/div by
choosing I00 mV/div fixed gain and
setting the variable gain to the
required value.
ii) CHANNEL 1 ATTENUATION (CIAT)
CHANNEL 2 ATTENUATION (C2AT)
, <? >
< i > *
< I0
>
*
< i00 > *
< I000 > *
Indicates or selects the attenuation factor of the probe.
12) CHANNEL 1 OFFSET (CIOF)
CHANNEL 2 OFFSET (C20F)
, <? >
< [ -8.00 DIV to 8.00 DIV ] >
The 9400A sets the VALUE ADAPTED bit:
- if an out-of-range value is given.
7-14
Remote Operations
