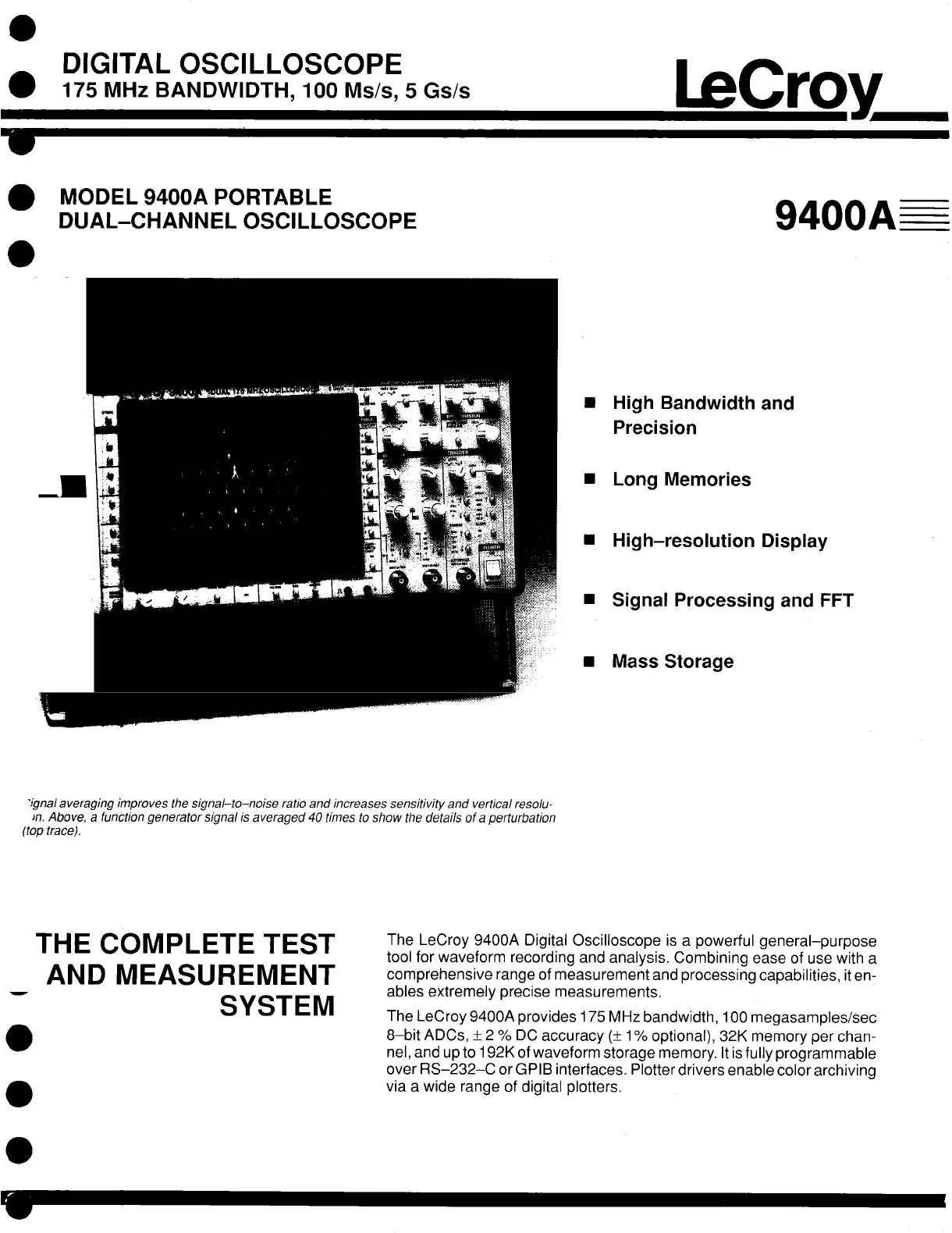

DIGITAL OSCILLOSCOPE
175 MHz BANDWIDTH, 100 Ms/s, 5 Gs/s
LeCroy
MODEL 9400A PORTABLE
DUAL-CHANNEL OSCILLOSCOPE 9400A
¯
High Bandwidth and
Precision
¯ Long Memories
¯ High-resolution Display
¯ Signal Processing and FFT
¯ Mass Storage
"ignal averaging improves the signal-to-noise ratio and increases sensitivity and vertical resolu-
in. Above, a function generator signal is averaged 40 times to show the details of a perturbation
(top trace).
THE COMPLETE TEST
AND MEASUREMENT
SYSTEM
The LeCroy 9400A Digital Oscilloscope is a powerful general-purpose
tool for waveform recording and analysis. Combining ease of use with a
comprehensive range of measurement and processing capabilities, it en-
ables extremely precise measurements.
The LeCroy 9400A provides 175 MHz bandwidth, 100 megasamples/Sec
8-bit ADCs, + 2 % DC accuracy (+ 1% optional), 32K memory per chan-
nel, and up to 192K of waveform storage memory. It is fully programmable
over RS-232-C or GPIB interfaces. Plotter drivers enable color archiving
via a wide range of digital plotters.
