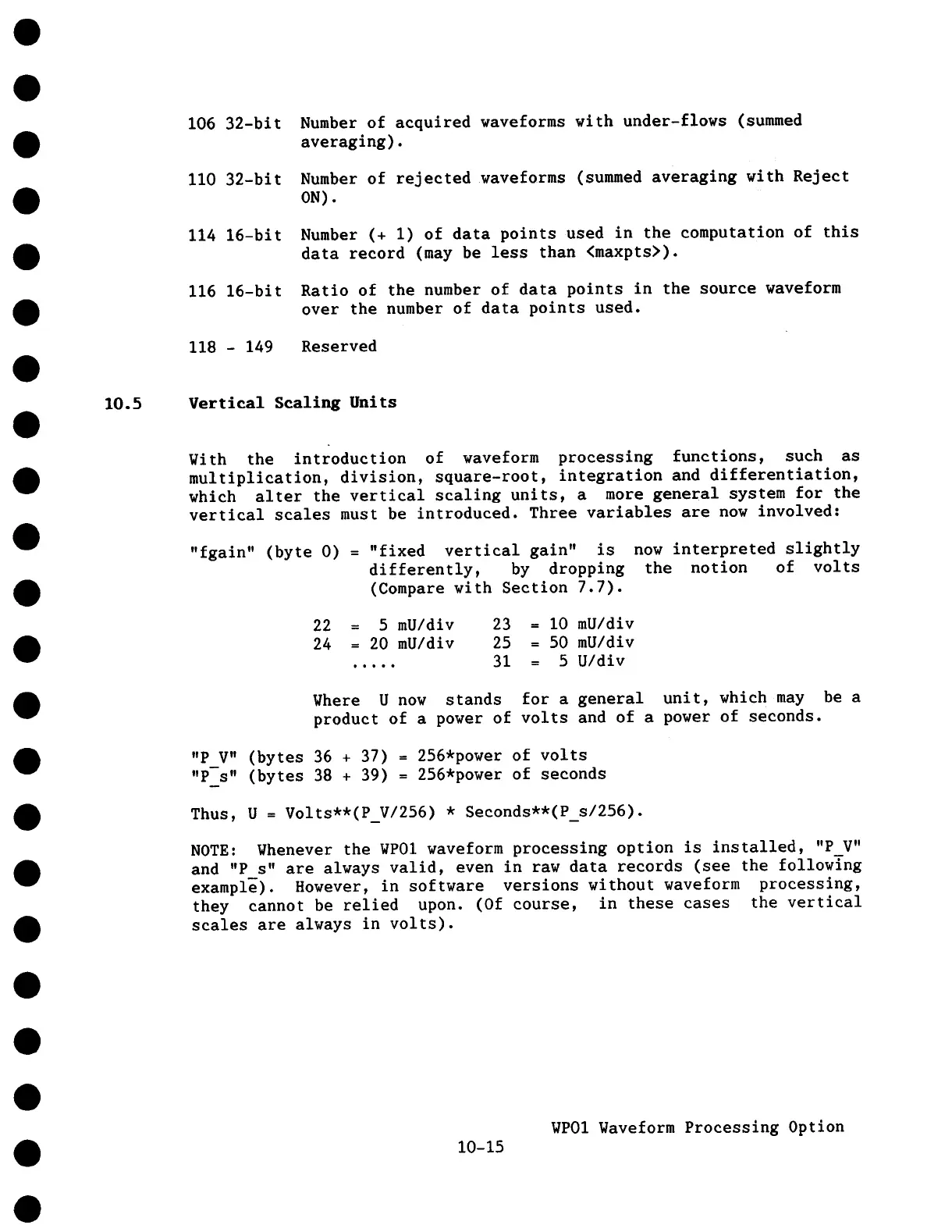

106 32-bit
110 32-bit
114 16-bit
116 16-bit
Number of acquired waveforms with under-flows (summed
averaging).
Number of rejected waveforms (summed averaging with Reject
ON).
Number (+ 1) of data points used in the computation of this
data record (may be less than <maxpts>).
Ratio of the number of data points in the source waveform
over the number of data points used.
118 - 149 Reserved
10.5 Vertical Scaling Units
With the introduction of waveform processing functions, such as
multiplication, division, square-root, integration and differentiation,
which alter the vertical scaling units, a more general system for the
vertical scales must be introduced. Three variables are now involved:
"fgain" (byte 0) = "fixed vertical gain"
differently, by dropping
(Compare with Section 7.7).
now interpreted slightly
the notion of volts
22 = 5 mU/div
23 = I0 mU/div
24 = 20 mU/div
25 = 50 mU/div
..... 31 = 5 U/div
Where U now stands for a general unit, which may be a
product of a power of volts and of a power of seconds.
"P V" (bytes 36 + 37) = 256*power of volts
"P-s" (bytes 38 + 39) = 256*power of seconds
Thus, U = Volts**(P_V/256) * Seconds**(P_s/256).
NOTE: Whenever the WP01 waveform processing option is installed, "P V"
and "P s" are always valid, even in raw data records (see the following
example). However, in software versions without waveform processing,
they cannot be relied upon. (Of course, in these cases the vertical
scales are always in volts).
10-15
WP01Waveform Processing Option
