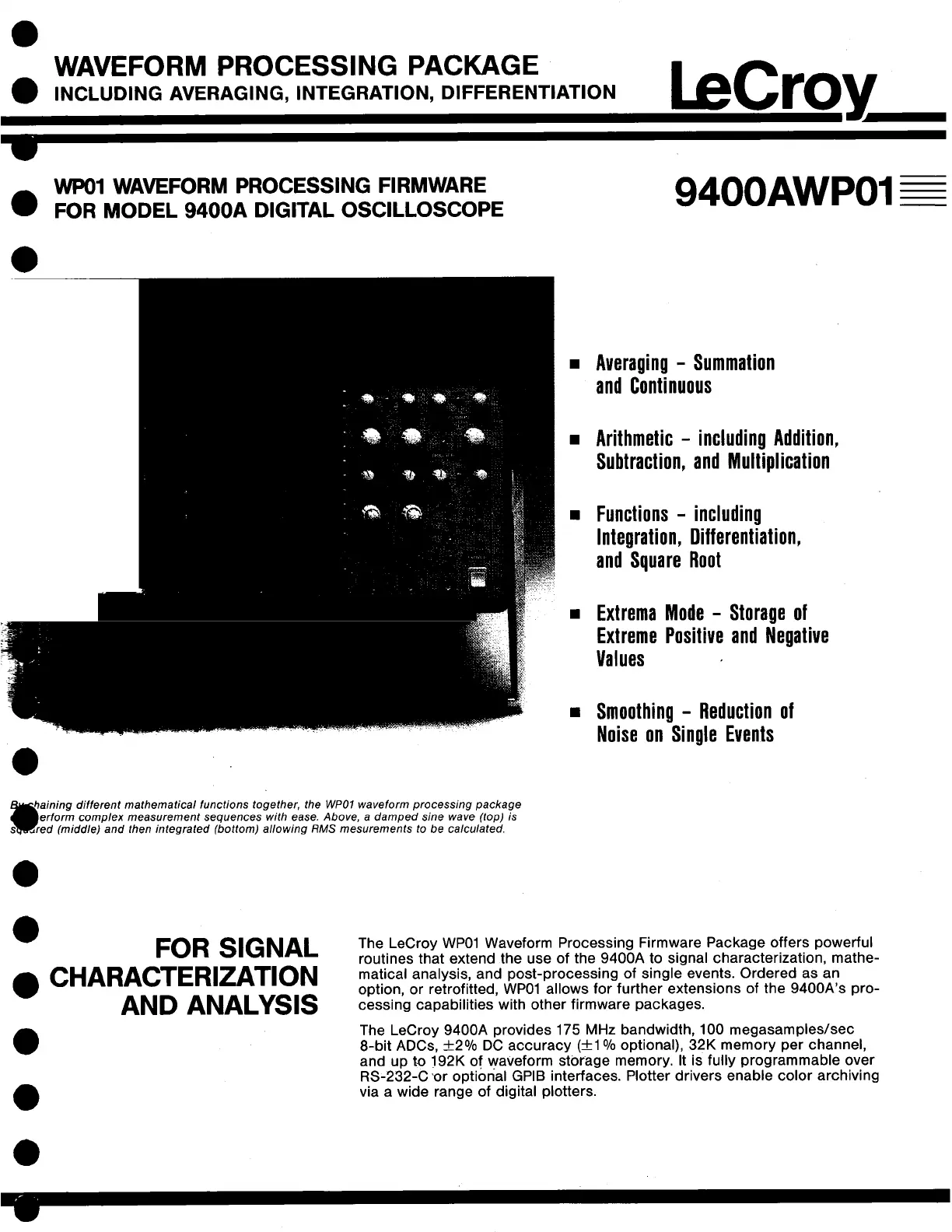

LeCroy 9400A

WAVEFORM PROCESSING PACKAGE
INCLUDING AVERAGING, INTEGRATION, DIFFERENTIATION
LeCroL
WP01 WAVEFORM PROCESSING FIRMWARE
FOR MODEL 9400A DIGITAL OSCILLOSCOPE
9400AWP01
¯
Averaging - Summation
and Continuous
¯
Arithmetic - including Addition,
Subtraction, and Multiplication
Functions -including
Integration, Differentiation,
and Square Root
Extrema Mode - Storage of
Extreme Positive and Negative
Values
¯ Smoothing - Reduction of
Noise on Single Events
s~raining different mathematical functions together, the WP01 waveform processing package
erform complex measurement sequences with ease. Above, a damped sine wave (top)
ed (middle) and then integrated (bottom) allowing RMS mesurements to be calculated.
FOR SIGNAL
¯ CHARACTERIZATION
AND ANALYSIS
The LeCroy WP01 Waveform Processing Firmware Package offers powerful
routines that extend the use of the 9400A to signal characterization, mathe-
matical analysis, and post-processing of single events. Ordered as an
option, or retrofitted, WP01 allows for further extensions of the 9400A’s pro-
cessing capabilities with other firmware packages.
The LeCroy 9400A provides 175 MHz bandwidth, 100 megasamples/sec
8-bit ADCs, +2% DC accuracy (+1% optional), 32K memory per channel,
and up to !92K of waveform storage memory. It is fully programmable over
RS-232-C ’or opti0rlal GPIB interfaces. Plotter drivers enable color archiving
via a wide range of digital plotters.
