St, ore
Trooe
1 ->
HImC
Ch~2 ->
FunoE->
HmC
Funo F ->
Chon 1. ->
HImD
Chart2 ->
FunoE ->
I’kmD
Funo F ->
Ret, ul-n/
Conoel
Chl 50mY I
T/dtv .2me Ch250mV
TPLQ
-- +LINE .
STORE TRACE MENU

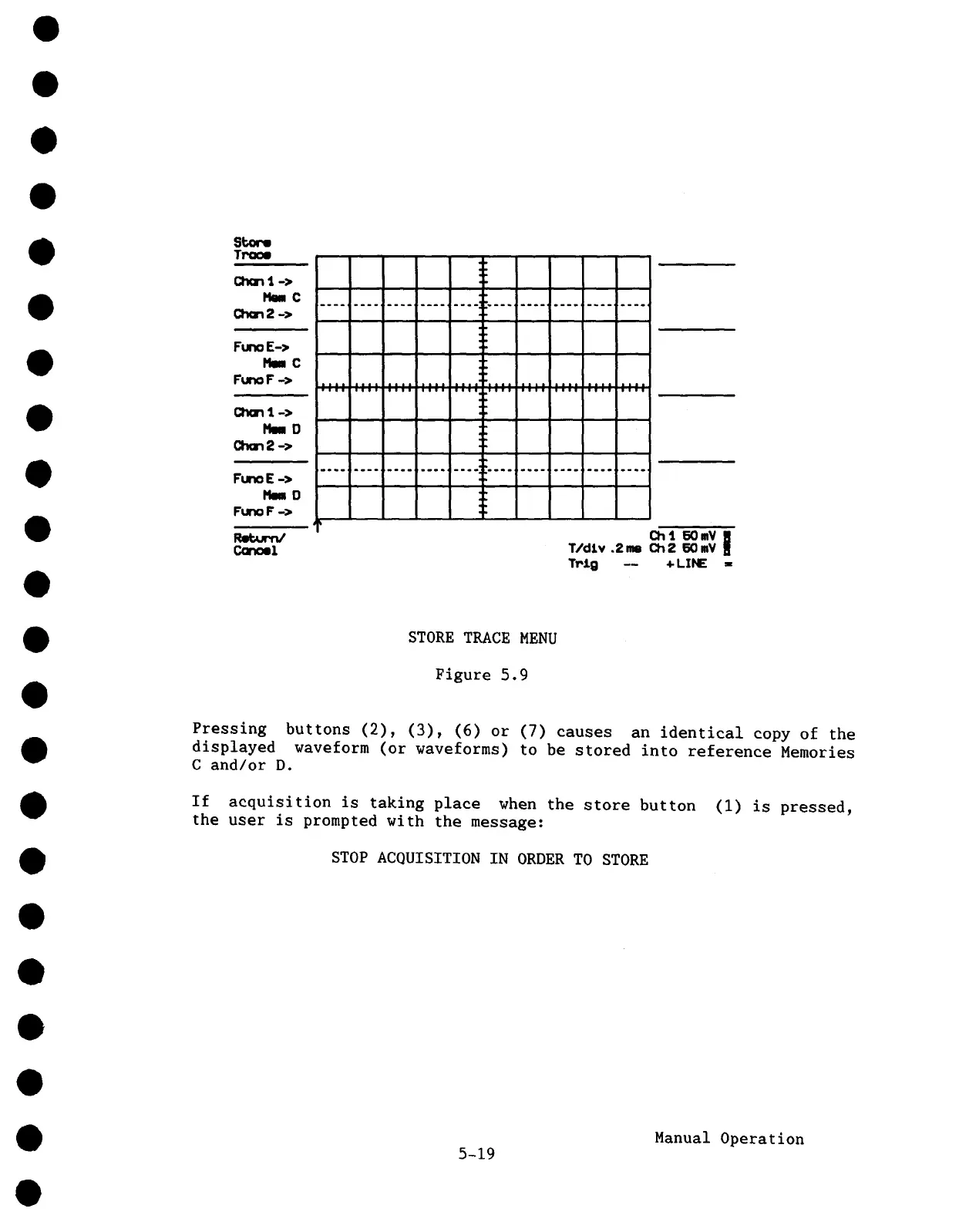

Figure 5.9
Pressing buttons (2), (3), (6) or (7) causes an identical copy
displayed waveform (or waveforms) to be stored into reference Memories
C and/or D.
If acquisition is taking place when the store button (I) is pressed,
the user is prompted with the message:
STOP
ACQUISITION IN ORDER TO STORE
Manual Operation
5-19
