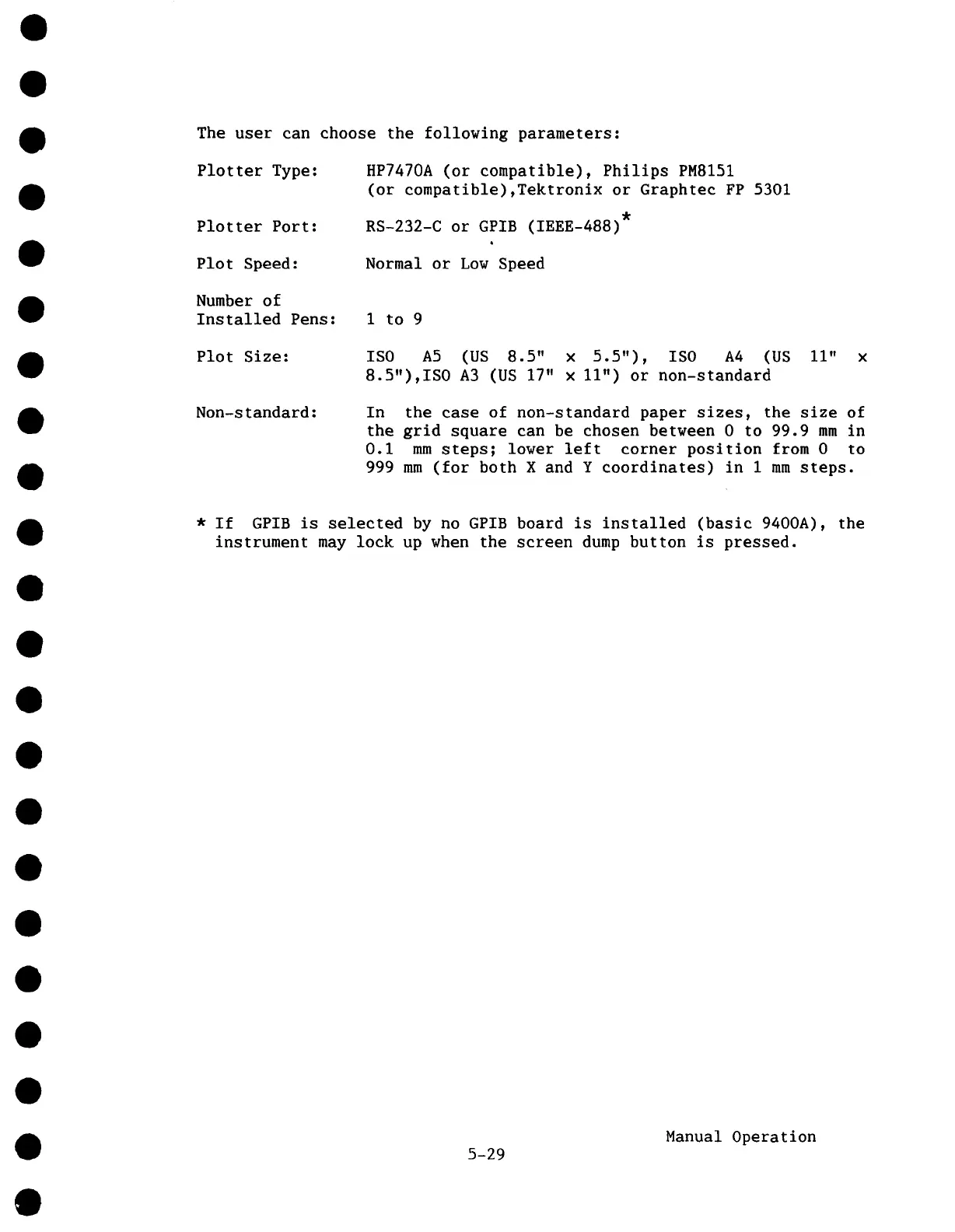

The user can choose the following parameters:
Plotter Type:
Plotter Port:
Plot Speed:
HP7470A (or compatible), Philips PM8151
(or compatible),Tektronix or Graphtec FP 5301
RS-232-C or GPIB (IEEE-488)
Normal or Low Speed
Number of
Installed Pens: I to9
Plot Size:
ISO A5 (US 8.5" x 5.5"), ISO A4 (US ii"
8.5"),IS0 A3 (US 17" x ii") or non-standard
Non-standard: In the case of non-standard paper sizes, the size of
the grid square can be chosen between 0 to 99.9 mm in
0.I mm steps; lower left corner position from 0 to
999 mm (for both X and Y coordinates) in I mm steps.
* If GPIB is selected by no GPIB board is installed (basic 9400A), the
instrument may lock up when the screen dump button is pressed.
Manual Operation
5-29
