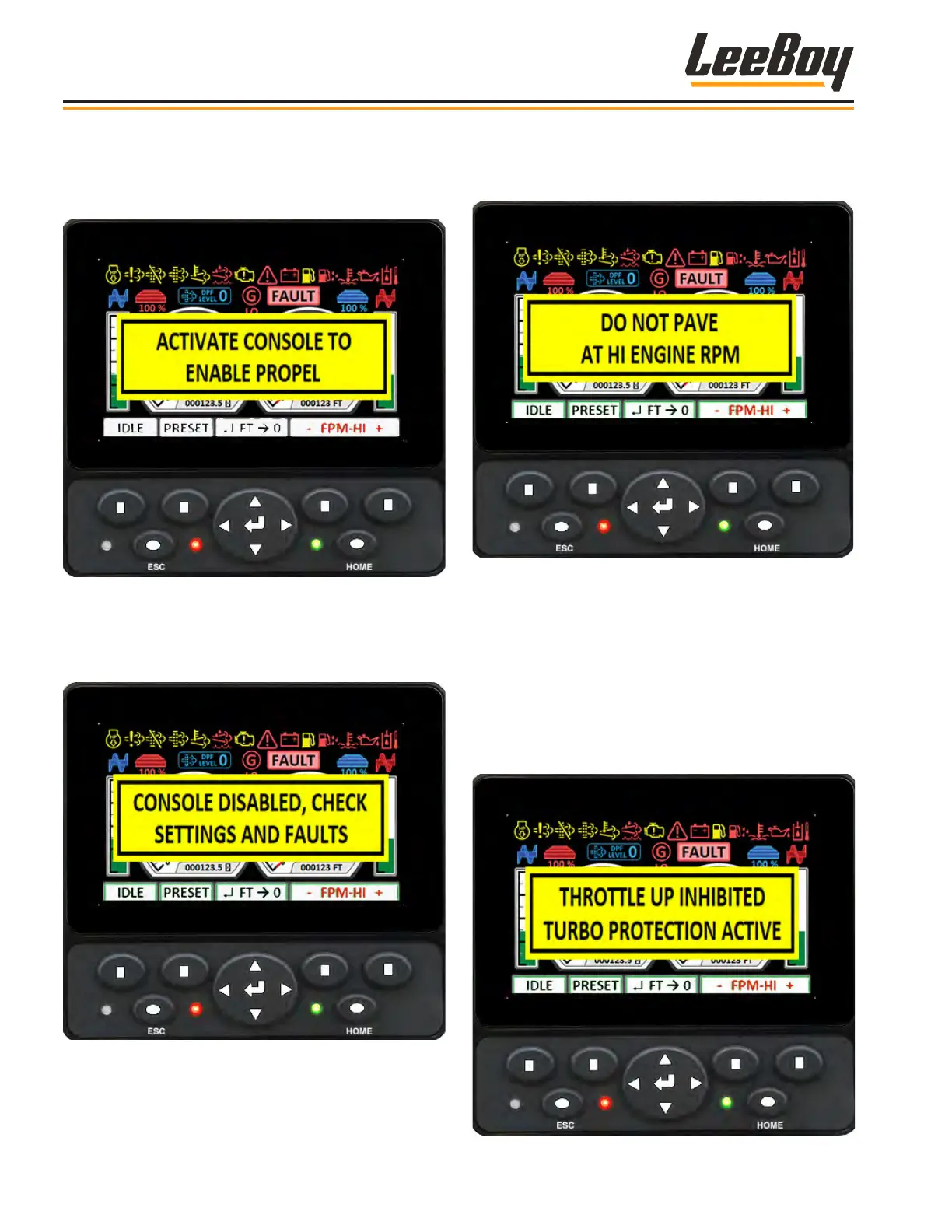

If the operator is attempting to use the joystick(s) on an
inactive console, the following message appears that
noties operator to activate the control panel console.
(Figure 4-29)
Figure 4-29. Activate Console Alert
If the control panel or a joystick is disabled or faulty, the
following message appears: (Figure 4-30)
Figure 4-30. Joysticks Must Be in Neutral Alert
The following message alert appears if the operator
sets the RPMs above the Pave Hi (high) preset. (Figure
4-31)
Figure 4-31. High Engine RPM Alert
The following messages appears if the RPM is set
above idle while turbo protection is active. (Figure
4-32)
NOTE: The turbo protection feature takes control of
the throttle for the rst 1 - 30 seconds based
on ambient temperatures. It does not allow
the engine RPM to increase to ensure proper
lubrication to the turbo and cylinders before
increasing RPMs.
Figure 4-32. Throttle Up Inhibited Alert
Operation
LeeBoy Model 5300B Compact Paver4-26
