11
24/09/2013
0883 27
3576

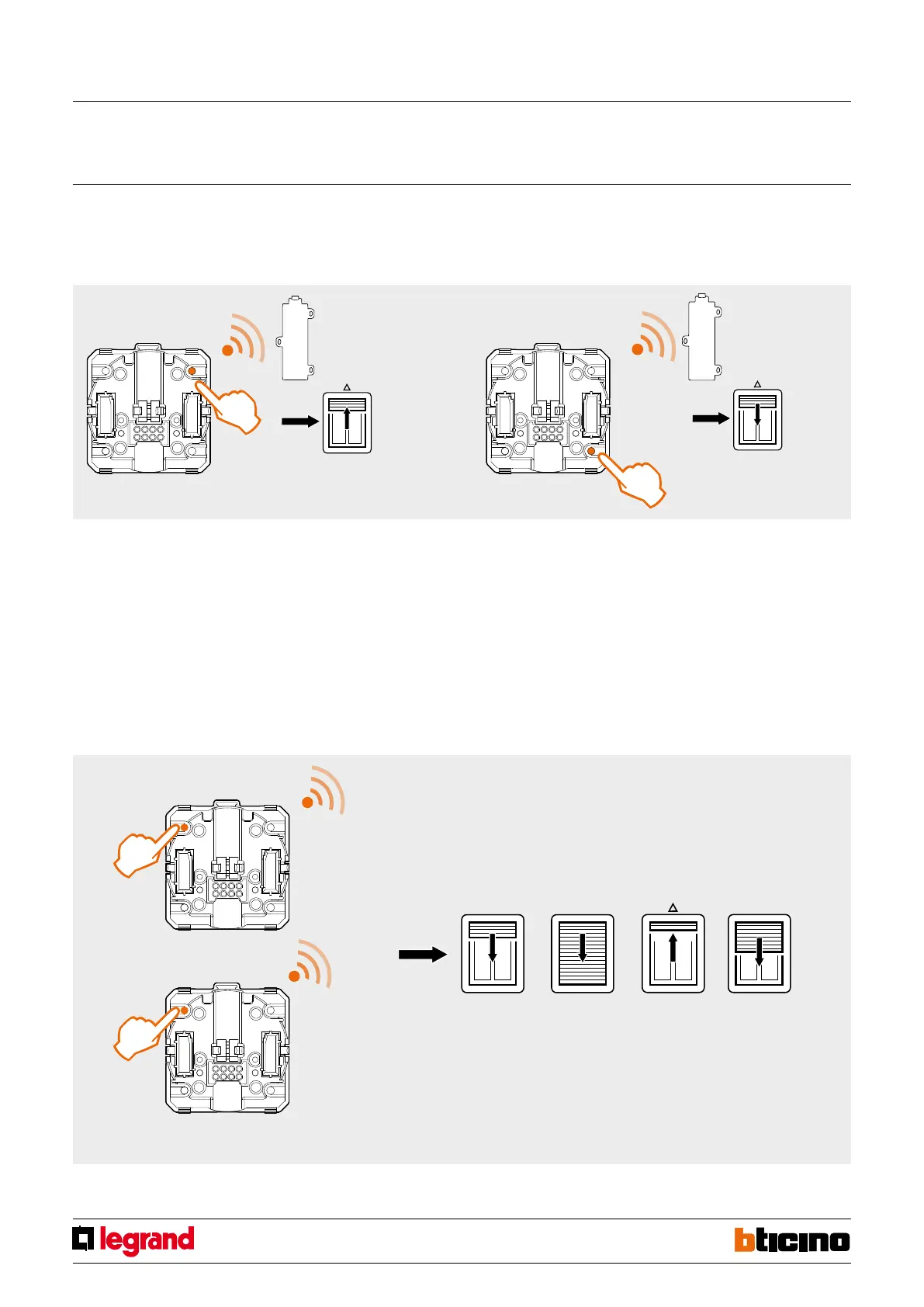

Use of the device in monostable mode
Opening and closing the rolling shutter:
Press and hold down the UP and DOWN Pushbuttons until the desired rolling shutter position.
Shutter control Shutter control
Saving of the PRESET position (opening the rolling shutter to a preset position)
The rolling shutter control device for the management of the actuator can also
be enabled to set the rolling shutters to a preset position, using the appropriate
pushbutton (Preset).
The procedure for storing the position is performed in two different stages:
- calibration of the up and down movements times of the rolling shutter;
- saving of their positions. .
Calibration of the up and down movements times of the rolling shutter;:
1. Check if the rolling shutter motor is equipped with a traditional, or with an
electronic “limit switch”.
2. Fully open the rolling shutter.
3. In case of traditional limit switch, press the pushbutton shown in the picture
for more than 4 seconds. Press the pushbutton for less than 1 second in case of
electronic limit switch.
4. The rolling shutter will close completely, will open completely, and then will move
to the half open position. During this stage do not operate the device.
5. The device has saved the rolling shutter full opening and full closing time.
Now proceed with saving the desired position (Preset).
> 4 sec.
<1 sec.
Shutter control
Shutter control
Individual roller blind controller RF ZigBee for mounting in
technical compartment
MQ00491-c-EN
