RF ZigBee transmitter with auxiliary inputs (2 inputs)
This device gives the possibility of integrating traditional control devices (Two-way
switch, switch, or pushbutton) in MY HOME radio systems.
The interface has 3 cables identified with C, 1, and 2 respectively, which connect to a
two-way switch, or to a pushbutton.
The definition of the type of device connected (two-way switch, or pushbutton), and
therefore of the interface operating mode, is done using appropriate pushbuttons
found on the device itself; the preset mode (at the factory) requires connection to
a two-way switch.
By configuring the A, PL, and MOD sockets, it will be possible to use this interface,
together with the SCS/ZigBee gateway, for the radio extension of a MY HOME BUS
system. The device is inside a Basic container with reduced sizes, for installation in
flush mounted boxes, junction boxes, rolling shutter boxes, and trunking. Particularly
advantageous is the installation inside junction boxes, positioning the item at the
back of the flush mounted box, behind traditional devices.
Description
Power supply: No. 1 lithium battery, 3V, CR2032 type
Duration of the battery: 5 years
Operating temperature: 5 – 45 °C
Technology: Radio 2.4 GHz standard ZigBee®
Capacity: 150m free field;
15m in rooms with concrete walls
Technical data

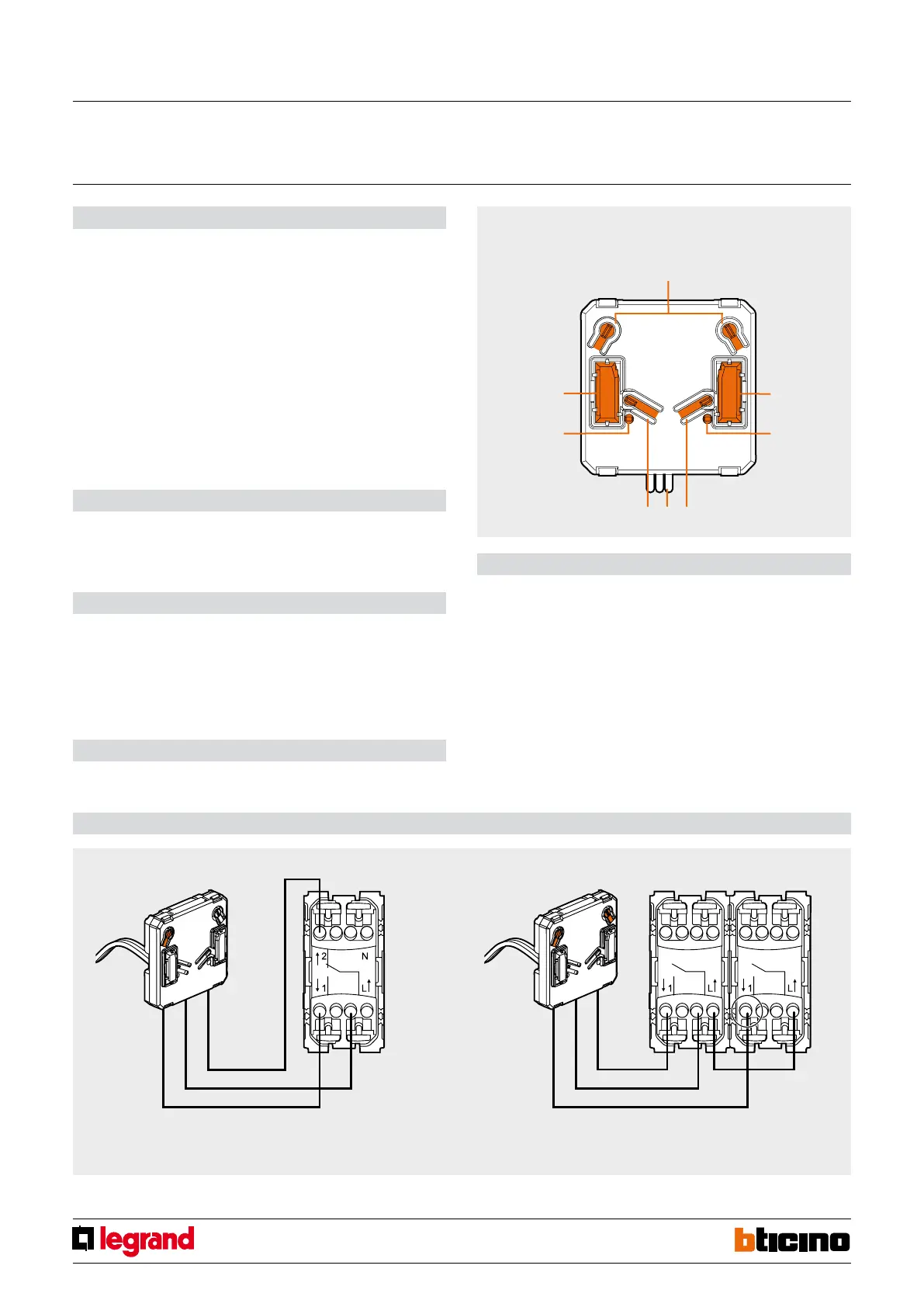

Wiring diagram
Front view
Legend
1. LEARNING LED
2. SCS My Home Configurator socket
3. Local CONTROL key
4. SCS My Home Configurator socket
5. NETWORK LED
6. NETWORK key
7. Wiring for connection to traditional devices
8. LEARNING key
Related items
Dimensional data
Size: basic module
Gateway SCS/ZigBee: HC/HD/HS4578 (Axolute),
L/N/NT4578N (Livinglight),
067250 (Arteor/Celiane)
Connection to a two-way switch Connection to two pushbuttons
MQ00492-c-EN
