Wiring diagram- STAND ALONE installation

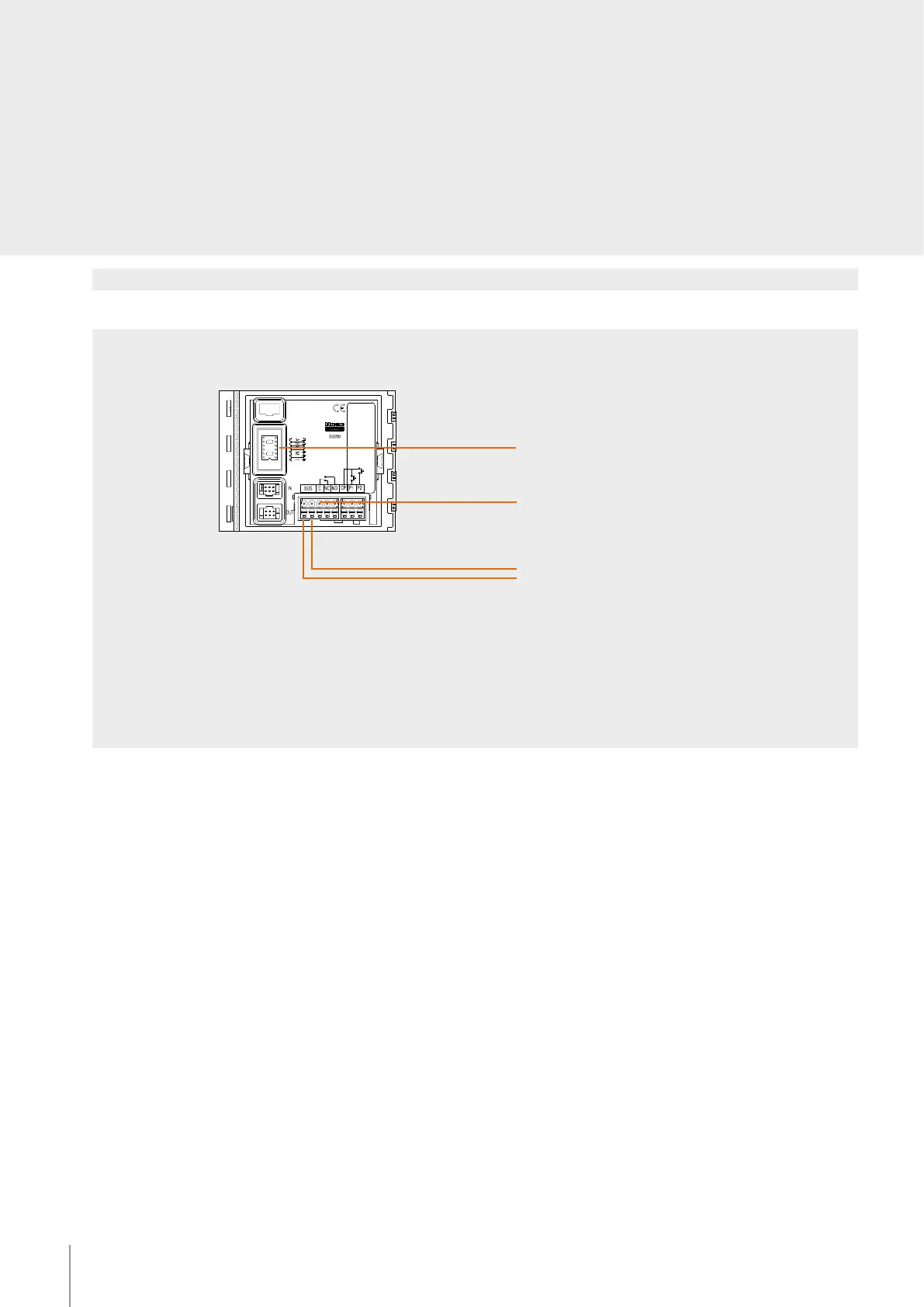

Example of STAND ALONE installation connection with the SCS BUS connected to the RFID module.
Keypad module 353200
SCS BUS
A + B + C = 003
(SCS device No. 3)
M - DO NOT CONFIGURE
T = 2 (contact closed for 10”)
Contact load:
8 A 30 Vdc
8 A 30 Vac cos@ 1
3.5 A 30 Vac cos@ 0.4
NOTE: The M = 1 configuration also gives the possibility of
managing APARTMENT MASTER badges. To add and/or delete
residents badges, the badge programmed as APARTMENT
MASTER badge is required.
