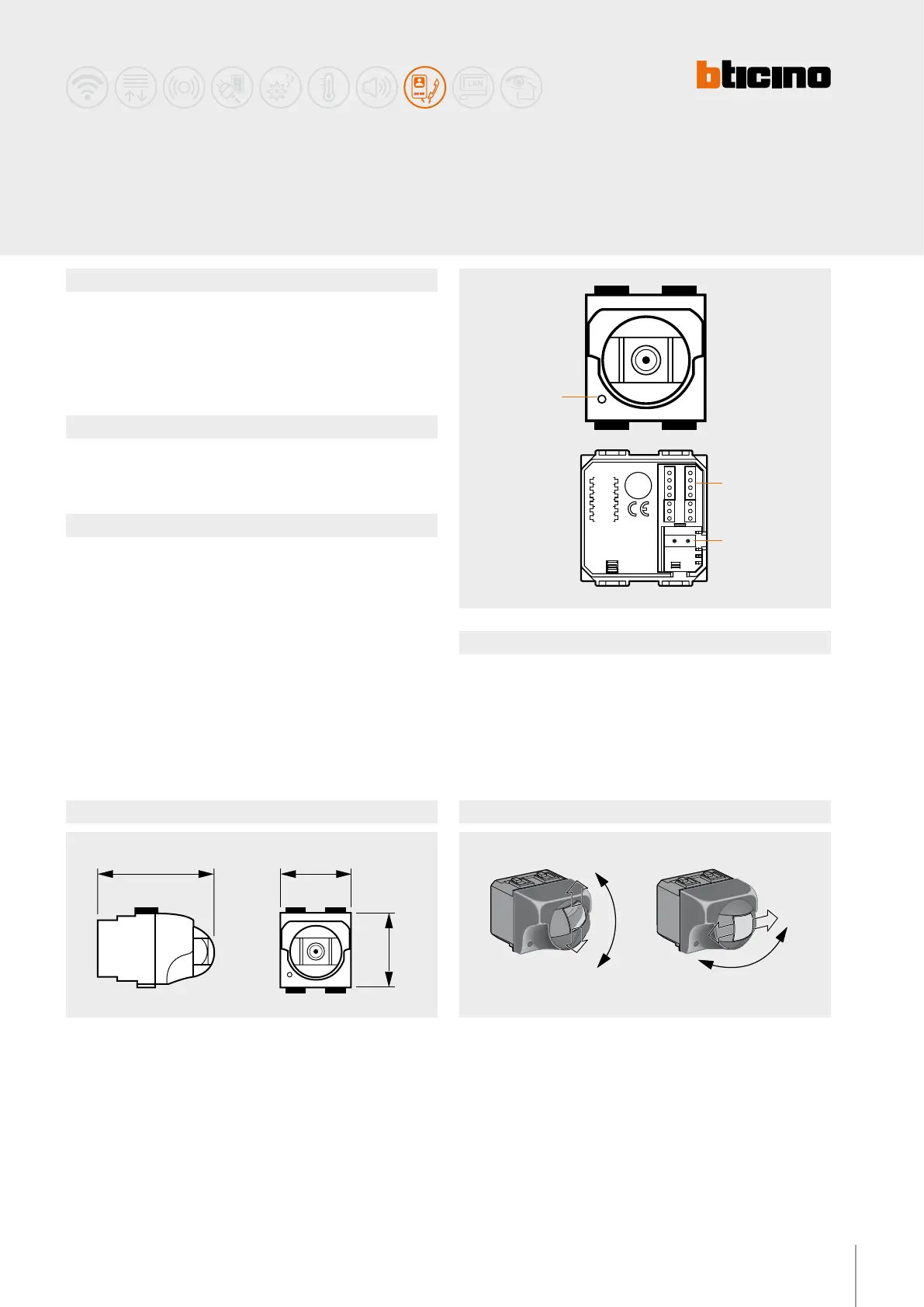

Dimensional data Camera adjustment
Legend
Description
2 wire indoor colour camera for video monitoring system functions. Flush mounted
or wall mounted installation using the dedicated accessories of the AXOLUTE, LIVING,
LIGHT, LIGHT TECH residential series.
WARNINGS : do not point the camera towards the sun or towards light sources.
Related items
The device must be completed with the accessories and the front cover plates of the
AXOLUTE, LIVING, LIGHT, LIGHT TECH residential series.
Refer to the corresponding catalogues.
Technical data
Power supply from SCS BUS: 18-27 Vdc
Sensor: from 1/3” colour CCD
Stand by absorption: 5 mA
Max. operating absorption: 140 mA
Lens: “semi pin-hole” 3.7 mm
Interlace: 2:1
Scanning: Standard CCIR
Horizontal frequency: 15625 Hz
Vertical frequency: 50 Hz
Image elements: 537 (H) x 597 (V)
Horizontal resolution: 380 TV lines at the image centre
Video signal: PAL compatible
Minimum illumination: 5 lux
Operating temperature: 5 – 40 °C
Flush mounted
2 wire indoor colour camera
1 - Microphone
2 - Congurator socket
3 - 2 WIRE BUS connection clamp
