84
C1 C2 C3 C4
1 2 4 53
M1
˜
M2
˜
Ap C Ch Ap C Ch
N
L
P
L1PL2PL3 PL4
BUS
C1 C2 C3 C4
1 2 4 53
1
2
L N
N
L
MIN 3 m
3
L N
4
5
L N
L N
F411/4

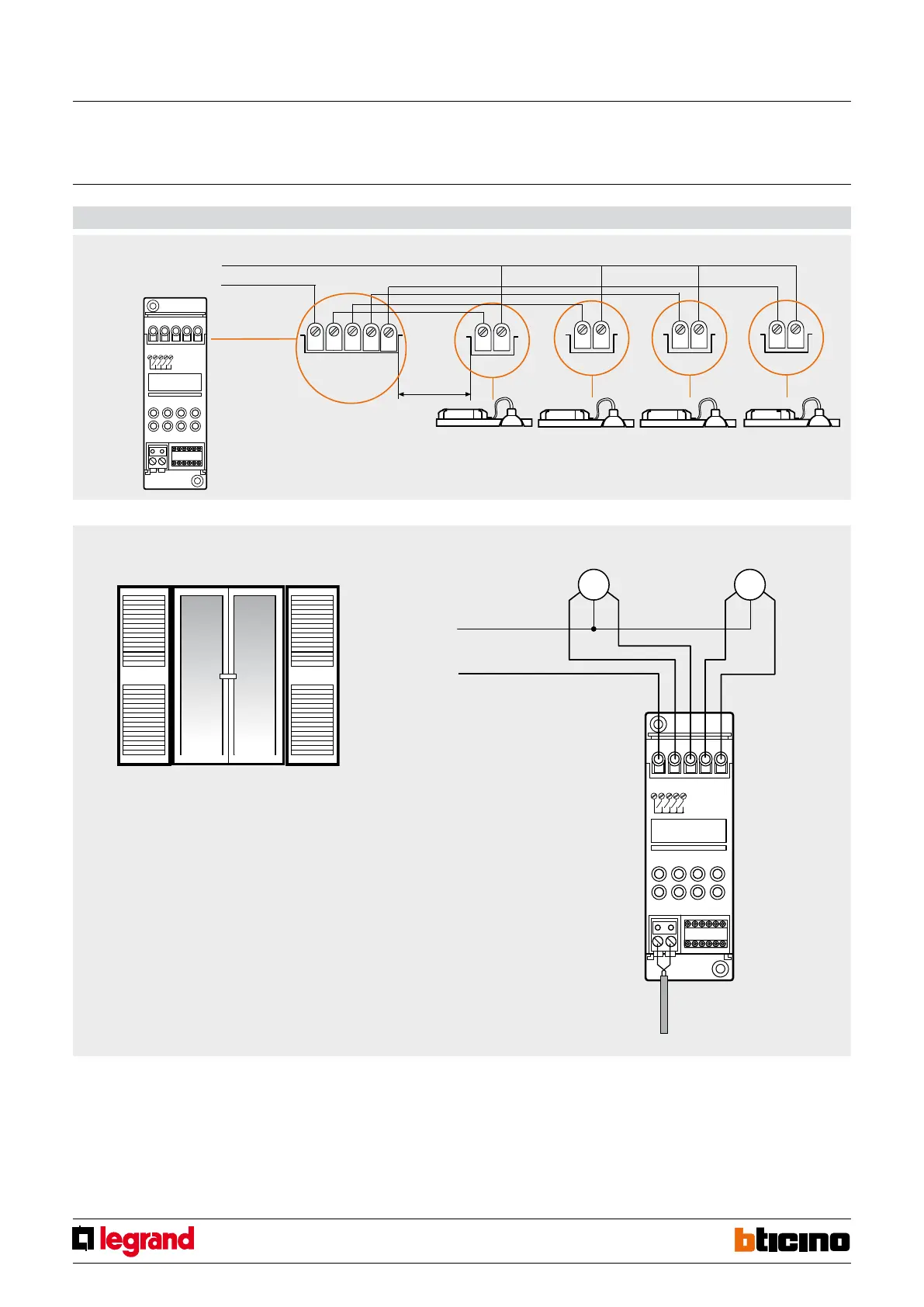

Wiring diagrams
Operation:
- The opening of the shutter with external rabbet must start before the one with internal
rabbet. The opening of PL1 will start 3 seconds after the start of PL3.
- The closing of the shutter with external rabbet must start after the one with internal
rabbet. The closing of PL4 will start 3 seconds after the start of PL2.
- The total time for the full opening/closing of the shutters must be adjustable between 15
and 25 seconds. This adjustment is possible during installation, based on the size of the
shutters, to allow for strong winds.
Diagram for shutter movement control
M1 = motor controlling the internal rabbet shutter
M2 = motor controlling the external rabbet shutter
PL1 and PL2 = contacts: they must be interlocked to each
other and must always be fitted to the
internal rabbet shutter
PL3 and PL4 = contacts: they must be interlocked to each
other and must always be fitted to the
external rabbet shutter
WARNING: configure PL1 = PL2 = PL3 = PL4
Diagram for connecting light devices
4 relay actuator 2A
MQ00276-e-EN 07/06/2014
