85
C1
2
+-
0-10V
1 NC 43
1
2
3
4
F413N

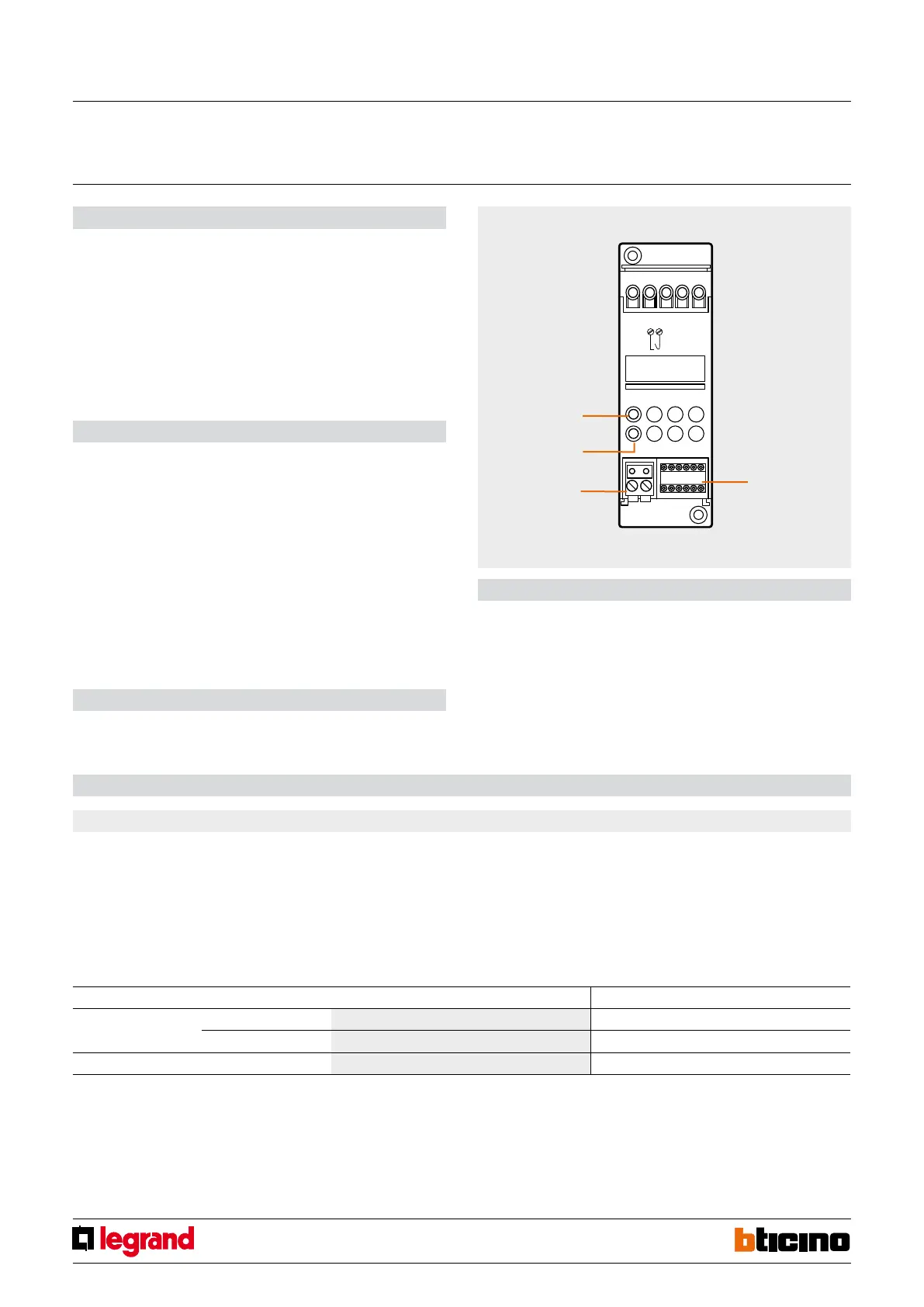

Legend
1. Configurator socket (note that this must only be used in My Home systems with the
physical configuration).
2. BUS connector
3. Load status LED
4. Load on/off button
Description
Control device for electronic ballast or driver power supply units with dimmer function; it
can supply fluorescent lamps or LED lamps and adjust their brightness depending on the
voltage, with values between 1 and 10V (max. 6mA), with which they are driven. From
any specially configured control point and connected to the BUS system one can switch
the lights connected on and off or set their brightness. Briefly pressing the control button
is enough to switch the load on or off, while holding it down will adjust the brightness.
The minimum brightness level and the type of load connected (Ballast for fluorescents or
driver for LEDs) can be selected during the configuration.
Dimensions
Size: 2 DIN modules
Technical data
Power supply via SCS BUS: 27 Vdc
Operating power supply with SCS BUS: 18 – 27 Vdc
Current draw: 30 mA
Operating temperature: (-5) – (+45) °C
Linear fluorescent lamps: 2A
460W@230Vac
220W@110Vac
Max 10 ballast type T5, T8,
compact or driver for LEDs
Dissipated power with max. load: 1 W
Protection index: IK04
Impact resistance: IP20
Dimmer for Electronic Ballast 1-10V
MQ00277-e-EN 07/06/2014
Configuration
If the device is installed in a My Home system it can be configured in two ways:
- PHYSICAL CONFIGURATION, inserting the configurators in position.
-
Configuration via MYHOME_Suite software package, downloadable from
www.homesystems-legrandgroup.com; this mode has the advantage of offering many
more options than the physical configuration.
For a list of the procedures and their meanings, please refer to the instructions in this
sheet and to the "Function Descriptions" help section in the MYHOME_Suite software
package.
1. My Home system
1.1 Addressing
Address type Virtual configuration (MYHOME_Suite) Physical configuration
Point-to-point Room 0-10 A=1-9
Lighting point 0-15 PL=1-9
Group Group 1 - Group 10 = 0-255 G = 0-9
