Diagnosis and troubleshooting
Leuze electronic GmbH + Co. KG BPS 348i 104
10.2 Operating indicators of the LEDs
You can ascertain general causes of errors via the PWR and BUS status LEDs (see chapter 3.3 "Display
elements").

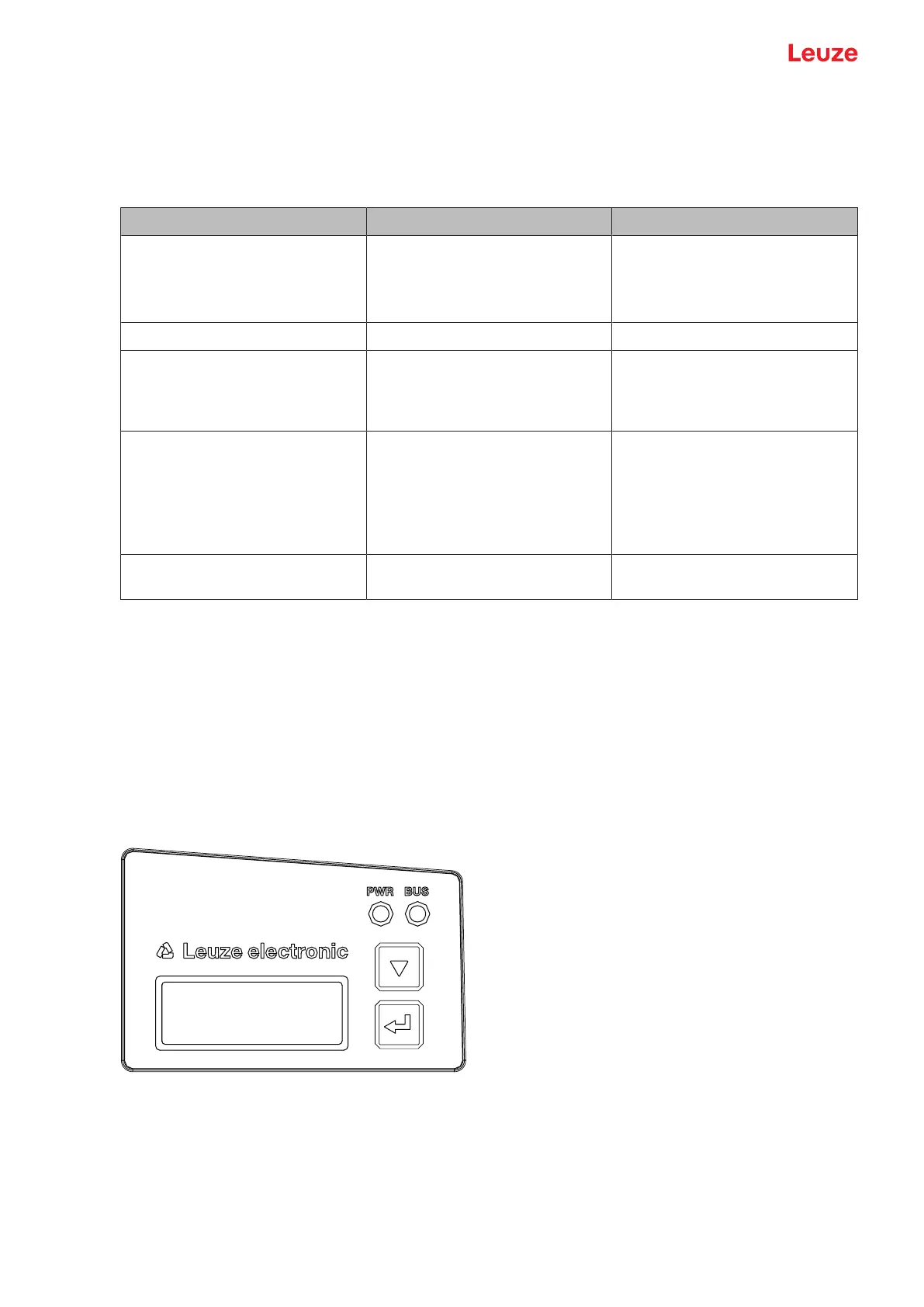

Tab.10.2: PWRLEDdisplays – causes and measures
Error Possible cause Measures
Off No supply voltage connected to
the device
Hardware error
Check supply voltage
Contact Leuze customer service
(see chapter 12 "Service and sup-
port")
Green, flashing Device is being initialized
Red, flashing No barcode in the scanning
beam
No valid measurement value
Query BCB diagnostic data and
carry out the resulting measures
(see chapter 10.4 "Checklist for
causes of errors")
Red, continuous light Error
Device function is limited
Internal device error
Determine the cause of the device
error using the event log of the
webConfig diagnostics
Contact Leuze customer service
(see chapter 12 "Service and sup-
port")
Orange, continuous light Device in Service mode Reset the device to Process
mode using the webConfig tool
10.3 Error messages on the display
Via the optional display of the BPS, the device outputs the following possible error status information while
it has the BPS Info device status:
• System OK
BPS operating error-free.
• Warning
Warning message. Query device status using PROFINET module6.
• Error
Device function is not ensured.
BPS Info
System OK
Fig.10.2: Example: Device status/error status information on the display
