Technical data
Leuze electronic GmbH + Co. KG BPS 348i 115
13.3 Dimensioned drawings
1
2
2
all dimensions in mm
1 Reference point for the bar code position
2 Optical axis

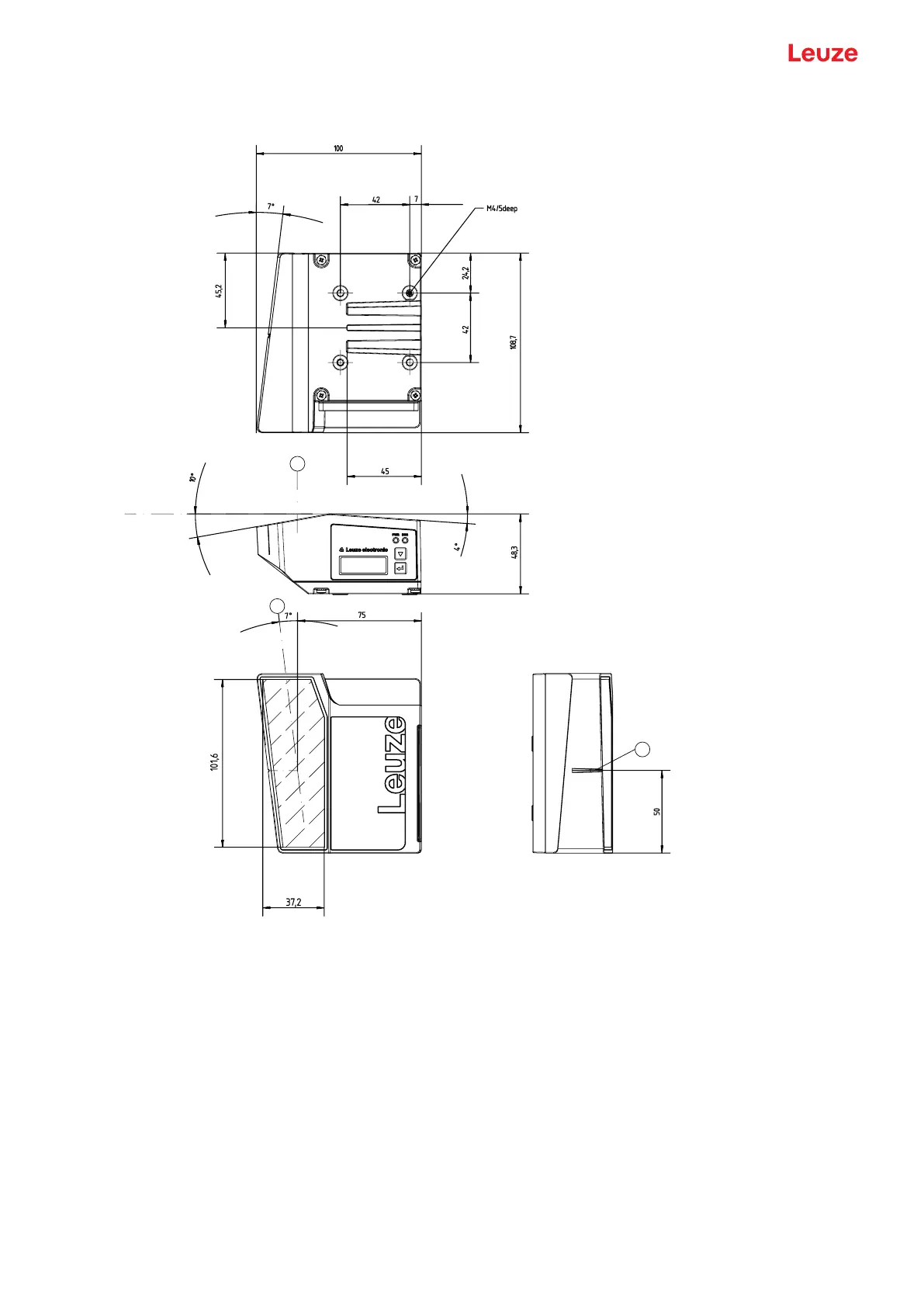

Fig.13.2: Dimensioned drawing BPS without connection hood
