Mounting
Leuze electronic GmbH + Co. KG BPS 348i 44
6.2.5 Mounting with BT56 mounting device
Mounting of the BPS with a BT56 mounting device is intended for rod mounting.
For ordering information see chapter 14 "Order guide and accessories"; for dimensioned drawing see chap-
ter 13.4 "Dimensioned drawings: Accessories".
Ä Mount the BT56 on the rod with the clamp profile (system-side).
Ä Mount the BPS with its fastening grooves on the clamping jaws of the BT56 with limit stop at end.
Ä Secure the BPS with the M6 screw terminal.
Maximum tightening torque for the M6 screw terminal: 8Nm
6.2.6 Mounting with BT300-1 mounting device
Mounting of the BPS with a BT300-1 mounting device is intended for rod mounting.
For ordering information see chapter 14 "Order guide and accessories"; for dimensioned drawing see chap-
ter 13.4 "Dimensioned drawings: Accessories".
Ä Mount the BT300-1 mounting device with the clamp profile on the rod (system-side).
Ä Mount the BPS on the mounting bracket of the BT300-1 with M4 fastening screws (included in delivery
contents).
Maximum tightening torque of the M4 fastening screws: 2Nm
6.2.7 Mounting with M4 fastening screws
all dimensions in mm

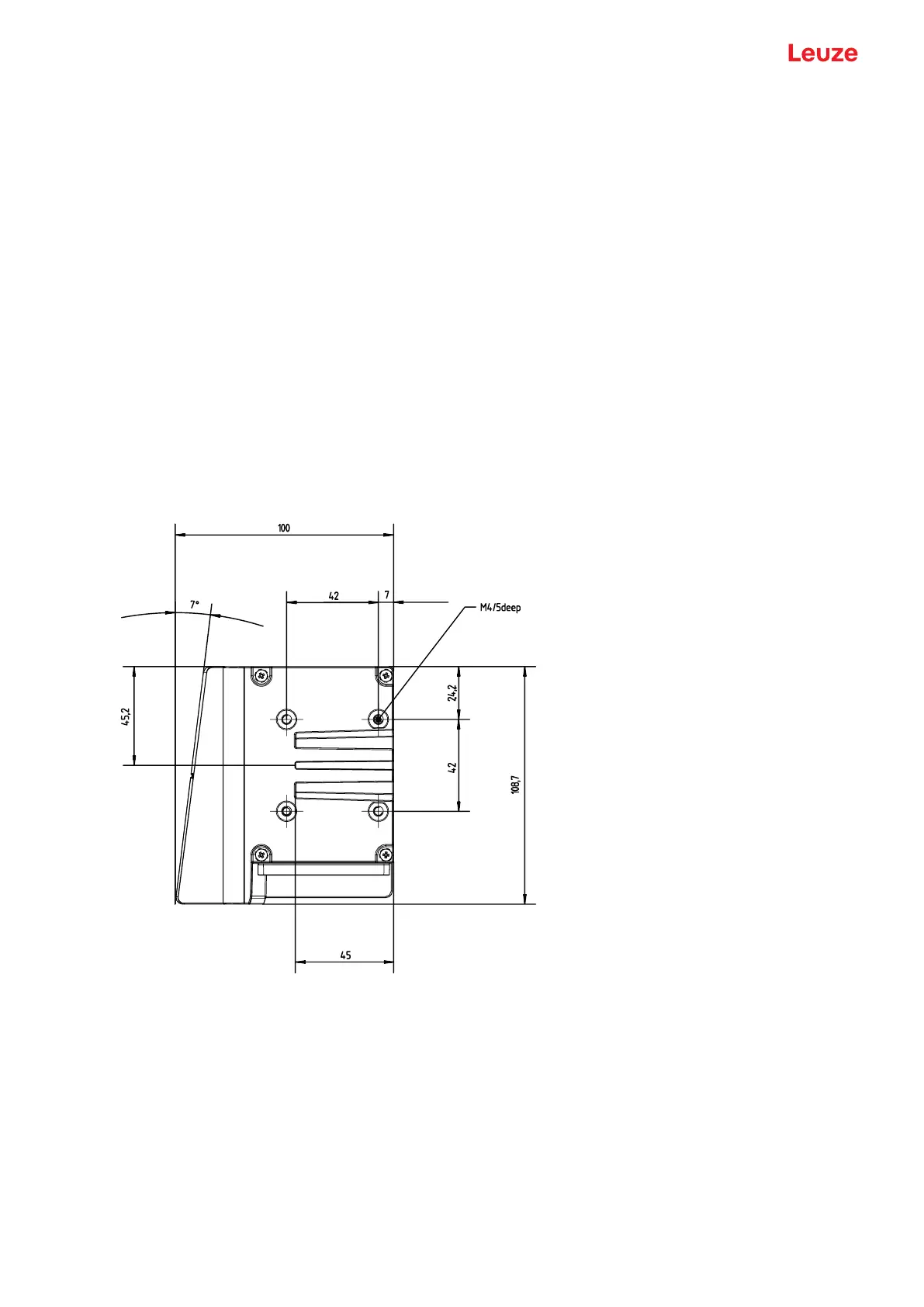

Fig.6.11: Dimensioned drawing of rear of BPS
Ä Mount the BPS on the system with M4 fastening screws (not included in delivery contents).
Maximum tightening torque of the fastening screws: 2Nm
